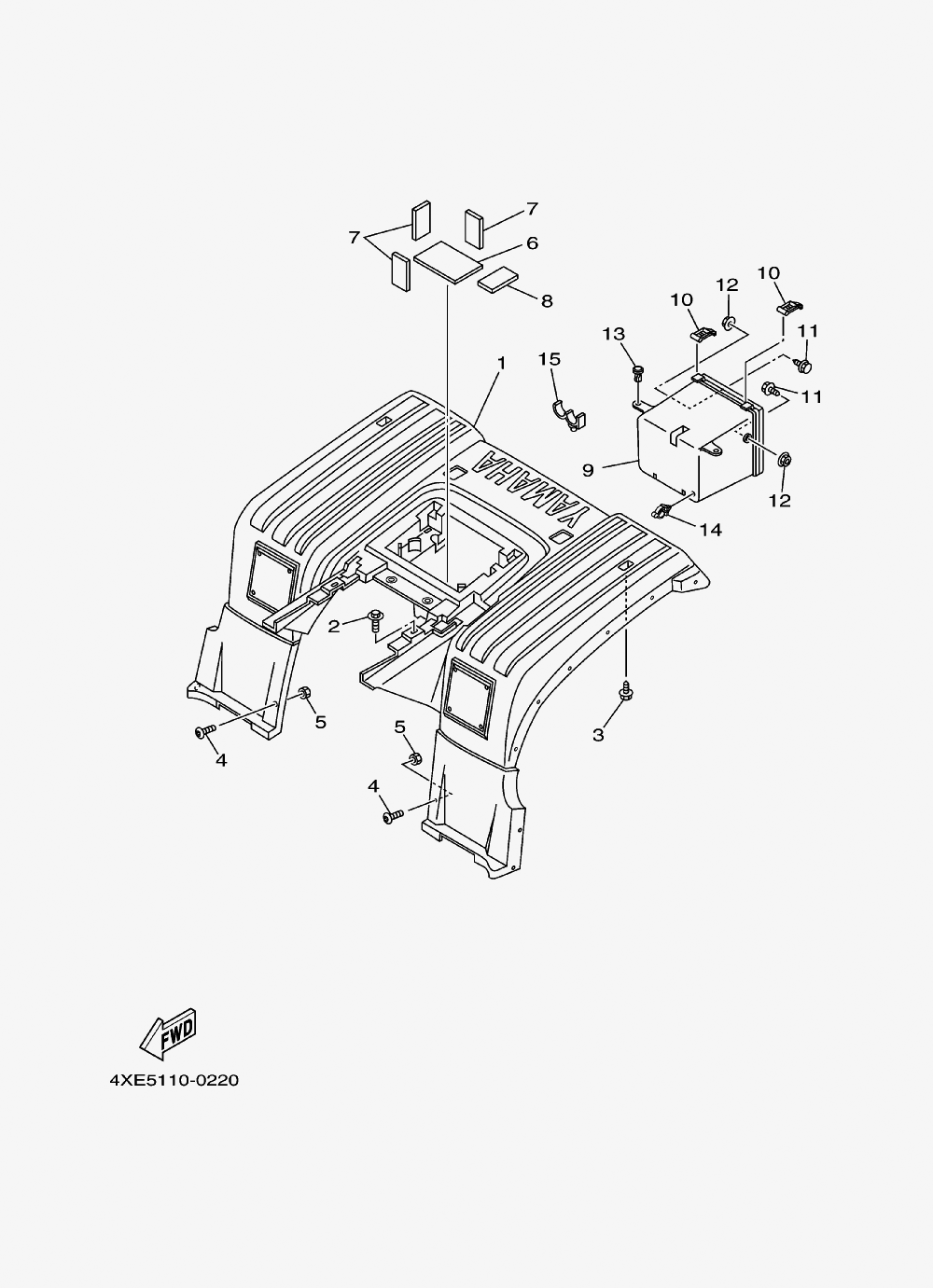

FENDER - REAR для Yamaha BEARTRACKER 2WD YFM250M (4XE5) - 2000 года выпуска
-
№АртикулНазвание
-
14XE-F1600-00-00 REAR FENDER ASSY (RTR)REAR FENDER ASSY (RTR)
-
14XE-F1600-10-00 REAR FENDER ASSY (PDG)REAR FENDER ASSY (PDG)
-
14XE-F1600-20-00 REAR FENDER ASSY (DNYS1)REAR FENDER ASSY (DNYS1)
-
290119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
595607-06100-00 NUT, UNUT, U
-
64BD-21639-00-00 DAMPER 2DAMPER 2
-
74XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
84XE-F1649-00-00 DAMPERDAMPER
-
94XE-F160A-00-00 BOX COMP.BOX COMP.
-
1059V-21646-00-00 BANDBAND
-
1190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1295707-06600-00 NUT, W/WASHERNUT, W/WASHER
-
1390269-08813-00 RIVET, PLASTIC MAT MARIVET, PLASTIC MAT MA
-
1490464-10833-00 CLAMPCLAMP
-
1590464-12830-00 CLAMPCLAMP
