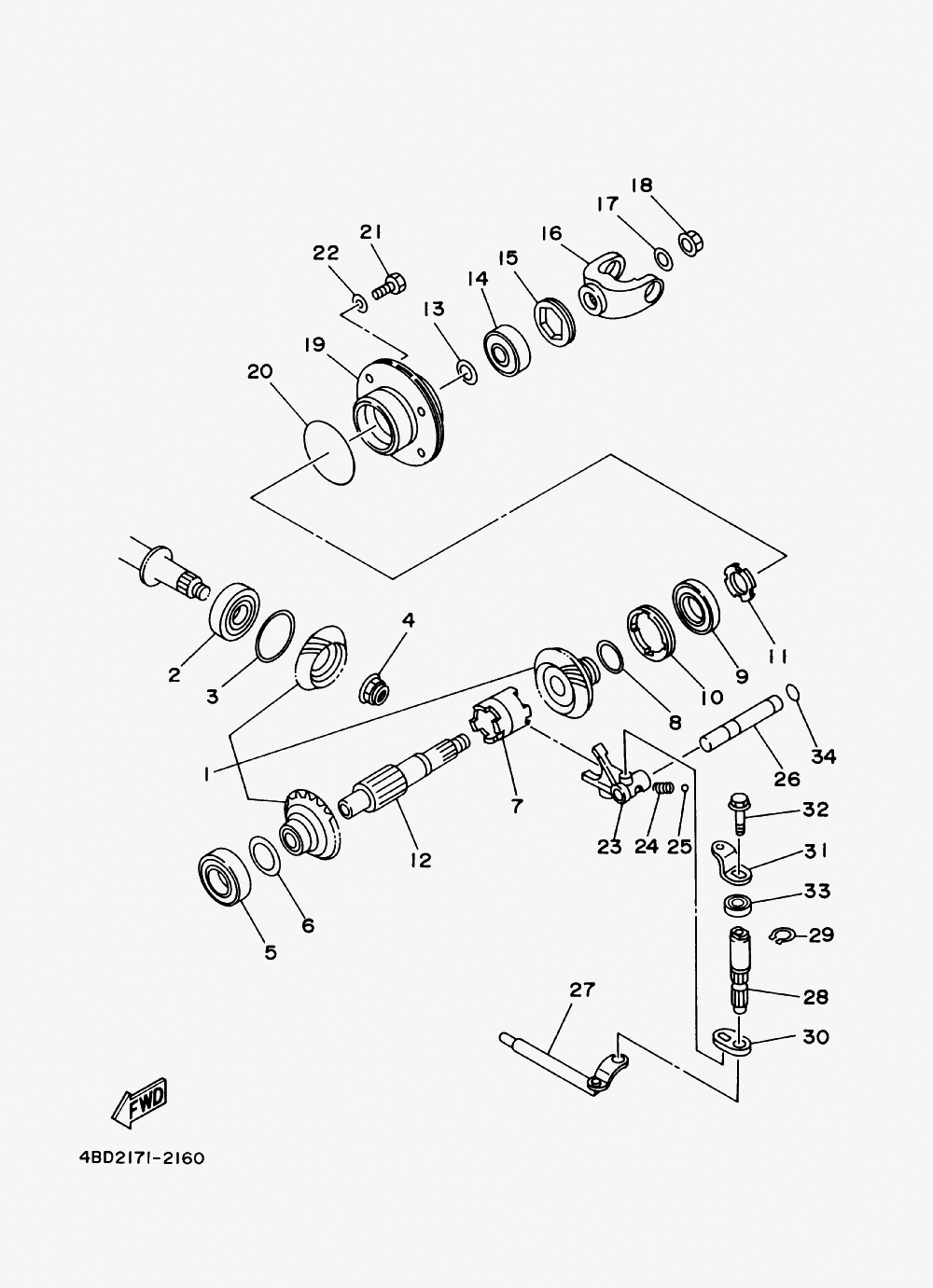

MIDDLE DRIVE GEAR для Yamaha BEARTRACKER 2WD YFM250M (4XE5) - 2000 года выпуска
-
№АртикулНазвание
-
152G-Y1754-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
293306-30432-00 BEARING (B6304)BEARING (B6304)
-
324W-17537-10-00 SHIM, THRUST (0.13T) (OPT)SHIM, THRUST (0.13T) (OPT)
-
324W-17537-20-00 SHIM, THRUST (0.15T) (OPT)SHIM, THRUST (0.15T) (OPT)
-
324W-17537-30-00 SHIM, THRUST (0.2T) (OPT)SHIM, THRUST (0.2T) (OPT)
-
324W-17537-40-00 SHIM, THRUST (0.3T) (OPT)SHIM, THRUST (0.3T) (OPT)
-
324W-17537-50-00 SHIM, THRUST (0.4T) (OPT)SHIM, THRUST (0.4T) (OPT)
-
324W-17537-60-00 SHIM, THRUST (0.5T) (OPT)SHIM, THRUST (0.5T) (OPT)
-
490179-16651-00 NUTNUT
-
593306-00612-00 BEARINGBEARING
-
652G-17531-01-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
652G-17531-11-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
652G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
652G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
652G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
652G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
752G-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
852G-17967-00-15 SHIM, (0.15T) (OPT)SHIM, (0.15T) (OPT)
-
852G-17967-00-20 SHIM, (0.2T) (OPT)SHIM, (0.2T) (OPT)
-
852G-17967-00-30 SHIM, (O.3T) (OPT)SHIM, (O.3T) (OPT)
-
852G-17967-00-40 SHIM, (0.4T) (OPT)SHIM, (0.4T) (OPT)
-
852G-17967-00-50 SHIM, (O.5T) (OPT)SHIM, (O.5T) (OPT)
-
993306-07801-00 BEARINGBEARING
-
1090179-55464-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1190179-28465-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
121EV-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
1352G-17968-00-10 SHIM, (1.0T) (OPT)SHIM, (1.0T) (OPT)
-
1352G-17968-00-11 SHIM, (1.1T) (OPT)SHIM, (1.1T) (OPT)
-
1352G-17968-00-12 SHIM, (1.2T) (OPT)SHIM, (1.2T) (OPT)
-
1352G-17968-00-13 SHIM, (1.3T) (OPT)SHIM, (1.3T) (OPT)
-
1352G-17968-00-14 SHIM, (1.4T) (OPT)SHIM, (1.4T) (OPT)
-
1352G-17968-00-15 SHIM, (1.5T) (OPT)SHIM, (1.5T) (OPT)
-
1352G-17968-00-16 SHIM, (1.6T) (OPT)SHIM, (1.6T) (OPT)
-
1352G-17968-00-17 SHIM, (1.7T) (OPT)SHIM, (1.7T) (OPT)
-
1352G-17968-00-18 SHIM, (1.8T) (OPT)SHIM, (1.8T) (OPT)
-
1352G-17968-00-19 SHIM, (1.9T) (OPT)SHIM, (1.9T) (OPT)
-
1493399-99917-00 BEARING, SPECIALBEARING, SPECIAL
-
1590179-50467-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
164BD-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1790201-125F7-00 WASHER, PLATEWASHER, PLATE
-
1890179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
191EV-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2093210-56589-00 O-RINGO-RING
-
2197027-08025-00 BOLTBOLT
-
2292907-08600-00 WASHER, PLATEWASHER, PLATE
-
2352G-18514-02-00 FORK, SHIFT 4FORK, SHIFT 4
-
2490501-101A5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2593501-04011-00 BALL 1/4BALL 1/4
-
2652G-18534-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
273GC-1812A-00-00 STOPPER SHAFT ASSYSTOPPER SHAFT ASSY
-
283GC-18197-00-00 SHAFTSHAFT
-
2999009-14400-00 CIRCLIPCIRCLIP
-
303GC-18451-00-00 LEVER, SHIFTLEVER, SHIFT
-
3152G-18198-00-00 LEVERLEVER
-
3295817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3393102-14209-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
3493210-09165-00 O-RINGO-RING
