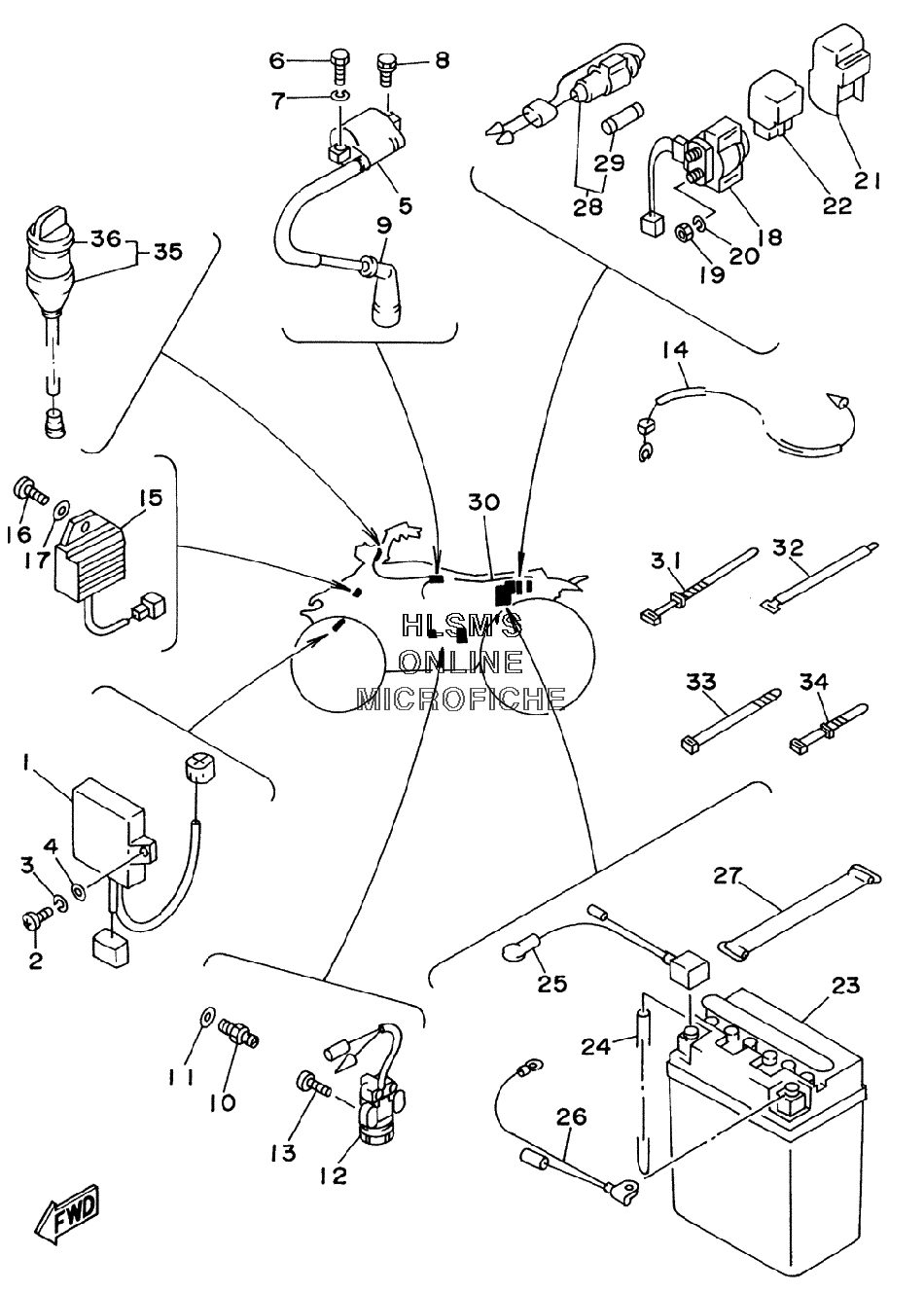

ELECTRICAL для Yamaha BREEZE YFA1M (3FAR) - 2000 года выпуска
-
№АртикулНазвание
-
13FA-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
54KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697007-06020-00 BOLTBOLT
-
792907-06100-00 WASHER, SPRINGWASHER, SPRING
-
890109-06723-00 BOLTBOLT
-
91UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
102H7-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
104KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1190430-10148-00 GASKETGASKET
-
123FA-82627-00-00 SWITCHSWITCH
-
1390149-05283-00 SCREWSCREW
-
143FA-82541-00-00 WIRE, LEADWIRE, LEAD
-
153GB-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
184KD-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1995307-06700-00 NUTNUT
-
2092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2129U-81950-93-00 STARTER CIRCUIT RELAYSTARTER CIRCUIT RELAY
-
222NL-81950-92-00 RELAY ASSYRELAY ASSY
-
233FA-82110-12-00 BATTERY ASSYBATTERY ASSY
-
2490445-08338-00 HOSEHOSE
-
253FA-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
263FA-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
27133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
283GB-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
293GB-82151-00-00 ...FUSE (5A)...FUSE (5A)
-
303FA-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
313TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
32341-26397-01-00 BANDBAND
-
3390465-10098-00 CLAMPCLAMP
-
34437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
354GB-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
363HN-82579-00-00 ...CAP, KEY...CAP, KEY
