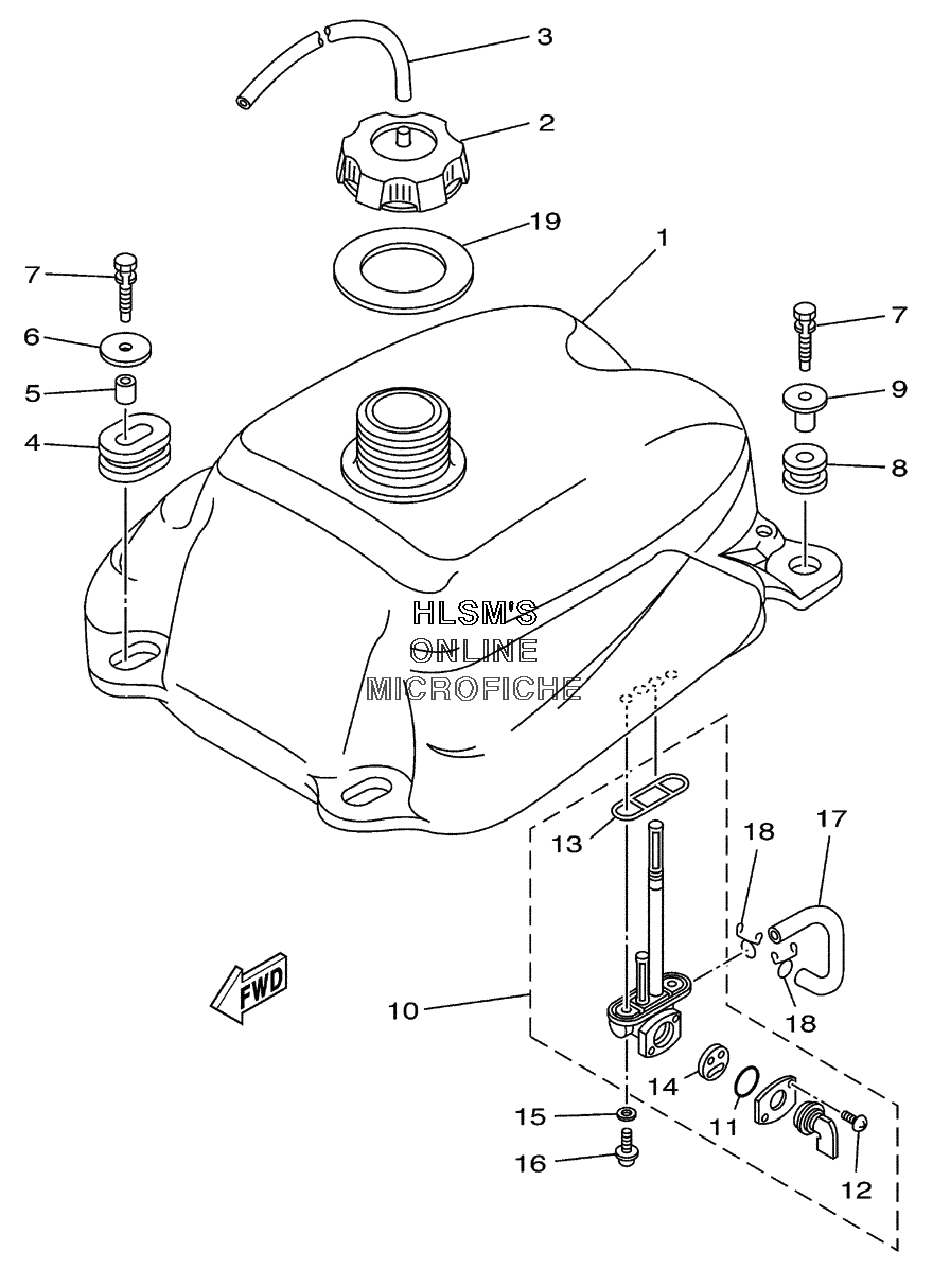

FUEL TANK для Yamaha BREEZE YFA1M (3FAR) - 2000 года выпуска
-
№АртикулНазвание
-
13FA-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
22FJ-24610-00-00 CAP ASSYCAP ASSY
-
390445-09304-00 HOSEHOSE
-
490480-01400-00 GROMMETGROMMET
-
590387-07598-00 COLLARCOLLAR
-
690201-060L5-00 WASHER, PLATEWASHER, PLATE
-
790119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890480-18290-00 GROMMETGROMMET
-
990387-066H4-00 COLLARCOLLAR
-
1055W-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
113AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1297801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
134X8-24512-00-00 ...O-RING...O-RING
-
143AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1590202-05193-00 WASHER, PLATEWASHER, PLATE
-
1690149-06011-00 SCREWSCREW
-
1790445-10456-00 HOSEHOSE
-
1890467-09006-00 CLIPCLIP
-
193FA-2414A-00-00 COVER, FILLERCOVER, FILLER
