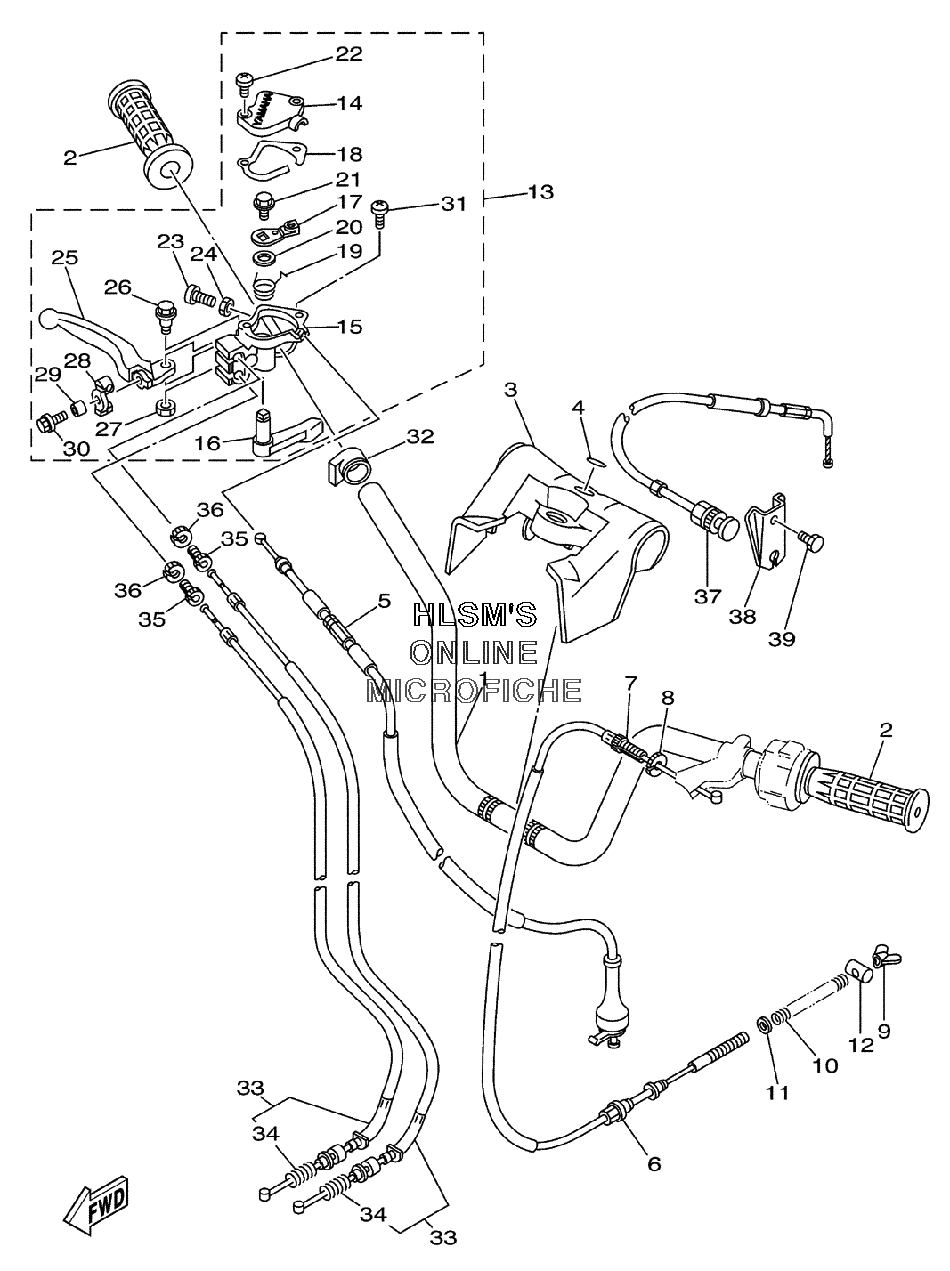

STEERING HANDLE - CABLE для Yamaha BREEZE YFA1M (3FAR) - 2000 года выпуска
-
№АртикулНазвание
-
13FA-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
33FA-26124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
53FA-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
63FA-26351-02-00 CABLE, BRAKECABLE, BRAKE
-
790123-08046-00 BOLTBOLT
-
890179-08148-00 NUTNUT
-
990175-06013-00 NUT, WINGNUT, WING
-
1090501-122E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1190202-08175-00 WASHER, PLATEWASHER, PLATE
-
1290249-12008-00 PINPIN
-
133GB-26250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
143GB-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
153GB-2625E-01-00 ...BODY, THROTTLE...BODY, THROTTLE
-
163GB-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
173GB-2625H-00-00 ...ARM, THROTTLE...ARM, THROTTLE
-
183GB-2628G-01-00 ...GASKET...GASKET
-
1990508-10775-00 ...SPRING, TORSION...SPRING, TORSION
-
2090201-145M4-00 ...WASHER, PLATE...WASHER, PLATE
-
2195807-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2298507-04016-00 ... SCREW, PAN HEAD... SCREW, PAN HEAD
-
2398507-05020-00 ... SCREW, PAN HEAD... SCREW, PAN HEAD
-
2495307-05700-00 ... NUT... NUT
-
253GB-83922-00-00 ... LEVER 2... LEVER 2
-
2690109-061F3-00 ... BOLT... BOLT
-
2795607-06100-00 ... NUT, U... NUT, U
-
283GB-26347-00-00 ... JOINT, CABLE... JOINT, CABLE
-
2990387-066V8-00 ... COLLAR... COLLAR
-
3095807-06016-00 ... BOLT, FLANGE... BOLT, FLANGE
-
3198507-06020-00 ... SCREW, PAN HEAD... SCREW, PAN HEAD
-
323FA-26147-00-00 BOOT, HANDLEBARBOOT, HANDLEBAR
-
333GB-26361-03-00 CABLE, BRAKECABLE, BRAKE
-
3490501-08511-00 ... SPRING, COMPRESSION... SPRING, COMPRESSION
-
3590123-08106-00 BOLTBOLT
-
3690179-08148-00 NUTNUT
-
373FA-26331-01-00 CABLE, STARTER 1CABLE, STARTER 1
-
383FA-26393-00-00 HOLDERHOLDER
-
3995827-06010-00 BOLT, FLANGEBOLT, FLANGE
