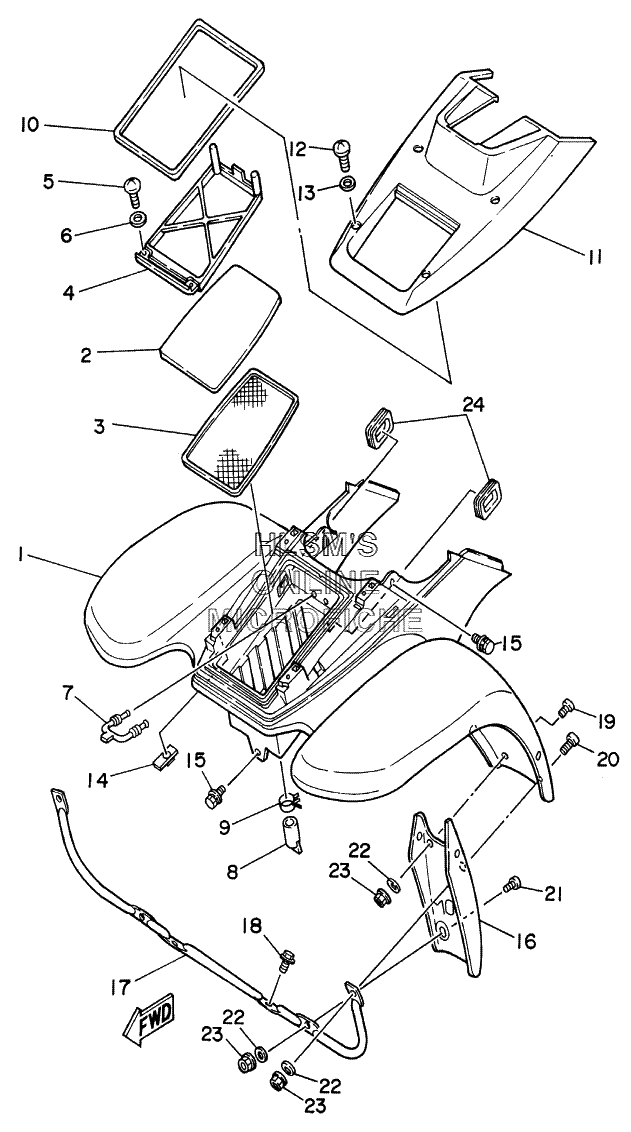

FENDER - FRONT для Yamaha BADGER YFM80NC CALIFORNIA (4EMY) - 2001 года выпуска
-
№АртикулНазвание
-
14EM-W2151-71-00 FRONT FENDER COMP (583) (DEEP PURPLISH BLUE SOLID E)FRONT FENDER COMP (583) (DEEP PURPLISH BLUE SOLID E)
-
14EM-W2151-81-00 FRONT FENDER COMP (OKO) (PASTEL DEEP GREEN)FRONT FENDER COMP (OKO) (PASTEL DEEP GREEN)
-
255X-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
355X-14472-01-00 PLATE, ELEMENTPLATE, ELEMENT
-
455X-14458-00-00 GUIDEGUIDE
-
597707-40116-00 SCREW, TAPPINGSCREW, TAPPING
-
692907-04200-00 WASHERWASHER
-
755X-14436-00-00 HOOKHOOK
-
859V-14457-00-00 SEALSEAL
-
990467-22080-00 CLIPCLIP
-
102HX-14452-00-00 SEALSEAL
-
112HX-21551-00-00 FENDER, OVER (BLACK)FENDER, OVER (BLACK)
-
1298507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-05600-00 WASHER, PLATEWASHER, PLATE
-
1455X-21535-00-00 NUT 1NUT 1
-
1590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
162HX-21521-01-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
173GB-21513-00-00 STAY, FENDERSTAY, FENDER
-
1895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1990154-05005-00 SCREW, BINDINGSCREW, BINDING
-
2090154-05052-00 SCREW, BINDINGSCREW, BINDING
-
2190154-05005-00 SCREW, BINDINGSCREW, BINDING
-
2290201-05029-00 WASHER, PLATEWASHER, PLATE
-
2395707-05300-00 NUT, FLANGENUT, FLANGE
-
242HX-14437-01-00 DUCTDUCT
