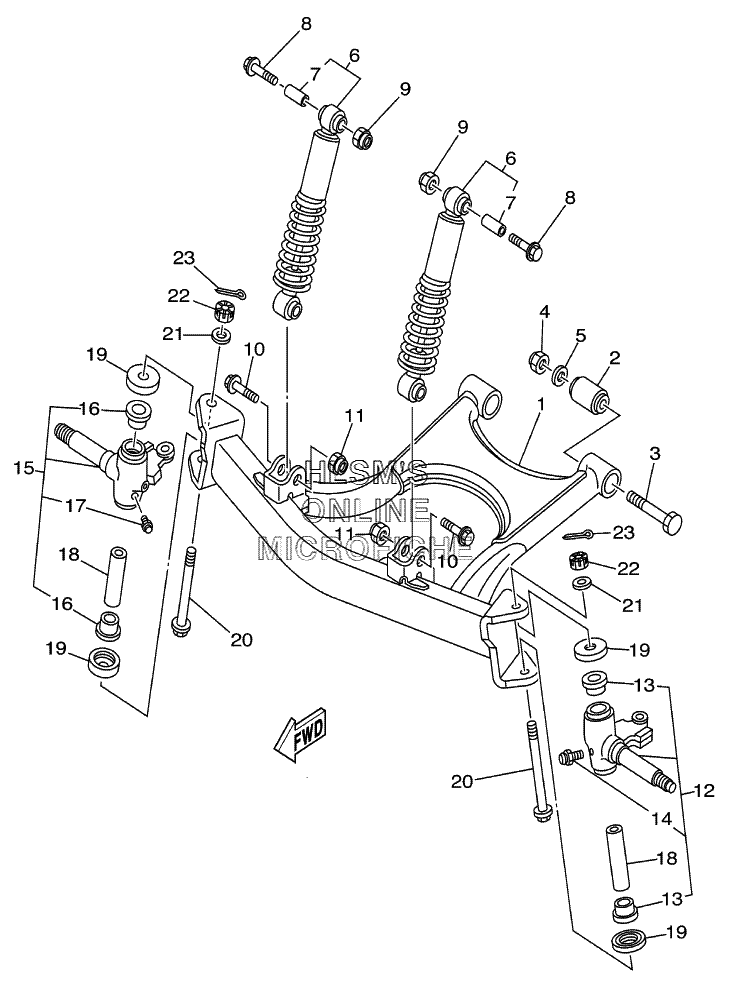

SUSPENSION - FRONT для Yamaha BADGER YFM80NC CALIFORNIA (4EMY) - 2001 года выпуска
-
№АртикулНазвание
-
13GB-23570-00-33 FRONT LOWER ARM COMPFRONT LOWER ARM COMP
-
2307-22123-00-00 BUSHBUSH
-
390101-12498-00 BOLTBOLT
-
490185-12046-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-12688-00 WASHER, PLATEWASHER, PLATE
-
62HX-23350-00-33 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
75M0-22253-00-00 ...COLLAR, DISTANCE...COLLAR, DISTANCE
-
890105-10561-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-12460-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190185-12046-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
123GB-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1390381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
153GB-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
183GB-23448-00-00 SPACERSPACER
-
192NL-23517-00-00 COVER, THRUSTCOVER, THRUST
-
2090109-104A8-00 BOLTBOLT
-
2190201-08759-00 WASHER, PLATEWASHER, PLATE
-
2290171-10004-00 NUT, CASTLENUT, CASTLE
-
2391401-20020-00 PIN, COTTERPIN, COTTER
