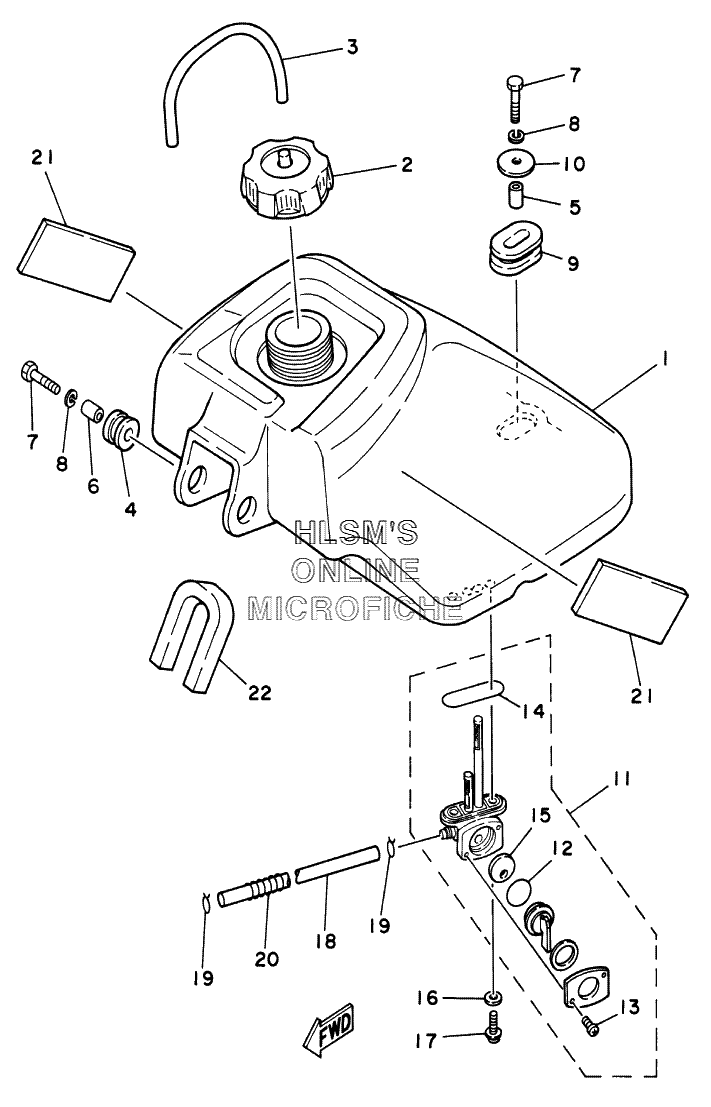

FUEL TANK для Yamaha BADGER YFM80NC CALIFORNIA (4EMY) - 2001 года выпуска
-
№АртикулНазвание
-
12HX-24110-00-00 FUEL TANK COMPFUEL TANK COMP
-
22FJ-24610-00-00 CAP ASSYCAP ASSY
-
390445-084J1-00 HOSE (L420)HOSE (L420)
-
490480-18290-00 GROMMETGROMMET
-
590387-07598-00 COLLARCOLLAR
-
690387-066J1-00 COLLARCOLLAR
-
797027-06030-00 BOLT,HEXAGONBOLT,HEXAGON
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
990480-01400-00 GROMMETGROMMET
-
1090201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1155X-24500-01-00 FUEL COCK ASSYFUEL COCK ASSY
-
123AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1397801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
144X8-24512-00-00 ...O-RING...O-RING
-
153AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1690202-05193-00 WASHER, PLATEWASHER, PLATE
-
1790149-06011-00 SCREWSCREW
-
1890445-10638-00 HOSE (L145)HOSE (L145)
-
1990467-09006-00 CLIPCLIP
-
2090504-06030-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2112R-21747-00-00 SEAT,BATTERYSEAT,BATTERY
-
222HX-24181-00-00 DAMPERDAMPER
