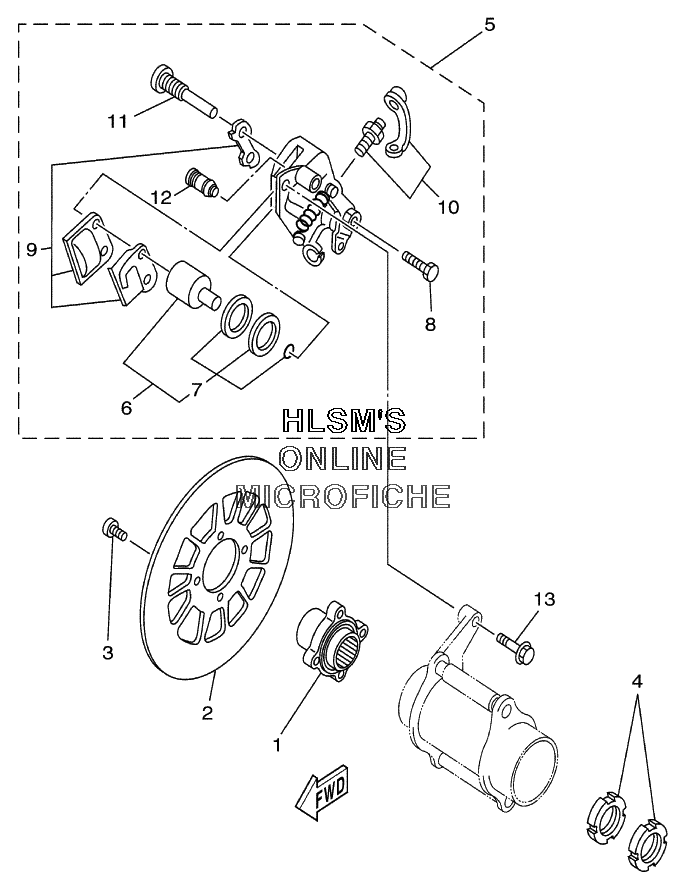

BRAKE - REAR CALIPER для Yamaha WARRIOR YFM350XNC CALIFORNIA (5NF1) - 2001 года выпуска
-
№АртикулНазвание
-
12XK-25712-00-00 BRACKET, DISCBRACKET, DISC
-
23GD-2582W-00-00 DISC, REAR BRAKEDISC, REAR BRAKE
-
390109-081F0-00 BOLTBOLT
-
490170-38377-00 NUTNUT
-
51UY-2580W-00-00 CALIPER ASSEMBLY, REARCALIPER ASSEMBLY, REAR
-
61UY-W0057-50-00 ...PISTON ASSEMBLY, CALIPER...PISTON ASSEMBLY, CALIPER
-
71UY-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-25972-51-00 ...ADJUST BOLT...ADJUST BOLT
-
91UY-W0046-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
101UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
111UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
121UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
1390105-08440-00 BOLT, WASHER BASEDBOLT, WASHER BASED
