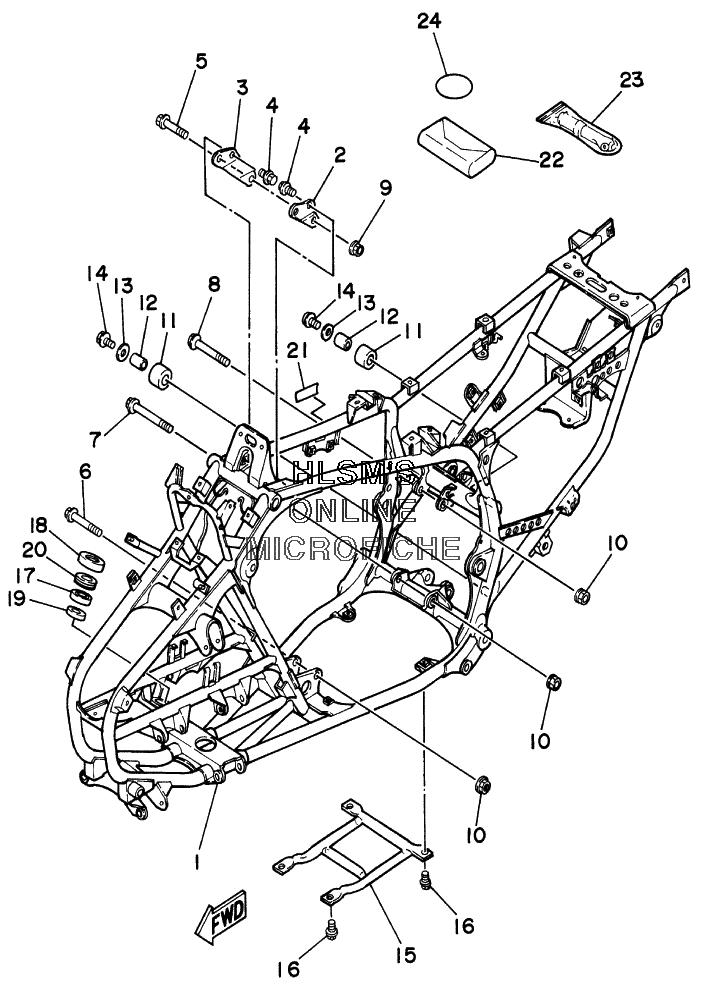

FRAME для Yamaha WARRIOR YFM350XNC CALIFORNIA (5NF1) - 2001 года выпуска
-
№АртикулНазвание
-
13GD-21110-22-35 FRAME COMPFRAME COMP
-
21UY-21315-00-00 STAY, ENGINESTAY, ENGINE
-
31UY-21316-00-00 STAY, ENGINESTAY, ENGINE
-
495817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
595817-08055-00 BOLT, FLANGEBOLT, FLANGE
-
690105-10323-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790105-10409-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890105-10480-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990179-08577-00 NUTNUT
-
1095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1130X-22178-00-00 TENSIONERTENSIONER
-
124V4-22184-00-00 BUSHBUSH
-
1390201-08753-00 WASHER, PLATEWASHER, PLATE
-
1495827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
151UY-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
1695827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1793306-20331-00 BEARINGBEARING
-
1893102-25081-00 OIL SEALOIL SEAL
-
1993102-25099-00 OIL SEALOIL SEAL
-
202GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
211UY-26137-00-00 LABELLABEL
-
222XK-28100-00-00 TOOL KITTOOL KIT
-
231NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
2493210-41041-00 O-RINGO-RING
