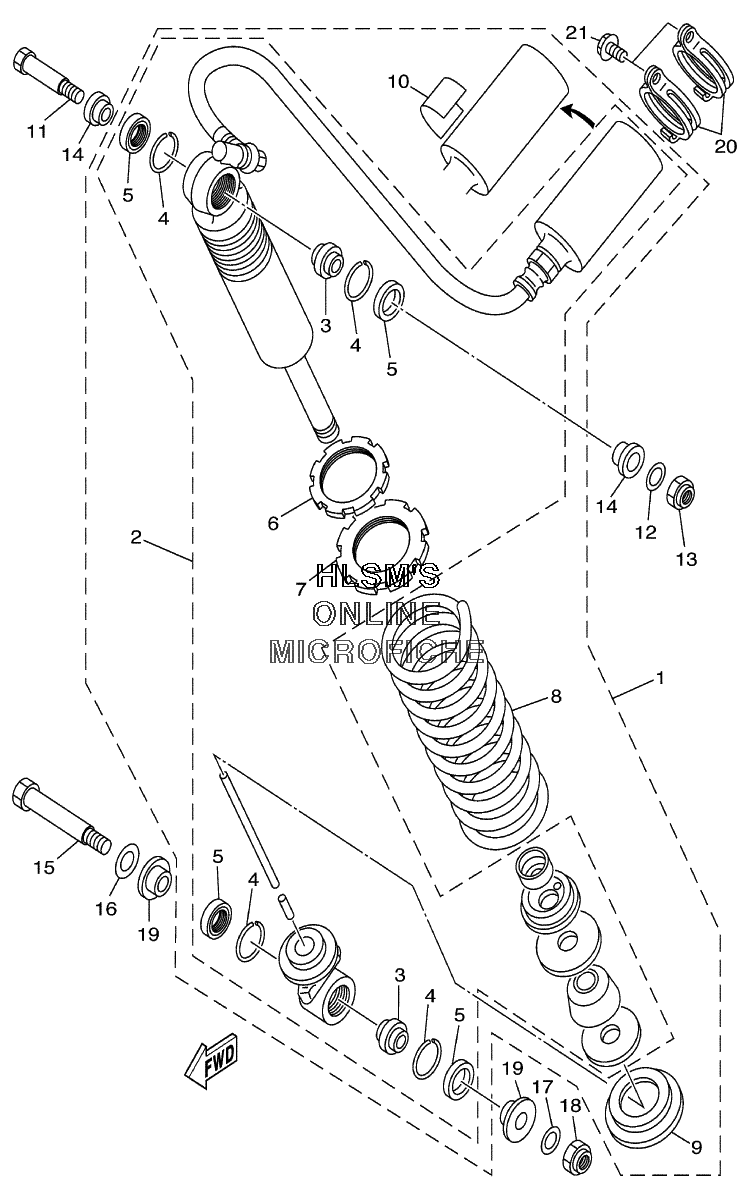

SUSPENSION - REAR SHOCK ABSORBER для Yamaha WARRIOR YFM350XNC CALIFORNIA (5NF1) - 2001 года выпуска
-
№АртикулНазвание
-
12XK-22210-10-36 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
22XK-22201-00-00 ...DAMPER SUB ASSY...DAMPER SUB ASSY
-
393399-99916-00 ......BEARING......BEARING
-
493440-30113-00 ......CIRCLIP......CIRCLIP
-
593104-18077-00 ......OIL SEAL......OIL SEAL
-
61RK-22215-00-00 ......RING, COVER......RING, COVER
-
738W-22223-00-00 ......SEAT, SPRING LOWER......SEAT, SPRING LOWER
-
838W-22212-10-36 ...SPRING...SPRING
-
922W-22214-01-00 ...GUIDE, SPRING...GUIDE, SPRING
-
104AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
1190109-10704-00 BOLTBOLT
-
1290201-10430-00 WASHER, PLATEWASHER, PLATE
-
1390185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-127G8-00 COLLARCOLLAR
-
1590109-102A6-00 BOLTBOLT
-
1690201-120E6-00 WASHER, PLATEWASHER, PLATE
-
1790201-100E9-00 WASHER, PLATEWASHER, PLATE
-
1890185-10120-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990387-126H8-00 COLLARCOLLAR
-
201UY-22262-00-00 HOLDER, SUB TANKHOLDER, SUB TANK
-
2195827-06016-00 BOLT, FLANGEBOLT, FLANGE
