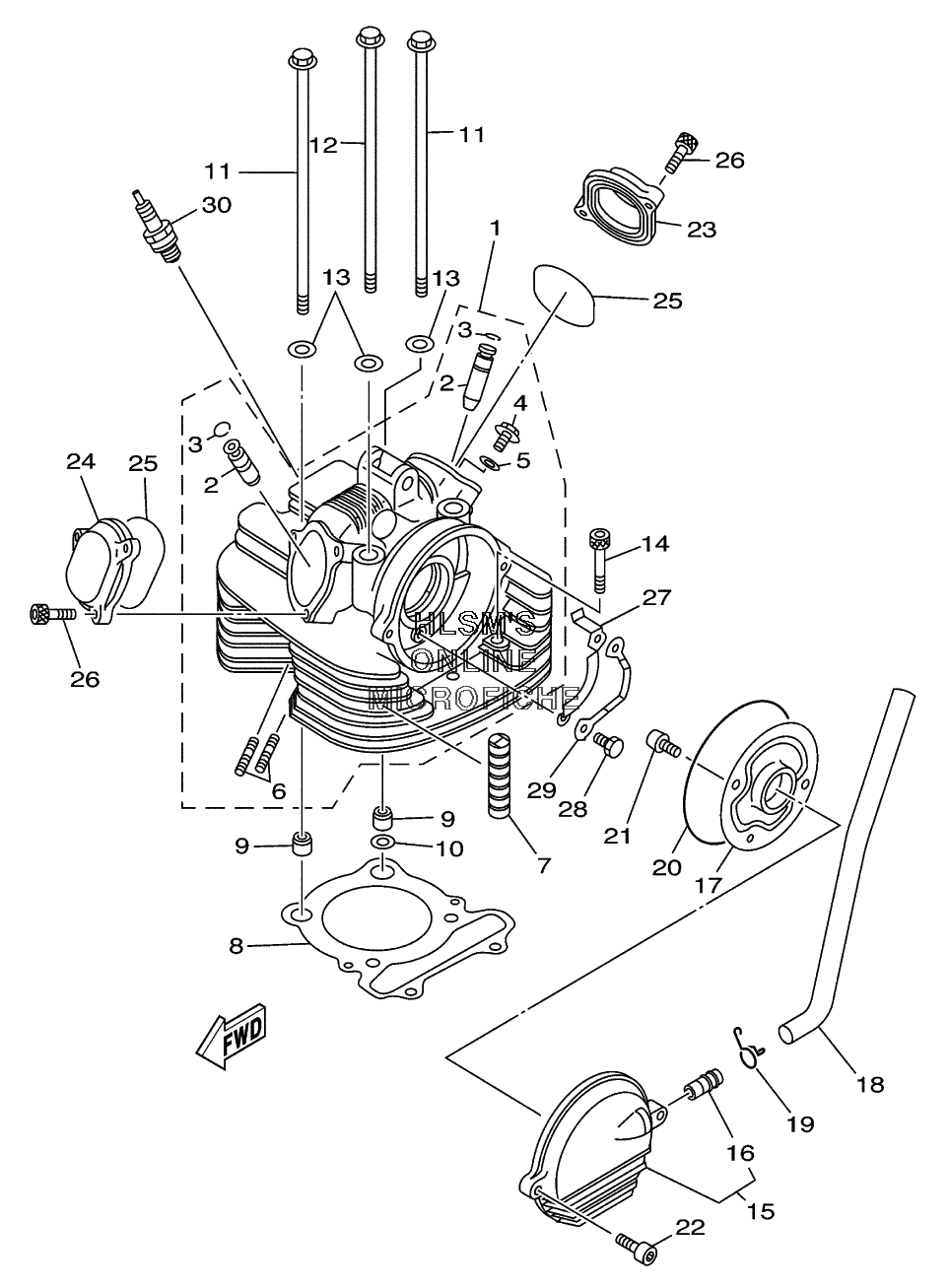

CYLINDER HEAD для Yamaha BIG BEAR 400 4X4 YFM400FP (5FUA) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-11110-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-12052-00 ......CIRCLIP......CIRCLIP
-
490401-06001-00 ...BOLT, UNION...BOLT, UNION
-
590430-06192-00 ...GASKET...GASKET
-
690116-06503-00 ...BOLT, STUD...BOLT, STUD
-
73Y1-11127-00-00 ABSORBER 3ABSORBER 3
-
81UY-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
999530-14016-00 PIN, DOWELPIN, DOWEL
-
1090430-14240-00 GASKETGASKET
-
1190105-10684-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-10685-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-10128-00 WASHER, PLATEWASHER, PLATE
-
1491317-08050-00 BOLTBOLT
-
154WU-11160-00-00 BREATHER ASSYBREATHER ASSY
-
16371-11167-01-00 ...PIPE, BREATHER 2...PIPE, BREATHER 2
-
174KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
185FU-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-14015-00 CLIPCLIP
-
2093211-06635-00 O-RINGO-RING
-
2192017-06012-00 BOLT, SCREW HEADBOLT, SCREW HEAD
-
2291317-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
232NL-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
242NL-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2593210-57634-00 O-RINGO-RING
-
2691317-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
273Y1-1111F-00-00 PLATEPLATE
-
2897007-06012-00 BOLTBOLT
-
2990215-06162-00 WASHER, LOCKWASHER, LOCK
-
30NGK-DR8EA-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
