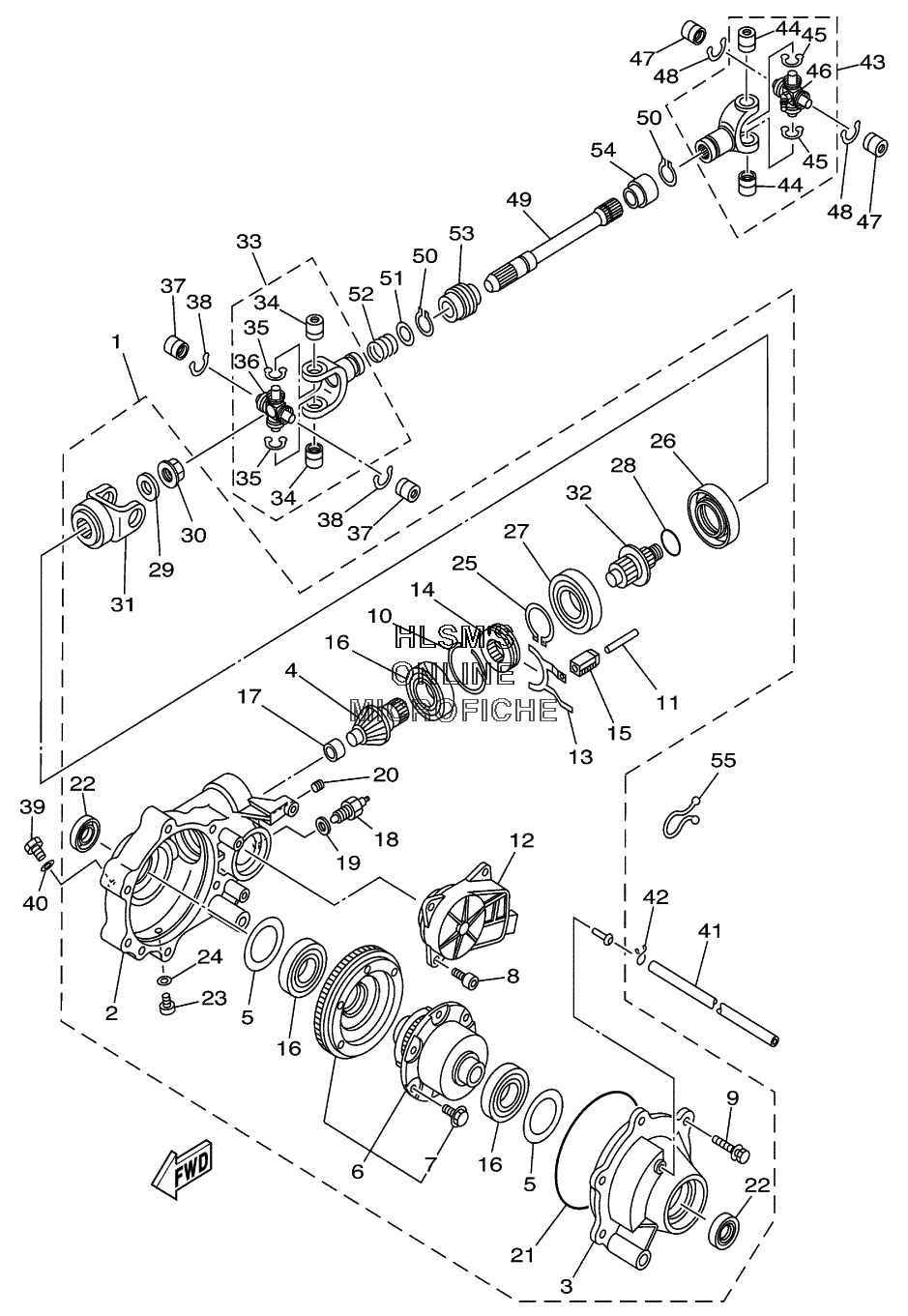

DIFFERENTIAL - FRONT W/ DRIVE AXLE для Yamaha BIG BEAR 400 4X4 YFM400FP (5FUA) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-46160-00-00 FRONT AXLE GEAR CASE COMPFRONT AXLE GEAR CASE COMP
-
25GH-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35GH-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
45GH-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
54WV-46119-00-00 ......SHIM, THRUST (0.1THICKNESS) (OPT)......SHIM, THRUST (0.1THICKNESS) (OPT)
-
54WV-46119-10-00 ......SHIM, THRUST (0.2THICKNESS) (OPT)......SHIM, THRUST (0.2THICKNESS) (OPT)
-
54WV-46119-20-00 ......SHIM, THRUST (0.3THICKNESS) (OPT)......SHIM, THRUST (0.3THICKNESS) (OPT)
-
54WV-46119-30-00 ......SHIM, THRUST (0.4THICKNESS) (OPT)......SHIM, THRUST (0.4THICKNESS) (OPT)
-
54WV-46119-50-00 ......SHIM, THRUST (1.0THICKNESS) (OPT)......SHIM, THRUST (1.0THICKNESS) (OPT)
-
54WV-46119-60-00 ......SHIM, THRUST (1.5THICKNESS) (OPT)......SHIM, THRUST (1.5THICKNESS) (OPT)
-
54WV-46119-40-00 ......SHIM, THRUST (0.5THICKNESS) (OPT)......SHIM, THRUST (0.5THICKNESS) (OPT)
-
65GH-46470-01-00 ...LIMITED SLIP DIFFASSY...LIMITED SLIP DIFFASSY
-
74WV-46155-00-00 ......BOLT......BOLT
-
891317-08020-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
94WV-46159-00-00 ......BOLT 3......BOLT 3
-
104WV-46143-00-00 ......RING,HOLE SNAP 2......RING,HOLE SNAP 2
-
115GH-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
125GH-4616A-01-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
135GH-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
144WV-46441-00-00 ...CLUTCH,DRIVEN...CLUTCH,DRIVEN
-
155GH-18319-00-00 ...SHAFT 2...SHAFT 2
-
164WV-46165-00-00 ...BEARING 2...BEARING 2
-
174WV-46167-00-00 ......BEARING 4......BEARING 4
-
183GD-82540-11-00 ...REVERSE SWITCH...REVERSE SWITCH
-
194WV-46132-00-00 ...GASKET 1...GASKET 1
-
2090113-08004-00 ......BOLT, SET......BOLT, SET
-
2193211-40040-00 ......O-RING......O-RING
-
2293102-24034-00 ......OIL SEAL......OIL SEAL
-
2390340-10001-00 ......PLUG, STRAIGHT SCREW......PLUG, STRAIGHT SCREW
-
2490430-10003-00 ......GASKET......GASKET
-
2593450-71142-00 ...CIRCLIP...CIRCLIP
-
2693102-50030-00 ...OIL SEAL...OIL SEAL
-
2793316-00801-00 ...BEARING...BEARING
-
285FU-46134-00-00 ...O-RING 1...O-RING 1
-
2990201-14633-00 ......WASHER, PLATE......WASHER, PLATE
-
304WV-46145-00-00 ......NUT 1......NUT 1
-
315FU-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
325FU-46121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
335FU-46108-00-00 CROSS JOINT COMP3CROSS JOINT COMP3
-
3493399-99948-00 ...BEARING...BEARING
-
3593440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
365GT-46187-00-00 ......SPIDER......SPIDER
-
3793399-99948-00 BEARINGBEARING
-
3893440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
40214-11198-01-00 GASKETGASKET
-
4190445-078C4-00 HOSEHOSE
-
4290467-06016-00 CLIPCLIP
-
435FU-46108-00-00 CROSS JOINT COMP3CROSS JOINT COMP3
-
4493399-99948-00 ...BEARING...BEARING
-
4593440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
465GT-46187-00-00 ......SPIDER......SPIDER
-
4793399-99948-00 BEARINGBEARING
-
4893440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
495FU-G6173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
5099009-19400-00 CIRCLIPCIRCLIP
-
5190201-20266-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
-
5290501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
535GT-46136-00-00 SEAL 1SEAL 1
-
545GT-46137-00-00 SEAL 2SEAL 2
-
5590464-14800-00 CLAMPCLAMP
