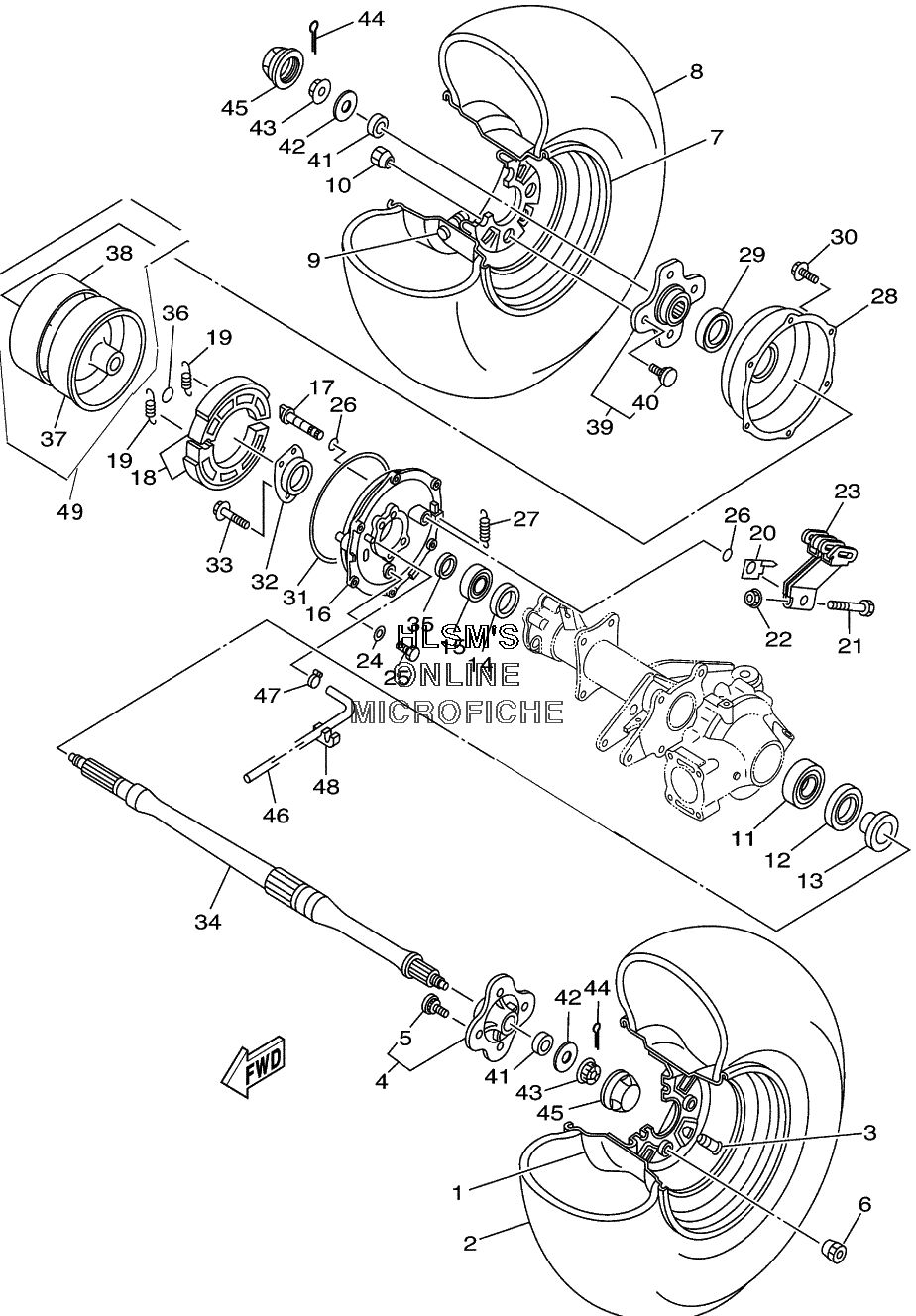

WHEEL - REAR W/ AXLE - BRAKE для Yamaha BIG BEAR 400 4X4 YFM400FP (5FUA) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-F5390-01-00 REAR WHEEL COMPREAR WHEEL COMP
-
294110-128Y1-00 TIRE (AT25 X 10-12) (OPT)TIRE (AT25 X 10-12) (OPT)
-
294110-128Y5-00 TIRE (AT25 X 10-12) (OPT)TIRE (AT25 X 10-12) (OPT)
-
393900-00812-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
393900-00813-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
42HR-25383-01-00 COLLAR, WHEELCOLLAR, WHEEL
-
590114-10010-00 ......BOLT, SERRATION......BOLT, SERRATION
-
690179-10540-00 NUTNUT
-
75FU-F5390-01-00 REAR WHEEL COMPREAR WHEEL COMP
-
894110-128Y1-00 TIRE (AT25 X 10-12) (OPT)TIRE (AT25 X 10-12) (OPT)
-
894110-128Y5-00 TIRE (AT25 X 10-12) (OPT)TIRE (AT25 X 10-12) (OPT)
-
993900-00812-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
993900-00813-00 VALVE, RIM (OPT)VALVE, RIM (OPT)
-
1090179-10540-00 NUTNUT
-
1193306-008Y0-00 BEARINGBEARING
-
1293106-47040-00 OIL SEALOIL SEAL
-
134SH-25367-01-00 COVER, HUB DUSTCOVER, HUB DUST
-
1493101-35097-00 OIL SEALOIL SEAL
-
1593306-278Y0-00 BEARINGBEARING
-
165FU-F5321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
175FU-F5351-00-00 CAMSHAFTCAMSHAFT
-
185FU-WF536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
194XE-F5133-00-00 SPRING, RETURNSPRING, RETURN
-
204XE-F513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
214XE-F5833-00-00 BOLT, FITTINGBOLT, FITTING
-
229570L-06500-00 NUT, FLANGENUT, FLANGE
-
235FU-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
244XE-F5898-00-00 GASKETGASKET
-
254XE-F5818-00-00 BOLT, CALIPERBOLT, CALIPER
-
264XE-F5816-00-00 SEAL, DUSTSEAL, DUST
-
2790506-16482-00 SPRING, TENSIONSPRING, TENSION
-
285FU-F5327-00-00 COVER, PLATECOVER, PLATE
-
295FU-F5319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
309582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315FU-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
324XE-G6513-00-00 RETAINERRETAINER
-
3390105-08892-00 BOLT, FLANGEBOLT, FLANGE
-
345FU-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
3590387-284T0-00 COLLARCOLLAR
-
3693210-26606-00 O-RINGO-RING
-
375FU-F531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
385FU-F5336-00-00 4M-DRUM, BRAKE ASS4M-DRUM, BRAKE ASS
-
395FU-F5383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
4090114-10804-00 ...BOLT, SERRATION...BOLT, SERRATION
-
415FU-F5384-00-00 WASHER, WHEELWASHER, WHEEL
-
4290201-168R1-00 WASHER, PLATEWASHER, PLATE
-
4390171-16001-00 NUT, CASTLENUT, CASTLE
-
4491401-30030-00 PIN, COTTERPIN, COTTER
-
455GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
4690445-078C3-00 HOSEHOSE
-
4790467-07093-00 CLIPCLIP
-
4890468-15020-00 CLIPCLIP
-
495FU-F5310-00-00 DRUM ASSYDRUM ASSY
