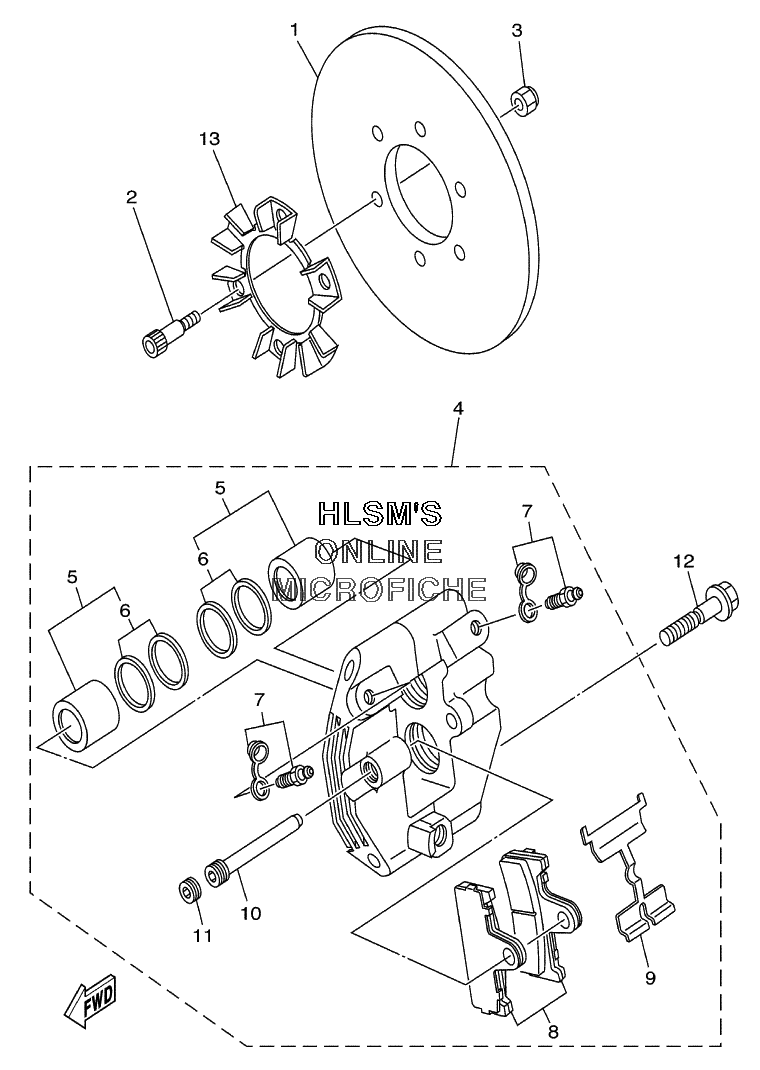

BRAKE - REAR CALIPER для Yamaha GRIZZLY 660 MELALLIC SILVER YFM660FPS (5KM6) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-2582V-00-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
290109-06038-00 BOLTBOLT
-
395617-06100-00 NUT, UNUT, U
-
45KM-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
55KM-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65KM-W0047-00-00 .........CALIPER SEAL KIT.........CALIPER SEAL KIT
-
71UY-W0048-50-00 ......BLEED SCREW KIT......BLEED SCREW KIT
-
85KM-W0046-00-00 ......BRAKE PAD KIT 2......BRAKE PAD KIT 2
-
95KM-25919-00-00 ......SUPPORT, PAD......SUPPORT, PAD
-
108CR-25924-00-00 ......PIN, PAD......PIN, PAD
-
118CR-25926-00-00 ......BOLT......BOLT
-
1290105-10634-00 BOLT, FLANGEBOLT, FLANGE
-
135KM-2539F-00-00 PLATE 1PLATE 1
