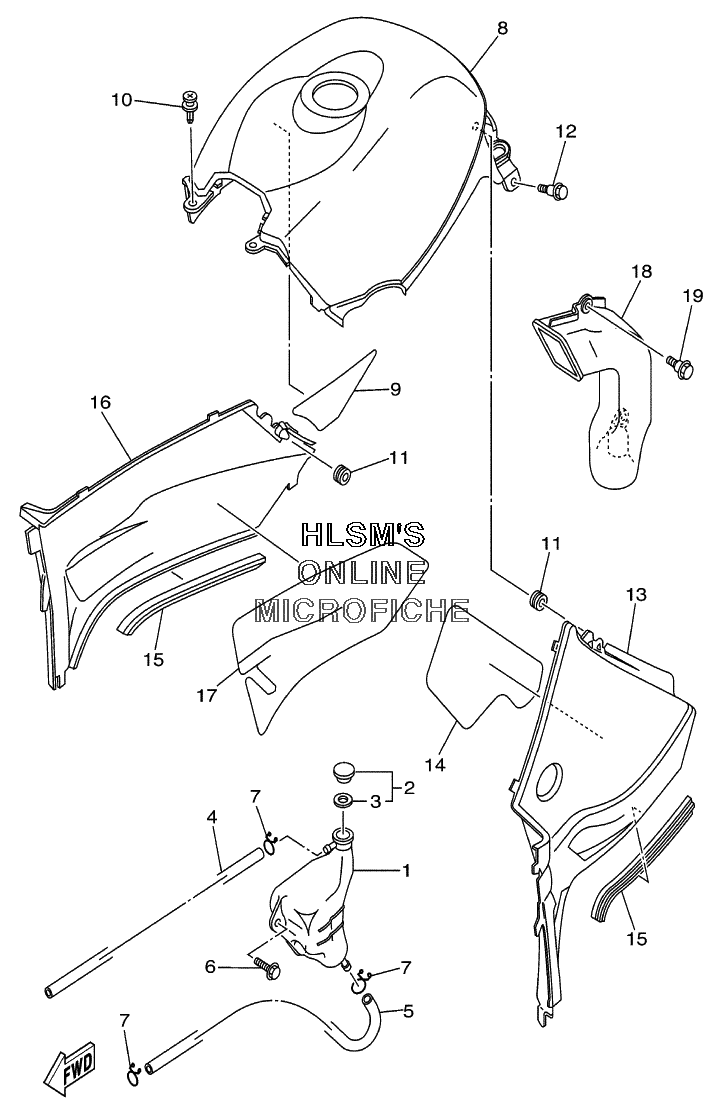

SIDE COVER для Yamaha GRIZZLY 660 MELALLIC SILVER YFM660FPS (5KM6) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21AA-21815-00-00 CAPCAP
-
31AA-21874-00-00 ......GASKET......GASKET
-
490445-096F4-00 HOSE (L870)HOSE (L870)
-
590445-09635-00 HOSE (L910)HOSE (L910)
-
690119-06056-00 BOLT, HEXAGONBOLT, HEXAGON
-
790467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
85KM-2171A-B0-00 COVER, TOPCOVER, TOP
-
95KM-2174M-00-00 CLOTH, PROTECTORCLOTH, PROTECTOR
-
1090269-06002-00 RIVETRIVET
-
1190480-13567-00 GROMMETGROMMET
-
1290109-063F1-00 BOLTBOLT
-
135KM-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
145KM-2174A-00-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
155KM-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
165KM-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
175KM-2174T-00-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
-
185KM-21557-00-00 DUCT, AIRDUCT, AIR
-
1990109-063F1-00 BOLTBOLT
