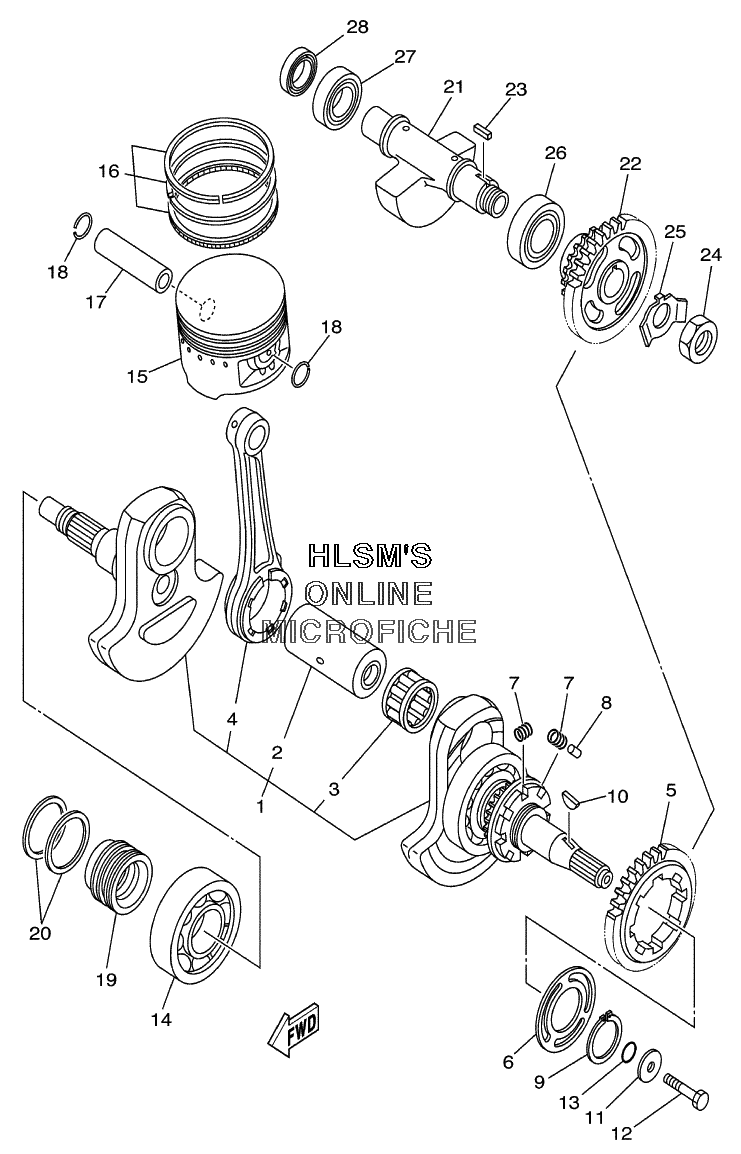

CRANKSHAFT - PISTON для Yamaha GRIZZLY 660 MELALLIC SILVER YFM660FPS (5KM6) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25KM-11681-00-00 ......PIN, CRANK 1......PIN, CRANK 1
-
393310-637D3-00 ......BEARING......BEARING
-
45LP-11651-00-00 ......ROD, CONNECTING......ROD, CONNECTING
-
55KM-11536-00-00 GEAR, DRIVEGEAR, DRIVE
-
65KM-11565-00-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
790501-22004-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
893606-09002-00 PIN, DOWELPIN, DOWEL
-
999009-35400-00 CIRCLIPCIRCLIP
-
1090280-16053-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190201-10321-00 WASHER, PLATEWASHER, PLATE
-
1290101-10568-00 BOLTBOLT
-
1393210-16290-00 O-RINGO-RING
-
1493306-30702-00 BEARING (B6307)BEARING (B6307)
-
153YF-11631-00-X0 PISTON (STANDARD)PISTON (STANDARD)
-
153YF-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
153YF-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
163YF-11610-00-00 PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
163YF-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
163YF-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
173YF-11633-01-00 PIN, PISTONPIN, PISTON
-
1893450-24028-00 CIRCLIPCIRCLIP
-
195KM-16181-00-00 SPACER 1SPACER 1
-
205KM-11447-00-00 SEAL, CRANKSEAL, CRANK
-
215KM-11454-00-00 WEIGHT 1WEIGHT 1
-
225KM-11530-00-00 BALANCER WEIGHT GEAR COMPBALANCER WEIGHT GEAR COMP
-
2390282-05005-00 KEY, STRAIGHTKEY, STRAIGHT
-
2490170-18003-00 NUTNUT
-
2590215-18001-00 WASHER, LOCKWASHER, LOCK
-
2693306-30534-00 BEARINGBEARING
-
2793306-30432-00 BEARING (B6304)BEARING (B6304)
-
2893102-20108-00 OIL SEALOIL SEAL
