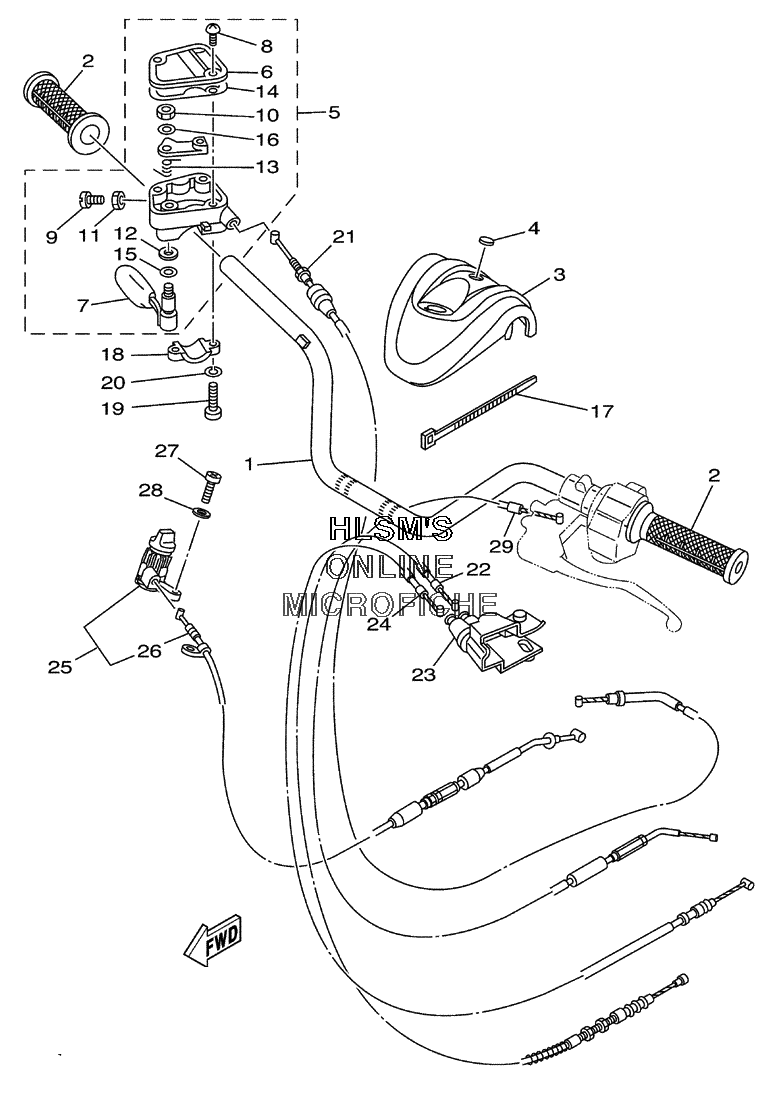

HANDLEBAR W/ THROTTLE - CABLE для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-26111-10-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
35LP-26124-10-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
54KB-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
64KB-2628F-00-00 ....CAP, GEAR....CAP, GEAR
-
71NV-2625G-01-00 ....LEVER, THROTTLE....LEVER, THROTTLE
-
890149-04278-00 ....SCREW....SCREW
-
998507-05020-00 ...SCREW...SCREW
-
1095607-05100-00 ....NUT, U....NUT, U
-
1195307-05700-00 ....NUT....NUT
-
1293104-09025-00 ....OIL SEAL....OIL SEAL
-
131NV-26304-00-00 ....SPRING....SPRING
-
144KB-2628G-00-00 ....GASKET....GASKET
-
151NV-26129-00-00 ....WASHER....WASHER
-
161NV-26398-00-00 ....WASHER....WASHER
-
17437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
184V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998507-05020-00 SCREWSCREW
-
2092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
215LP-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
225LP-26335-10-00 CABLE, CLUTCHCABLE, CLUTCH
-
231UY-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
245LP-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
255LP-26150-10-00 REV. LEVER ASSY.REV. LEVER ASSY.
-
265LP-2637E-10-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
2798507-05018-00 SCREWSCREW
-
2892907-05600-00 WASHER, PLATEWASHER, PLATE
-
295LP-26331-10-00 CABLE, STARTER 1CABLE, STARTER 1
