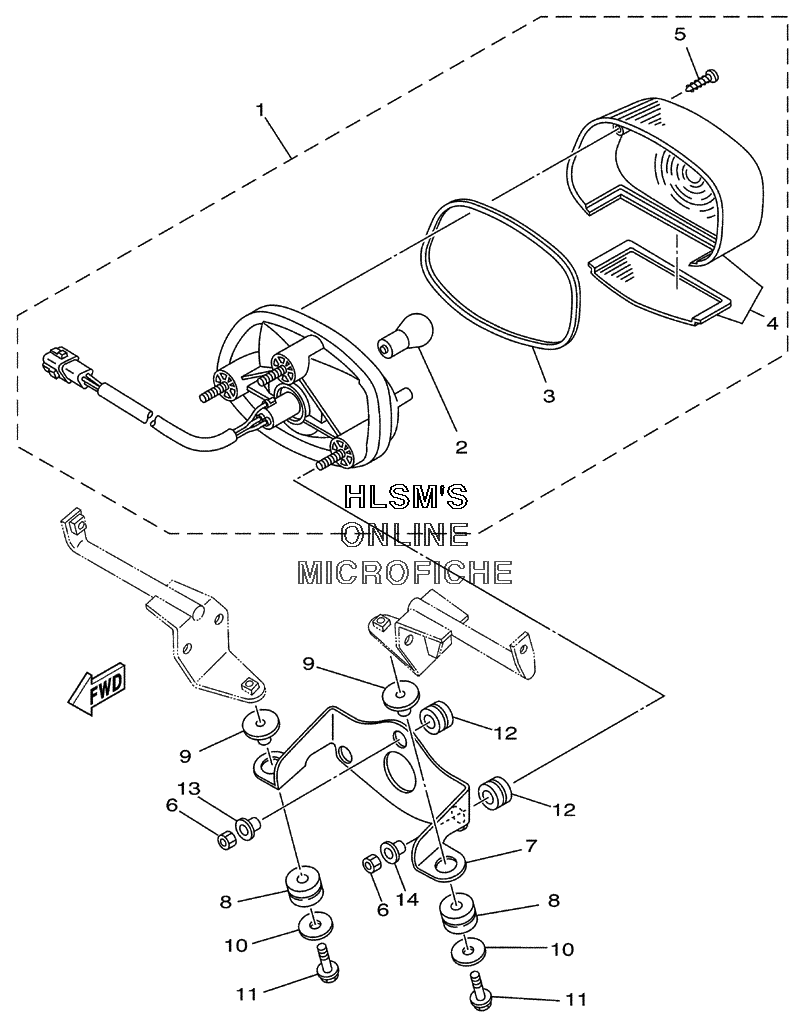

TAILLIGHT для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-84700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 ....BULB (12V-21/5W)....BULB (12V-21/5W)
-
34TR-84723-00-00 ....GASKET, TAIL LENS....GASKET, TAIL LENS
-
44TR-84733-00-00 ....LENS, TAILLIGHT....LENS, TAILLIGHT
-
597702-40620-00 ....SCREW, TAPPING....SCREW, TAPPING
-
695307-06600-00 NUTNUT
-
75LP-84702-30-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
890480-15528-00 GROMMETGROMMET
-
990387-075H4-00 COLLARCOLLAR
-
1090201-06074-00 WASHER, PLATEWASHER, PLATE
-
1195807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1290480-14555-00 GROMMETGROMMET
-
1390387-075U2-00 COLLARCOLLAR
-
1490387-07391-00 COLLARCOLLAR
