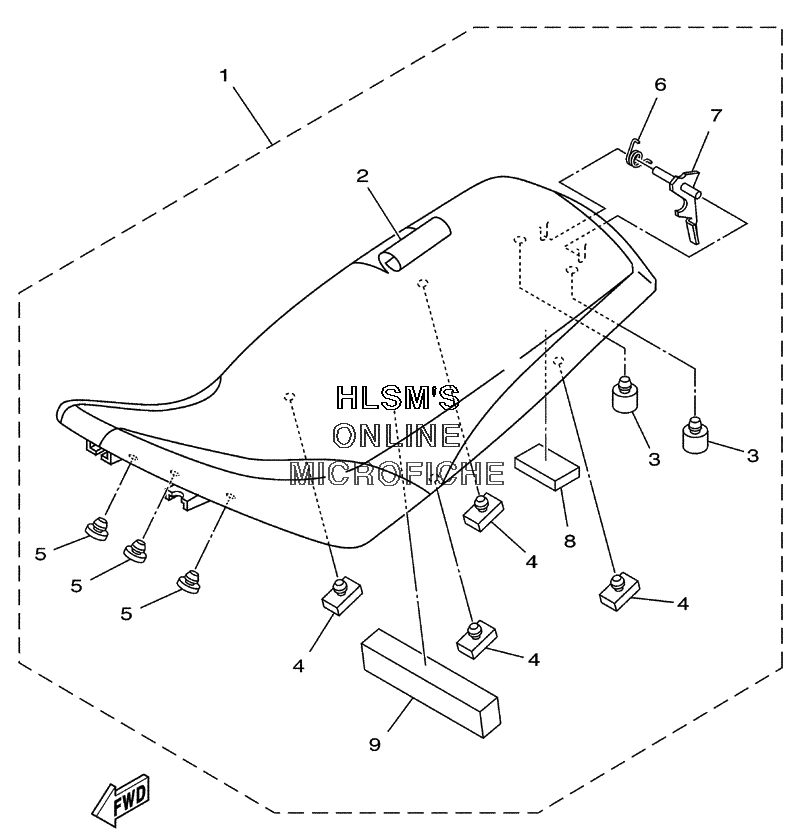

SEAT для Yamaha RAPTOR LTD. EDITION BLACK YFM660RPB (5LP8) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25LP-2470F-10-00 ....SEAT COVER COMP.....SEAT COVER COMP.
-
3371-27114-00-00 ....STOPPER, MAIN STAND....STOPPER, MAIN STAND
-
4214-24724-00-00 ....DAMPER, SEAT....DAMPER, SEAT
-
522W-24741-00-00 ....PAD, SEAT....PAD, SEAT
-
690508-23567-00 ....SPRING, TORSION....SPRING, TORSION
-
75LP-24776-00-00 ....LEVER, SEAT....LEVER, SEAT
-
85LP-24725-00-00 ....SPACER....SPACER
-
95LP-24729-00-00 ....SPACER 2....SPACER 2
