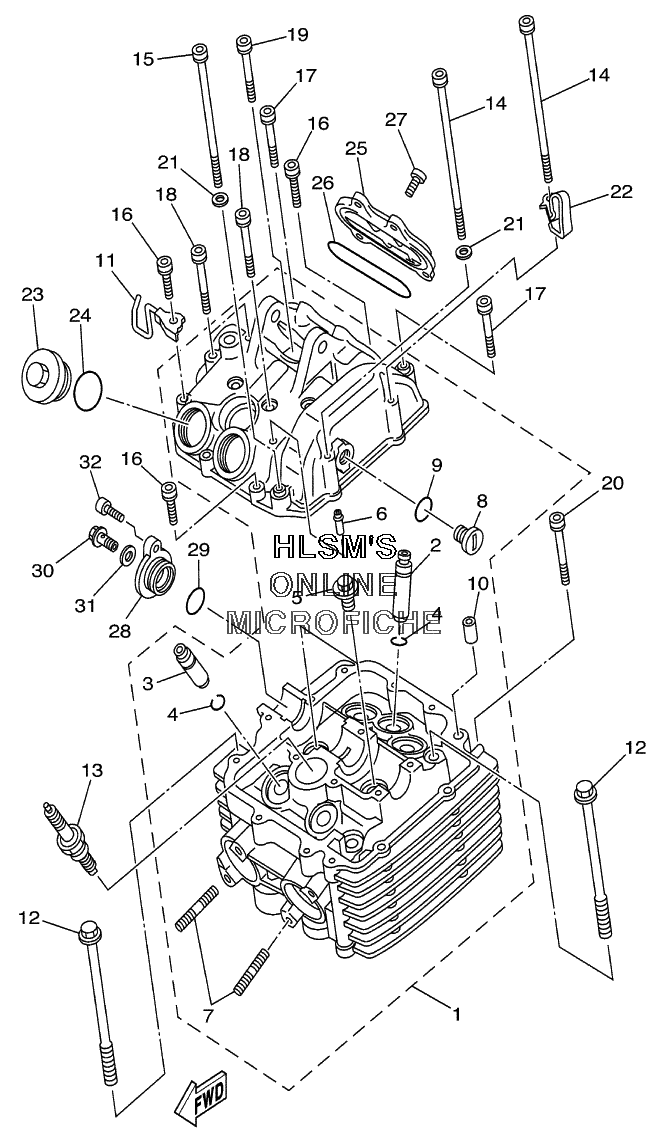

CYLINDER HEAD для Yamaha RAPTOR YFM660RP (5LP5) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23YF-11133-10-00 ......GUIDE, INTAKE VALVE......GUIDE, INTAKE VALVE
-
33YF-11134-10-00 ......GUIDE, EXHAUST VALVE......GUIDE, EXHAUST VALVE
-
493440-10085-00 ...CIRCLIP...CIRCLIP
-
590340-18101-00 ......PLUG, STRAIGHT SCREW......PLUG, STRAIGHT SCREW
-
622U-11126-00-00 ......PIPE, BREATHER 3......PIPE, BREATHER 3
-
790116-06541-00 ...BOLT, STUD...BOLT, STUD
-
890340-14120-00 ......PLUG, STRAIGHT SCREW (CIRCUIT SILVER)......PLUG, STRAIGHT SCREW (CIRCUIT SILVER)
-
993210-13657-00 ...O-RING...O-RING
-
1099530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
115LP-1135A-00-00 BRACKETBRACKET
-
1290105-09647-00 BOLT, FLANGEBOLT, FLANGE
-
13NGK-DPR8E-A9-00 PLUG, SPARK (NGK DPR8EA-9)PLUG, SPARK (NGK DPR8EA-9)
-
1491317-06130-00 BOLTBOLT
-
1591317-06115-00 BOLTBOLT
-
1691317-06025-00 BOLT, HEXAGON SOCKETBOLT, HEXAGON SOCKET
-
1791317-06040-00 BOLTBOLT
-
1891317-06055-00 BOLTBOLT
-
1990109-063E9-00 BOLTBOLT
-
2091317-06050-00 BOLTBOLT
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
225LP-1131E-01-00 HOLDER 1HOLDER 1
-
231L9-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2493210-32172-00 O-RINGO-RING
-
253YF-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2693210-71360-00 O-RINGO-RING
-
2791317-06018-00 BOLTBOLT
-
2834K-12215-03-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
2993210-19522-00 O-RINGO-RING
-
3090401-06001-00 BOLT, UNIONBOLT, UNION
-
3190430-06192-00 GASKETGASKET
-
3290110-06093-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
