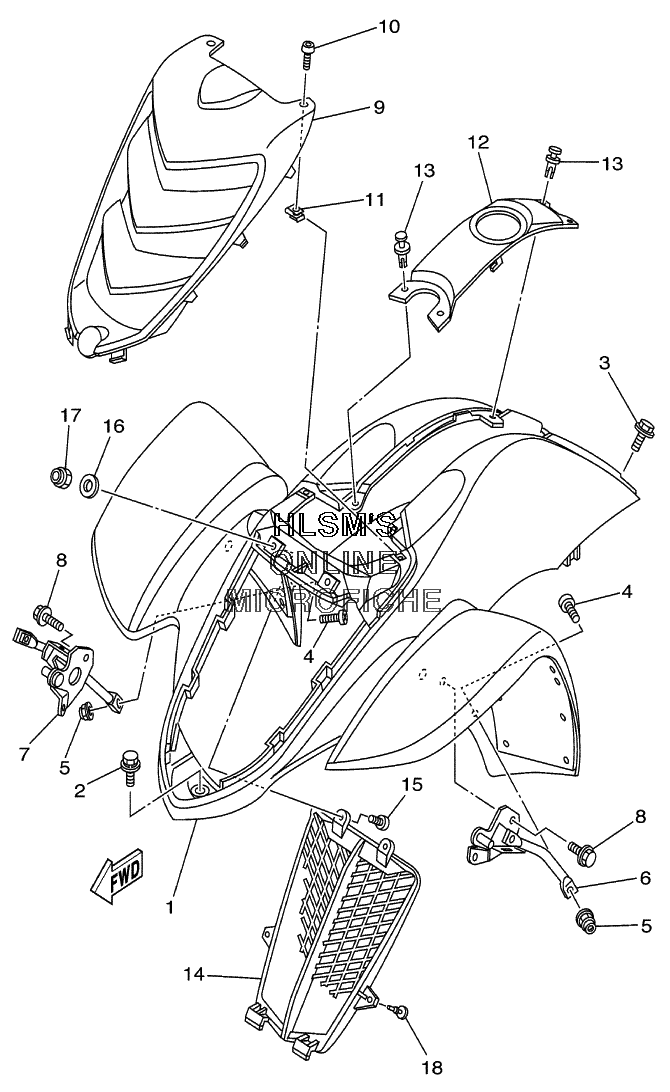

FENDER - FRONT для Yamaha RAPTOR YFM660RP (5LP5) - 2002 года выпуска

№

Артикул

Название
1

5LP-W2151-00-00 FRONT FENDER COMP (DEEP PURPLISH BLUE SOLID E)

FRONT FENDER COMP (DEEP PURPLISH BLUE SOLID E)

0 ₽
1

5LP-W2151-10-00 FRONT FENDER COMP (RADICAL WHITE)

FRONT FENDER COMP (RADICAL WHITE)

0 ₽
2

90119-06056-00 BOLT, HEXAGON

BOLT, HEXAGON

180 ₽
3

90119-06118-00 BOLT, WITH WASHER

BOLT, WITH WASHER

190 ₽
4

90149-06306-00 SCREW

SCREW

430 ₽
5

95607-06200-00 NUT, SELF U-FLANGE

NUT, SELF U-FLANGE

370 ₽
6

5LP-21513-00-00 STAY, FENDER 1

STAY, FENDER 1

6 920 ₽
7

5LP-21514-00-00 STAY, FENDER 2

STAY, FENDER 2

7 550 ₽
8

95807-08014-00 BOLT, FLANGE

BOLT, FLANGE

160 ₽
9

5LP-21556-00-00 FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

6 450 ₽
9

5LP-21556-A0-00 FENDER, FRONT 2 (RADICAL WHITE)

FENDER, FRONT 2 (RADICAL WHITE)

0 ₽
10

90110-05201-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

310 ₽
11

90183-05008-00 NUT, SPRING

NUT, SPRING

320 ₽
12

5LP-2171A-00-00 COVER, TOP (DEEP PURPLISH BLUE SOLID E)

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

1 880 ₽
12

5LP-2171A-10-00 COVER, TOP (RADICAL WHITE)

COVER, TOP (RADICAL WHITE)

1 880 ₽
13

90269-06002-00 RIVET

RIVET

340 ₽
14

5LP-12467-10-00 COVER, RADIATOR

COVER, RADIATOR

6 920 ₽
15

90154-05011-00 SCREW, BINDING

SCREW, BINDING

540 ₽
16

90201-05725-00 WASHER, PLATE

WASHER, PLATE

310 ₽
17

95607-05100-00 ...NUT, U

...NUT, U

470 ₽
18

90480-05201-00 GROMMET

GROMMET

310 ₽
