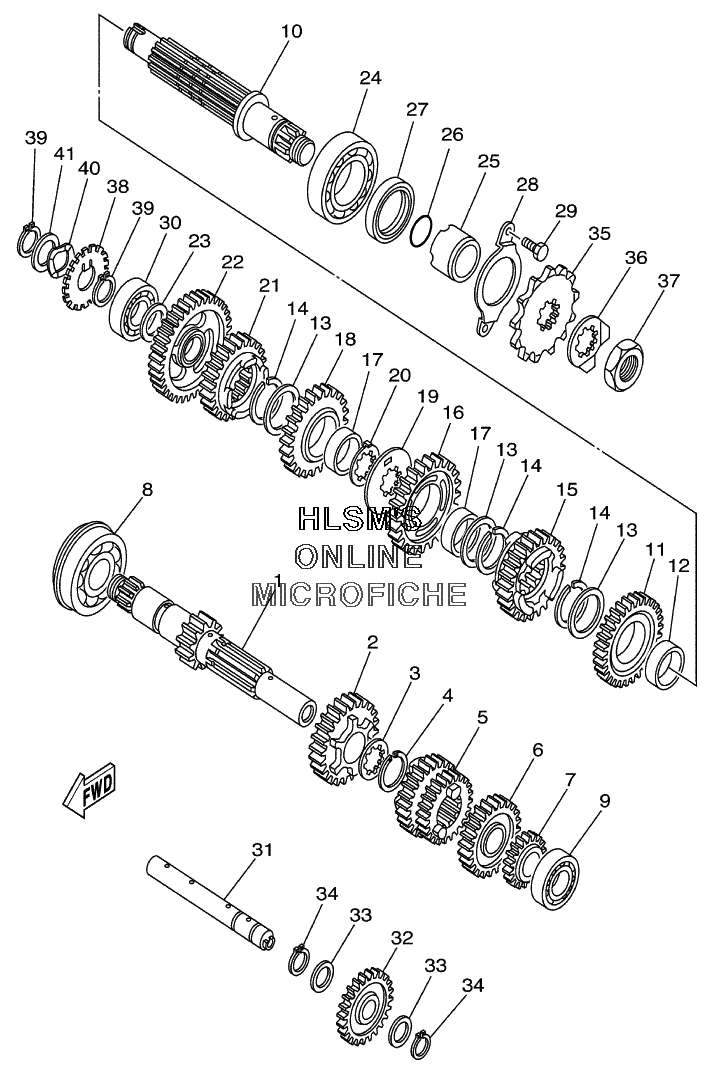

TRANSMISSION для Yamaha RAPTOR YFM660RP (5LP5) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-17401-10-00 AXLE, MAIN (12TEETH)AXLE, MAIN (12TEETH)
-
25LP-17151-00-00 GEAR, 5TH PINION (21TEETH)GEAR, 5TH PINION (21TEETH)
-
390209-21332-00 WASHERWASHER
-
493440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
55LP-17121-10-00 GEAR, 2ND PINION (18/21TEETH)GEAR, 2ND PINION (18/21TEETH)
-
65LP-17141-10-00 GEAR, 4TH PINION (21TEETH)GEAR, 4TH PINION (21TEETH)
-
75LP-17143-10-00 GEAR, REVERSE PINION (18TEETH)GEAR, REVERSE PINION (18TEETH)
-
893306-30540-00 BEARING (6305NRX1C3)BEARING (6305NRX1C3)
-
993306-00428-00 BEARINGBEARING
-
105LP-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
115LP-17243-10-00 GEAR, REVERSE WHEEL (33TEETH)GEAR, REVERSE WHEEL (33TEETH)
-
1290387-2813C-00 COLLARCOLLAR
-
1390209-25342-00 WASHERWASHER
-
1493440-28062-00 CIRCLIPCIRCLIP
-
155LP-17241-10-00 GEAR, 4TH WHEEL (22TEETH)GEAR, 4TH WHEEL (22TEETH)
-
165LP-17221-10-00 GEAR, 2ND WHEEL (30TEETH)GEAR, 2ND WHEEL (30TEETH)
-
1790387-2813D-00 COLLARCOLLAR
-
185LP-17231-10-00 GEAR, 3RD WHEEL (27TEETH)GEAR, 3RD WHEEL (27TEETH)
-
1990209-25349-00 WASHERWASHER
-
2090209-25350-00 WASHERWASHER
-
215LP-17251-10-00 GEAR, 5TH WHEEL (19TEETH)GEAR, 5TH WHEEL (19TEETH)
-
225LP-17211-10-00 GEAR, 1ST WHEEL (31TEETH)GEAR, 1ST WHEEL (31TEETH)
-
2390201-20276-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
-
2493306-30535-00 BEARINGBEARING
-
2590387-2505V-00 COLLARCOLLAR
-
2693210-22298-00 O-RINGO-RING
-
2793102-35393-00 OIL SEALOIL SEAL
-
285LP-17471-00-00 PLATE, COVERPLATE, COVER
-
2997027-06014-00 BOLTBOLT
-
3093306-00426-00 BEARINGBEARING
-
315LP-17432-00-00 AXLE, IDLEAXLE, IDLE
-
325LP-17281-10-00 GEAR, DRIVE 1GEAR, DRIVE 1
-
3390201-150U6-00 WASHER, PLATEWASHER, PLATE
-
3493440-15012-00 CIRCLIPCIRCLIP
-
359383E-13216-00 SPROCKET, DRIVE (13TEETH)SPROCKET, DRIVE (13TEETH)
-
3690215-21256-00 WASHER, LOCKWASHER, LOCK
-
3790179-18020-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
385LP-17446-00-00 PLATEPLATE
-
3999009-20400-00 CIRCLIPCIRCLIP
-
4090206-20037-00 WASHER, WAVEWASHER, WAVE
-
4190201-20276-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
