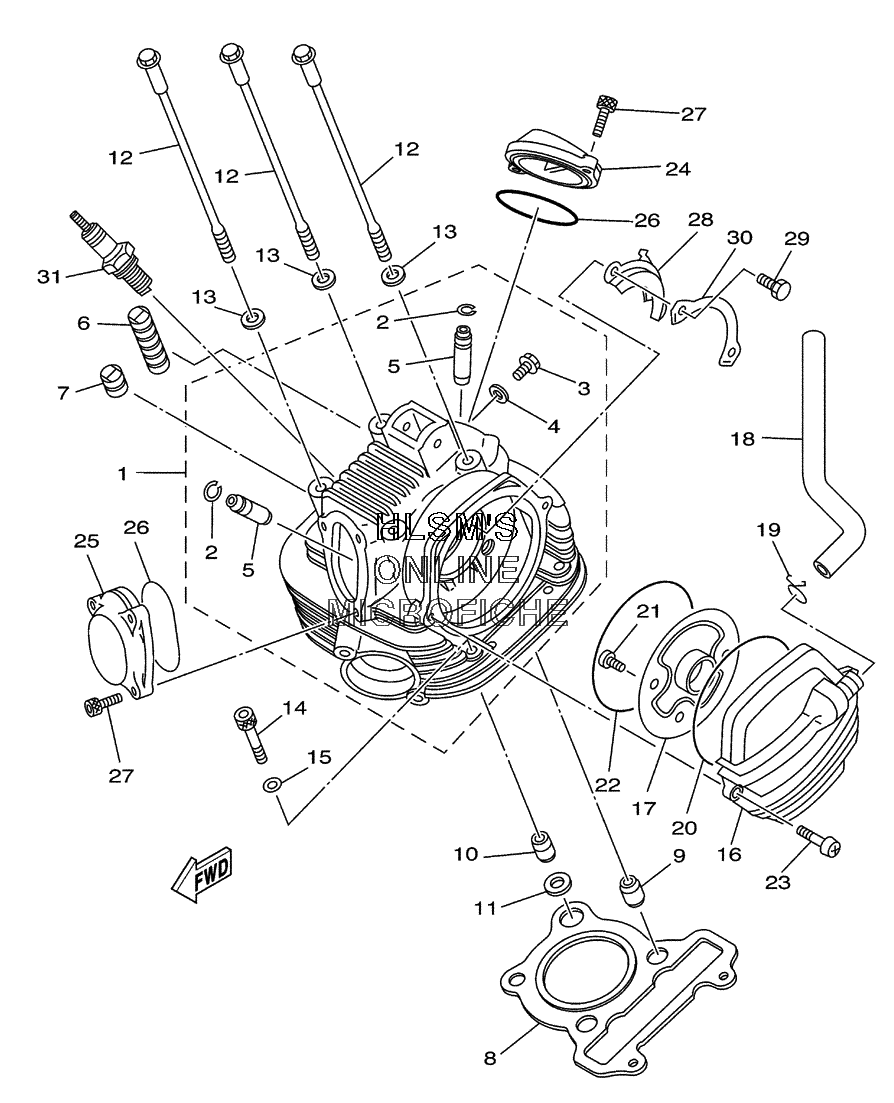

CYLINDER HEAD для Yamaha BEAR TRACKER YFM25XR (4XEH) - 2003 года выпуска
-
№АртикулНазвание
-
14BD-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
293440-10085-00 ...CIRCLIP...CIRCLIP
-
390153-06029-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
490430-06014-00 ...GASKET...GASKET
-
55H0-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
615A-11162-00-00 ABSORBER 2ABSORBER 2
-
715A-11161-01-00 ABSORBER 1ABSORBER 1
-
83GH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
999530-14016-00 PIN, DOWELPIN, DOWEL
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
1190430-12186-00 GASKETGASKET
-
1290105-08195-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-08609-00 WASHER, PLATEWASHER, PLATE
-
1491317-08045-00 BOLTBOLT
-
1590201-087G0-00 WASHER, PLATEWASHER, PLATE
-
164BD-11160-00-00 BREATHER ASSYBREATHER ASSY
-
174KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
184XE-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-14015-00 CLIPCLIP
-
2093210-92448-00 O-RINGO-RING
-
2192017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2293211-05471-00 O-RINGO-RING
-
2398507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
243GC-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
253GC-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2693210-57634-00 O-RINGO-RING
-
2791317-06018-00 BOLTBOLT
-
285H0-1111F-00-00 PLATEPLATE
-
2997007-06012-00 BOLTBOLT
-
3090215-06184-00 WASHER, LOCKWASHER, LOCK
-
31NGK-DR7EA-00-00 PLUG, SPARK (NGK DR7EA) (WITH RESISTER)PLUG, SPARK (NGK DR7EA) (WITH RESISTER)
