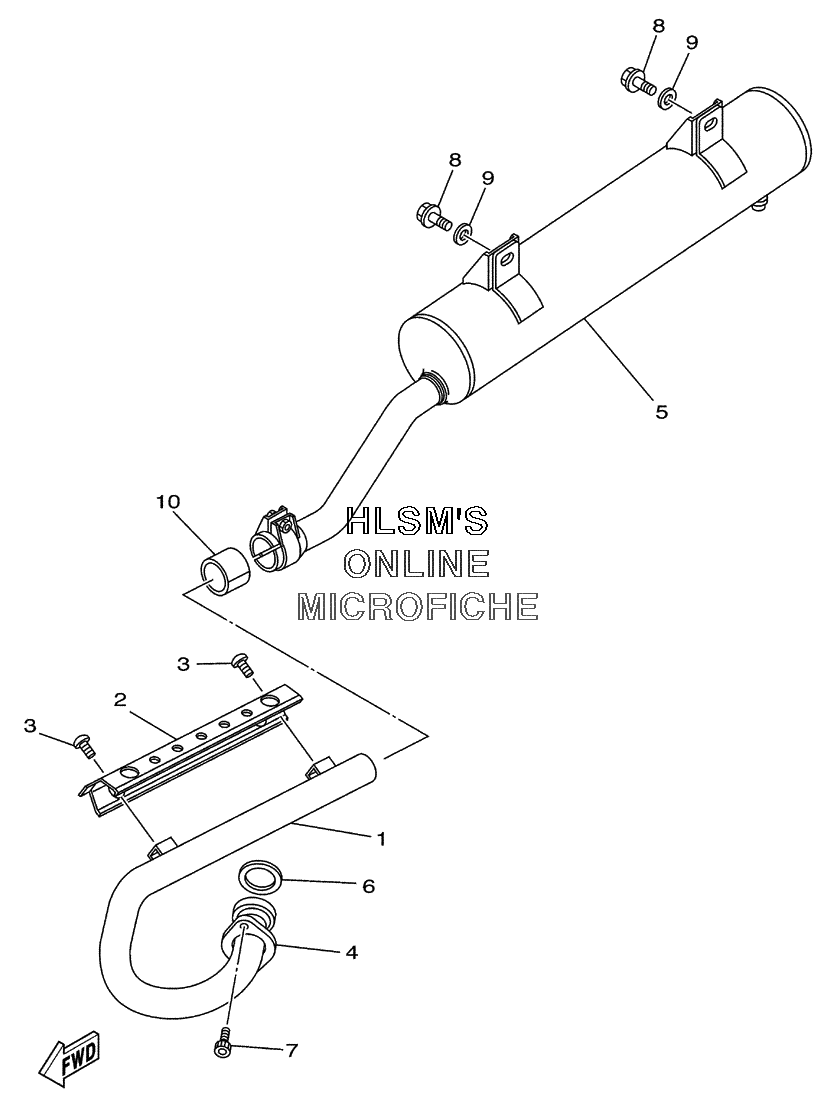

EXHAUST для Yamaha BEAR TRACKER YFM25XR (4XEH) - 2003 года выпуска
-
№АртикулНазвание
-
14XE-E4611-10-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
24XE-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
34XE-E4767-00-00 SCREWSCREW
-
44XE-E4612-10-00 NUT, RINGNUT, RING
-
54XE-E4710-20-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
64BE-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
79131P-06020-00 BOLTBOLT
-
890105-10801-00 BOLT, FLANGEBOLT, FLANGE
-
990201-108R2-00 WASHER, PLATEWASHER, PLATE
-
103YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
