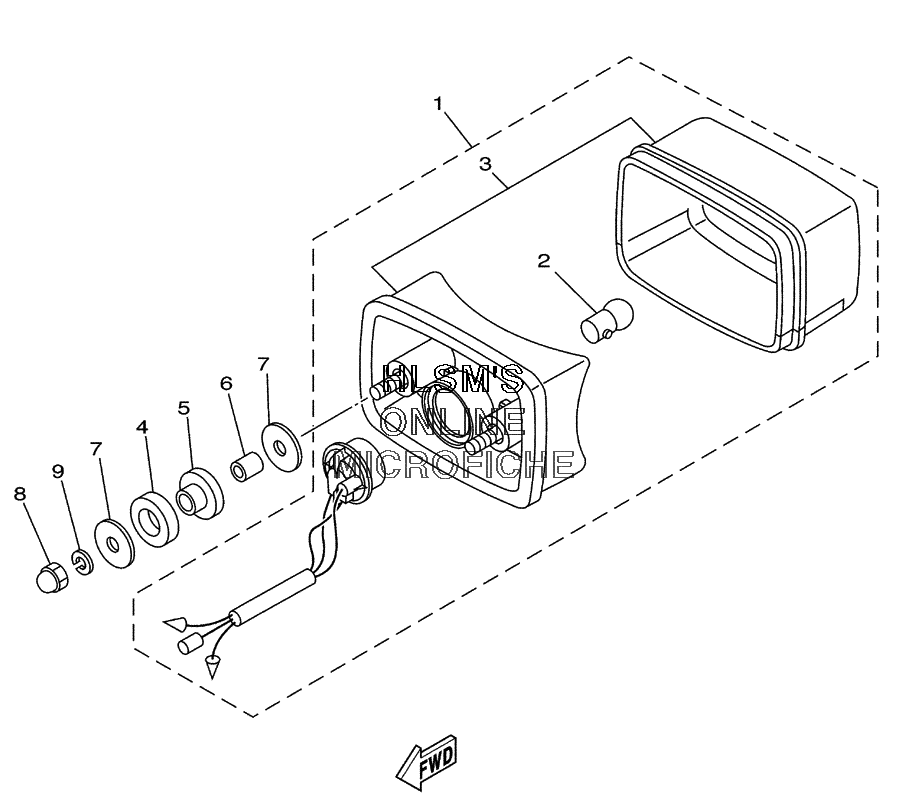

TAILLIGHT для Yamaha BEAR TRACKER YFM25XR (4XEH) - 2003 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35KM-8472C-10-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
490202-14077-00 WASHER, PLATEWASHER, PLATE
-
590480-14088-00 GROMMETGROMMET
-
690560-07007-00 SPACERSPACER
-
790201-06074-00 WASHER, PLATEWASHER, PLATE
-
895307-06800-00 NUTNUT
-
99290P-06100-00 WASHERWASHER
