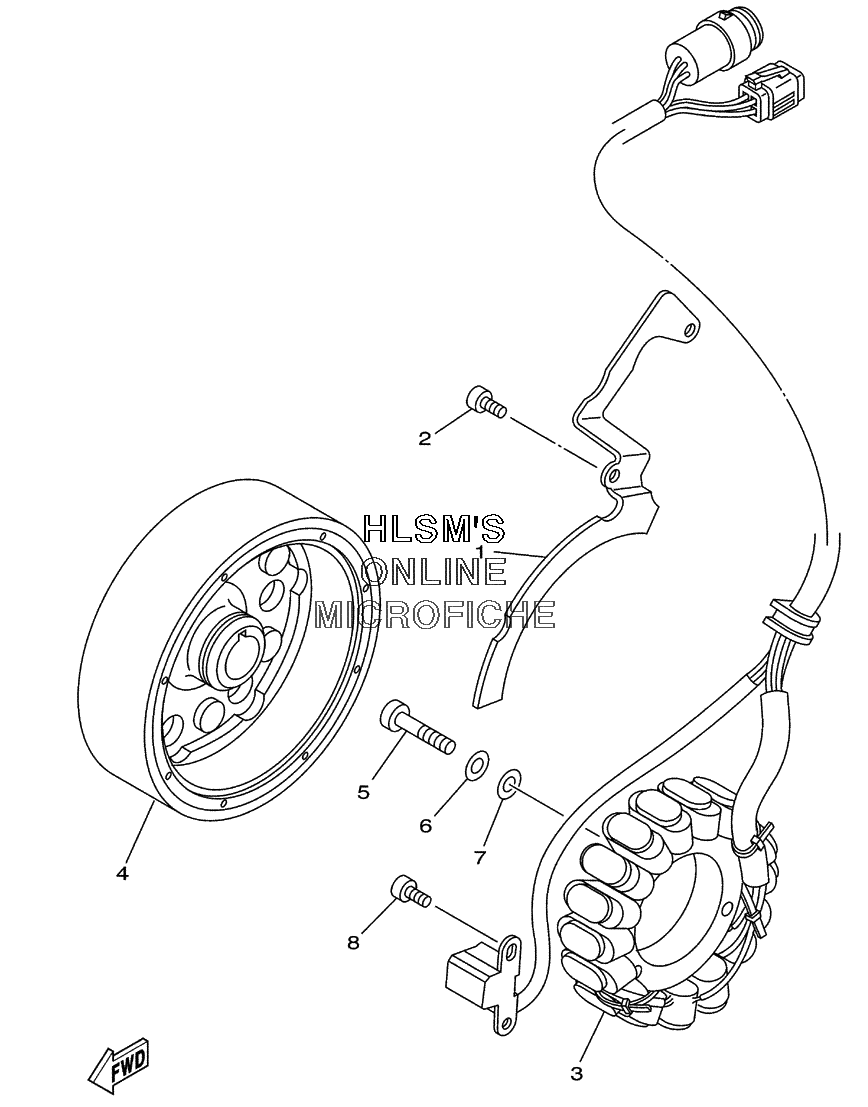

GENERATOR для Yamaha BIG BEAR 400 2WD YFM400NR (5GW9) - 2003 года выпуска
-
№АртикулНазвание
-
14KB-15113-10-00 PLATEPLATE
-
291317-05012-00 BOLTBOLT
-
35FU-81410-00-00 STATOR ASSYSTATOR ASSY
-
44KB-85550-11-00 ROTOR ASSYROTOR ASSY
-
598507-06030-00 SCREWSCREW
-
692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
792907-06600-00 WASHER, PLATEWASHER, PLATE
-
891317-05012-00 BOLTBOLT
