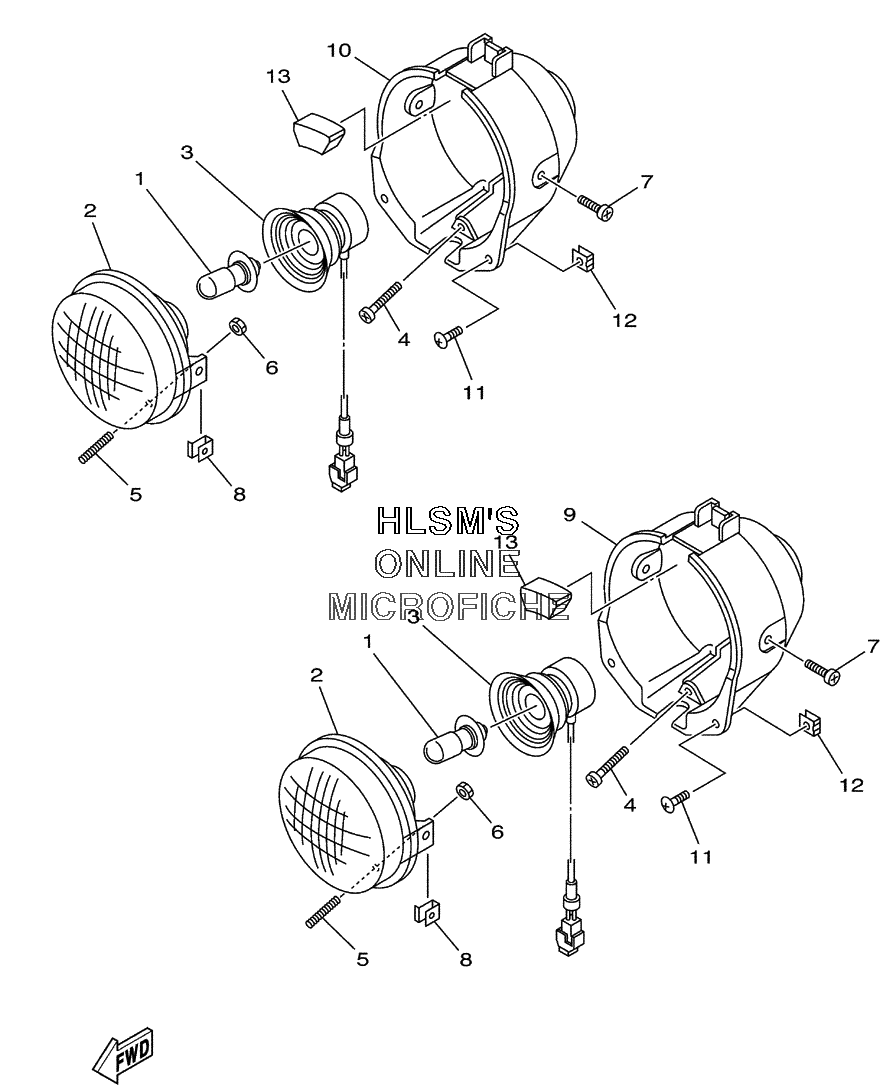

HEADLIGHT для Yamaha BIG BEAR 400 2WD YFM400NR (5GW9) - 2003 года выпуска
-
№АртикулНазвание
-
15FU-H4314-00-00 BULB, HEADLIGHTBULB, HEADLIGHT
-
25FU-H4320-00-00 LENS ASSYLENS ASSY
-
35FU-H4340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
42GU-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
790150-05802-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
890183-05008-00 NUT, SPRINGNUT, SPRING
-
95FU-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
105FU-H4311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
1197707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
134XE-F1717-00-00 DAMPERDAMPER
