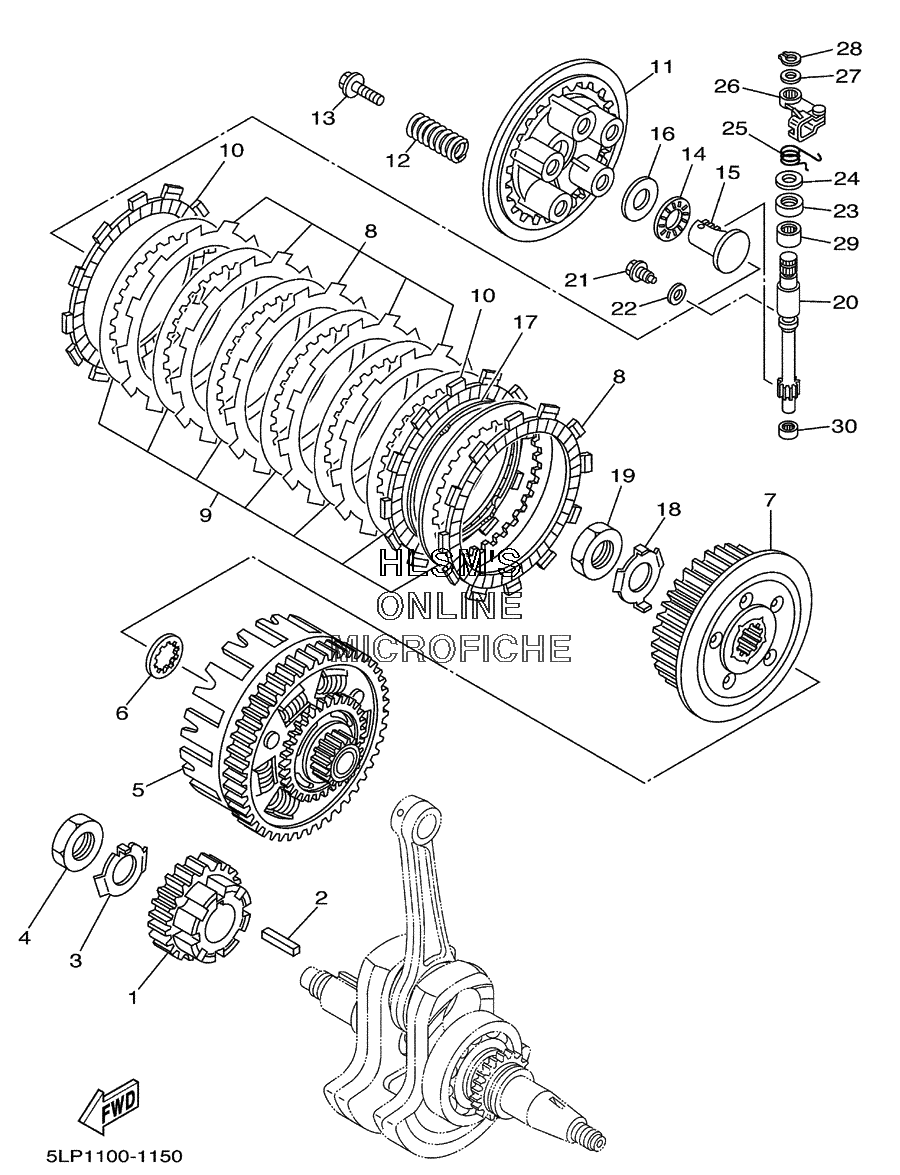

CLUTCH для Yamaha RAPTOR BLACK LTD YFM660RLER (5LPC) - 2003 года выпуска
-
№АртикулНазвание
-
15LP-16111-10-00 GEAR, PRIMARY DRIVE (34T)GEAR, PRIMARY DRIVE (34T)
-
290282-07042-00 KEY, STRAIGHTKEY, STRAIGHT
-
390215-20197-00 WASHER, LOCKWASHER, LOCK
-
490170-20274-00 NUTNUT
-
53AJ-16150-00-00 PRIMARY DRIVEN GEAR COMP. (71T)PRIMARY DRIVEN GEAR COMP. (71T)
-
62JN-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
74PT-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
85Y1-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
9360-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
105Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
113YF-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1290501-23142-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390159-06092-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1493340-21505-00 BEARINGBEARING
-
154H7-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
1690201-150U6-00 WASHER, PLATEWASHER, PLATE
-
175Y1-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
1890215-20231-00 WASHER, LOCKWASHER, LOCK
-
1990170-20327-00 NUTNUT
-
203JD-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2190109-06418-00 BOLTBOLT
-
2290430-06014-00 GASKETGASKET
-
2393102-15212-00 OIL SEALOIL SEAL
-
2490201-15785-00 WASHER, PLATEWASHER, PLATE
-
2590508-20016-00 SPRING, TORSIONSPRING, TORSION
-
263LD-16340-01-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2790201-10119-00 WASHER, PLATEWASHER, PLATE
-
2899009-10400-00 CIRCLIPCIRCLIP
-
2993315-31502-00 BEARINGBEARING
-
3093315-10838-00 BEARINGBEARING
