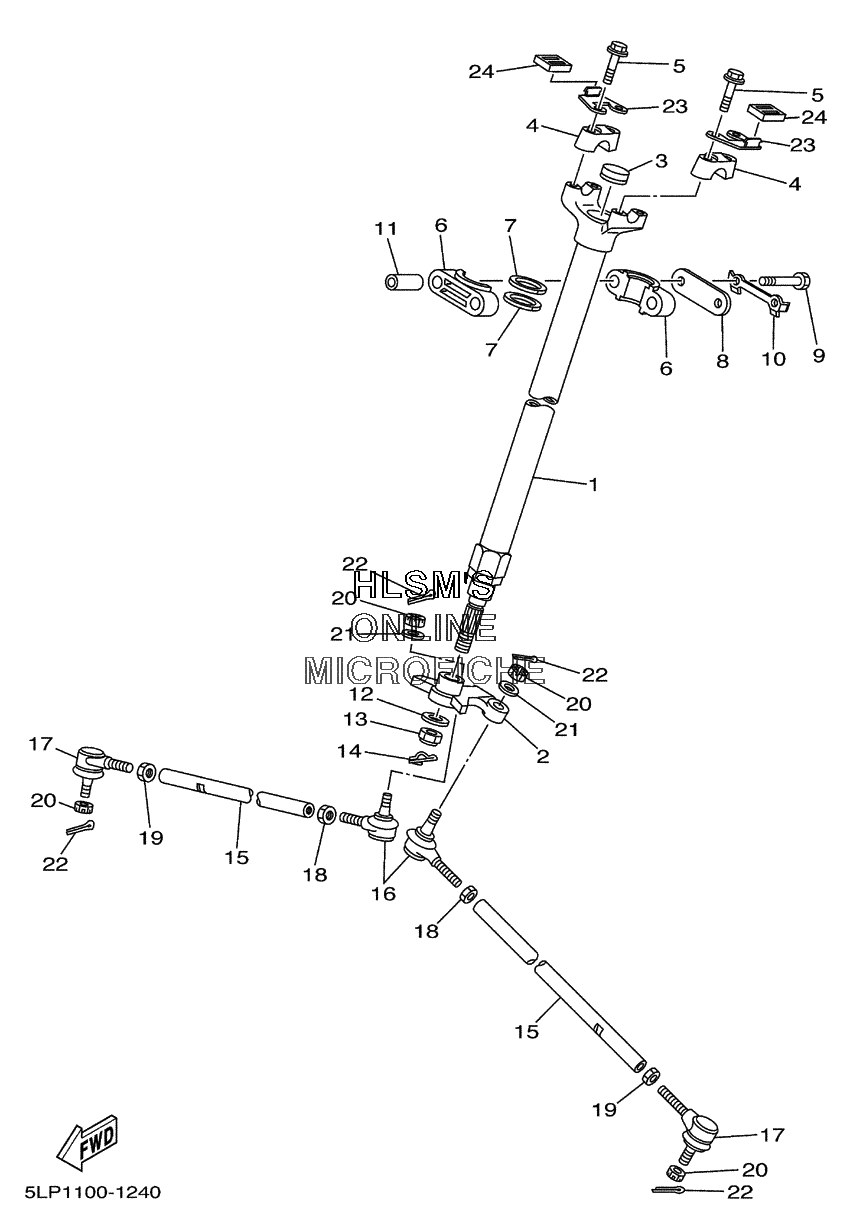

STEERING для Yamaha RAPTOR BLACK LTD YFM660RLER (5LPC) - 2003 года выпуска
-
№АртикулНазвание
-
15LP-23813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
25LP-23816-00-00 ARM, PITMANARM, PITMAN
-
390336-28053-00 PLUG, TAPERPLUG, TAPER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
595827-08035-00 BOLT, FLANGEBOLT, FLANGE
-
61UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
793112-31011-00 OIL SEALOIL SEAL
-
81UY-23868-01-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
997027-08060-00 BOLTBOLT
-
101UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1190387-090R0-00 COLLARCOLLAR
-
1290201-14226-00 WASHER, PLATEWASHER, PLATE
-
1390185-14150-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490468-16191-00 CLIPCLIP
-
155LP-23831-00-00 ROD, TIEROD, TIE
-
161UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
171UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1895307-10700-00 NUTNUT
-
1990170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2090171-10046-00 NUT, CASTLENUT, CASTLE
-
2190209-10229-00 WASHERWASHER
-
2291401-20020-00 PIN, COTTERPIN, COTTER
-
235LP-23881-00-00 BRACKET 1BRACKET 1
-
245LP-23858-00-00 SPACERSPACER
