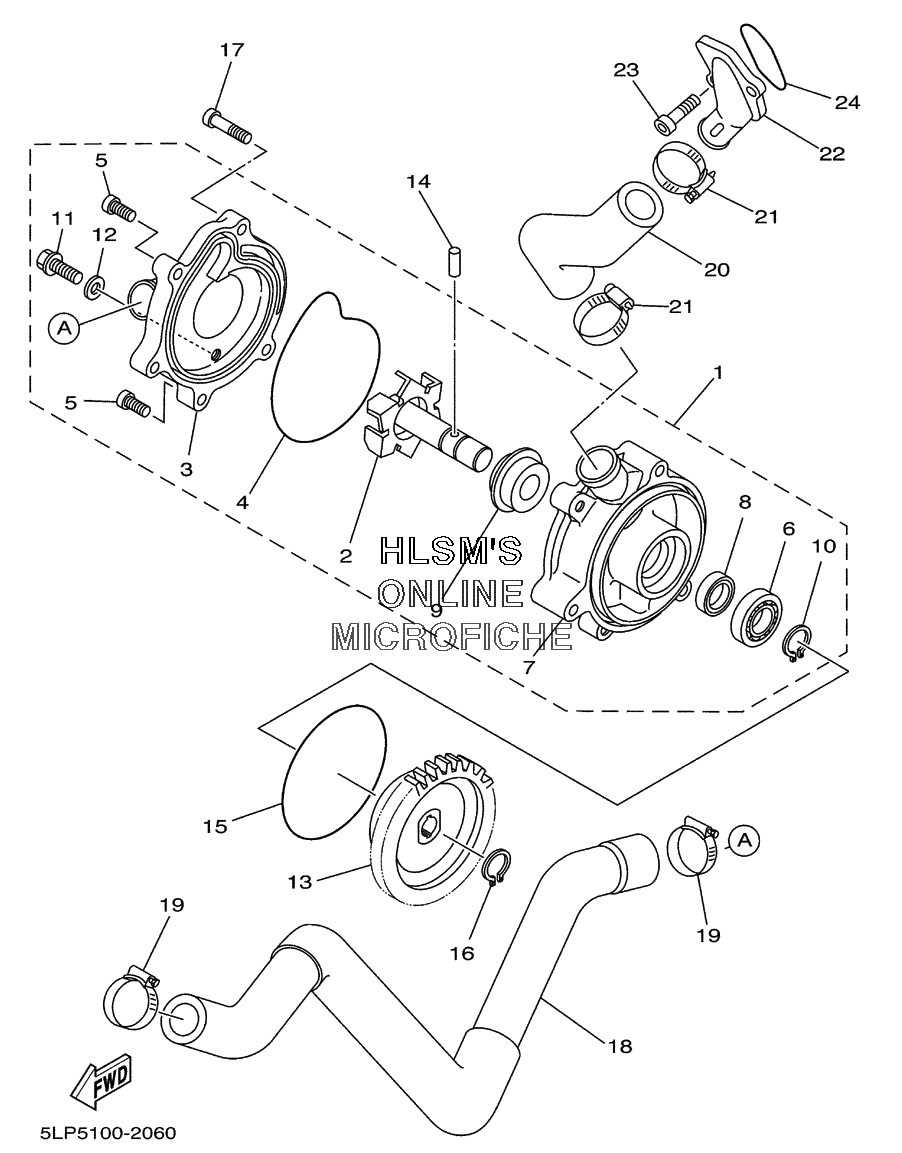

WATER PUMP для Yamaha RAPTOR BLACK LTD YFM660RLER (5LPC) - 2003 года выпуска
-
№АртикулНазвание
-
15LP-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
23YF-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
35LP-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
41WG-12439-00-00 ...O-RING...O-RING
-
591317-06020-00 ...BOLT...BOLT
-
693306-00106-00 ...BEARING...BEARING
-
75LP-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
893101-12173-00 ...OIL SEAL...OIL SEAL
-
911H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
1099009-12400-00 ...CIRCLIP...CIRCLIP
-
1195027-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1290430-06014-00 ...GASKET...GASKET
-
133YF-12459-00-00 GEAR, IMPELLER SHAFTGEAR, IMPELLER SHAFT
-
1493603-16219-00 PIN, DOWELPIN, DOWEL
-
1593210-77363-00 O-RINGO-RING
-
1699009-12400-00 CIRCLIPCIRCLIP
-
1791317-06045-00 BOLTBOLT
-
185LP-12576-00-00 HOSE 1HOSE 1
-
1990450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
205LP-12577-00-00 HOSE 2HOSE 2
-
2190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
223YF-12469-00-00 JOINT 1JOINT 1
-
2391317-06020-00 BOLTBOLT
-
2493210-33786-00 O-RINGO-RING
