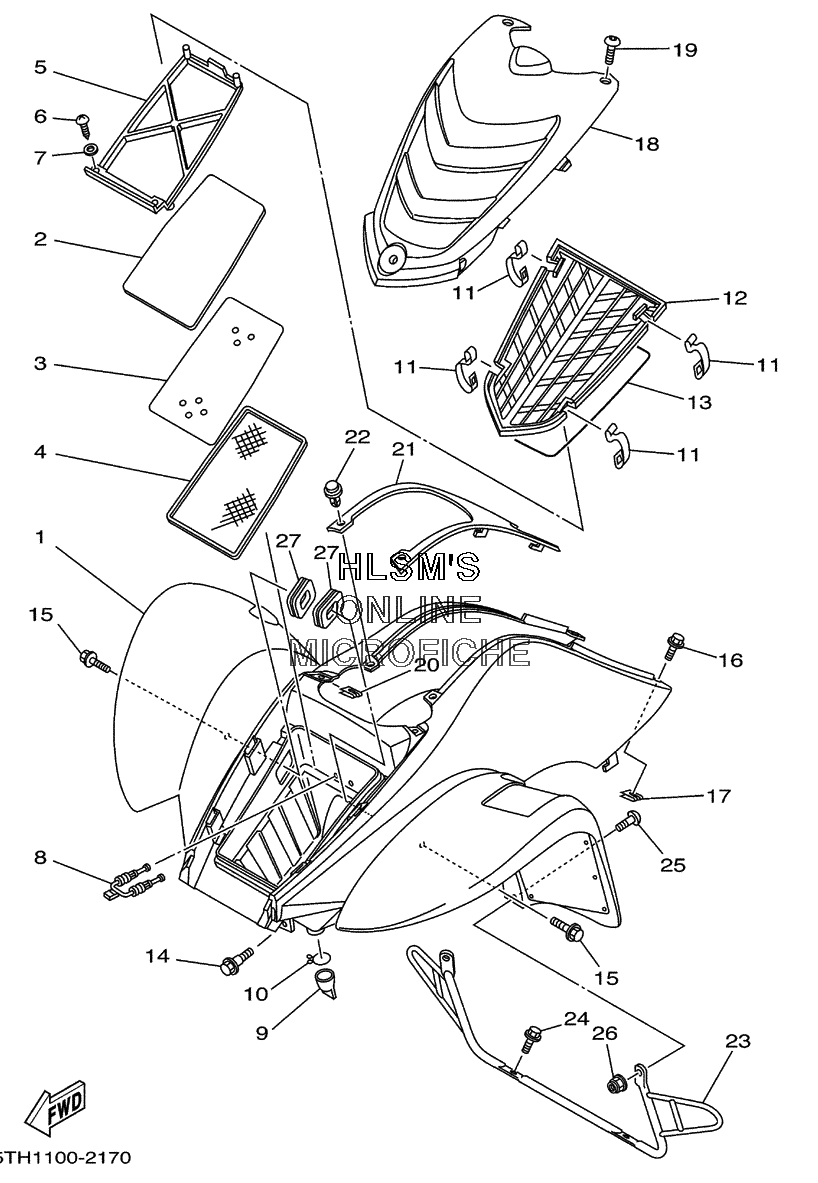

FENDER - FRONT для Yamaha RAPTOR YFM80R (5TH5) - 2003 года выпуска
-
№АртикулНазвание
-
15TH-W2151-00-00 FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBSE)FRONT FENDER COMP. (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
15TH-W2151-10-00 FRONT FENDER COMP. (OPT) FOR YAMAHA BLACK (YB)FRONT FENDER COMP. (OPT) FOR YAMAHA BLACK (YB)
-
255X-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
35TH-14477-00-00 PLATEPLATE
-
455X-14472-01-00 PLATE, ELEMENTPLATE, ELEMENT
-
555X-14458-00-00 GUIDEGUIDE
-
697707-40116-00 SCREW, TAPPINGSCREW, TAPPING
-
792907-04200-00 WASHERWASHER
-
855X-14436-00-00 HOOKHOOK
-
959V-14457-00-00 SEALSEAL
-
1090467-22080-00 CLIPCLIP
-
115TH-14436-00-00 HOOKHOOK
-
125TH-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
135TH-14452-00-00 SEALSEAL
-
1490109-063F1-00 BOLTBOLT
-
1590119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790183-05008-00 NUT, SPRINGNUT, SPRING
-
185TH-21556-00-00 FENDER, FRONT 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)FENDER, FRONT 2 (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
185TH-21556-10-00 FENDER, FRONT 2 (OPT) FOR YAMAHA BLACK (YB)FENDER, FRONT 2 (OPT) FOR YAMAHA BLACK (YB)
-
1990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090183-05008-00 NUT, SPRINGNUT, SPRING
-
215TH-2171A-00-00 COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
215TH-2171A-10-00 COVER, TOP (OPT) FOR YAMAHA BLACK (YB)COVER, TOP (OPT) FOR YAMAHA BLACK (YB)
-
2290269-06002-00 RIVETRIVET
-
235TH-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
2495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2590154-05052-00 SCREW, BINDINGSCREW, BINDING
-
2690185-05007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
272HX-14437-01-00 DUCTDUCT
