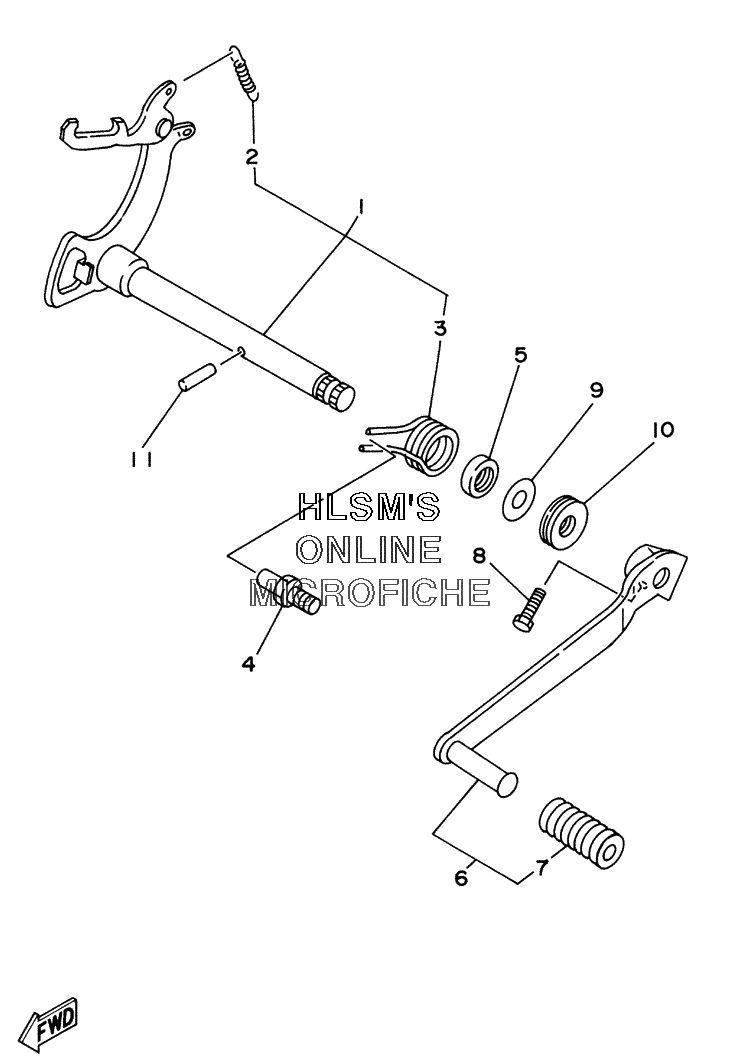

SHIFT SHAFT для Yamaha RAPTOR YFM80R (5TH5) - 2003 года выпуска
-
№АртикулНазвание
-
122F-18101-02-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
290506-08122-00 ...SPRING, TENSION...SPRING, TENSION
-
390508-32563-00 ...SPRING, TORSION...SPRING, TORSION
-
4278-18127-01-00 STOPPER, SCREWSTOPPER, SCREW
-
593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
62HX-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
7132-18113-01-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
897027-06020-00 BOLTBOLT
-
990201-127F4-00 WASHER, PLATEWASHER, PLATE
-
1093340-21209-00 BEARINGBEARING
-
1193604-20156-00 PIN, DOWELPIN, DOWEL
