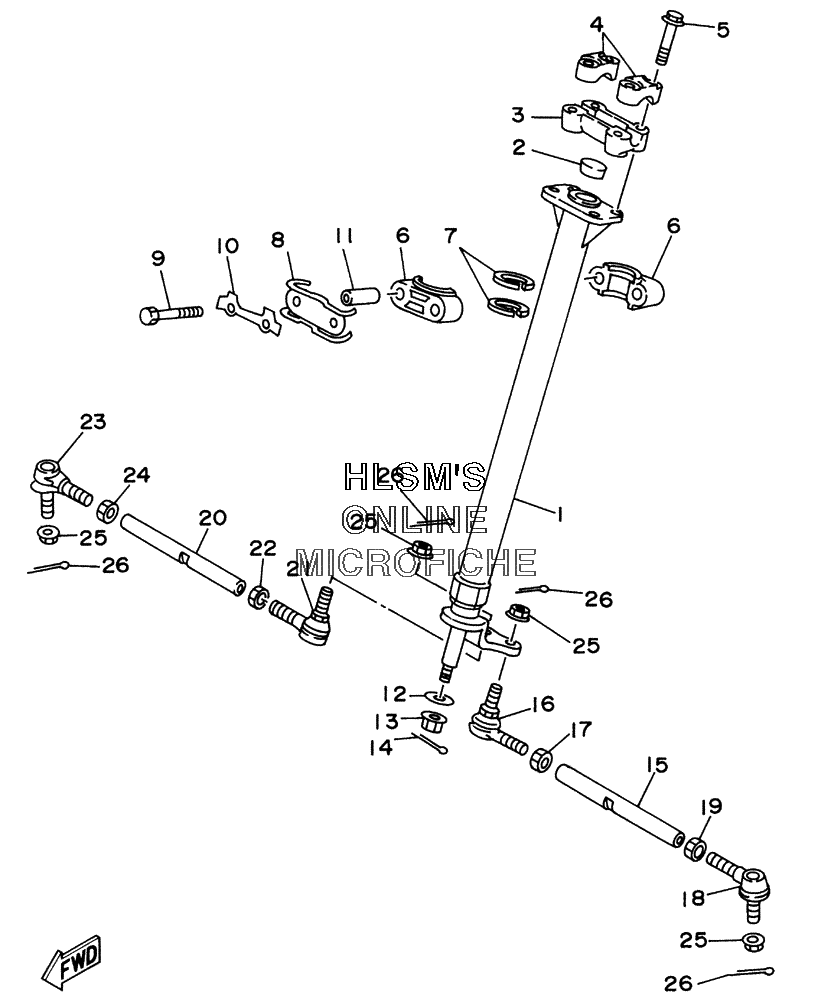

STEERING для Yamaha RAPTOR YFM80R (5TH5) - 2003 года выпуска
-
№АртикулНазвание
-
14EM-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
290336-28053-00 PLUG, TAPERPLUG, TAPER
-
38G5-23814-00-00 HOLDER,HANDLE UNDERHOLDER,HANDLE UNDER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
595827-08055-00 BOLT, FLANGEBOLT, FLANGE
-
61UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
793112-31011-00 OIL SEALOIL SEAL
-
83GB-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
997027-08060-00 BOLTBOLT
-
101UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1190387-090R0-00 COLLARCOLLAR
-
1290201-10774-00 WASHER, PLATEWASHER, PLATE
-
1390185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
153GB-23831-00-00 ROD, TIEROD, TIE
-
1655X-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
1795307-10700-00 NUTNUT
-
1852H-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1990170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
203GB-23831-00-00 ROD, TIEROD, TIE
-
2155X-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2295307-10700-00 NUTNUT
-
2352H-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2490170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2590185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2691401-20020-00 PIN, COTTERPIN, COTTER
