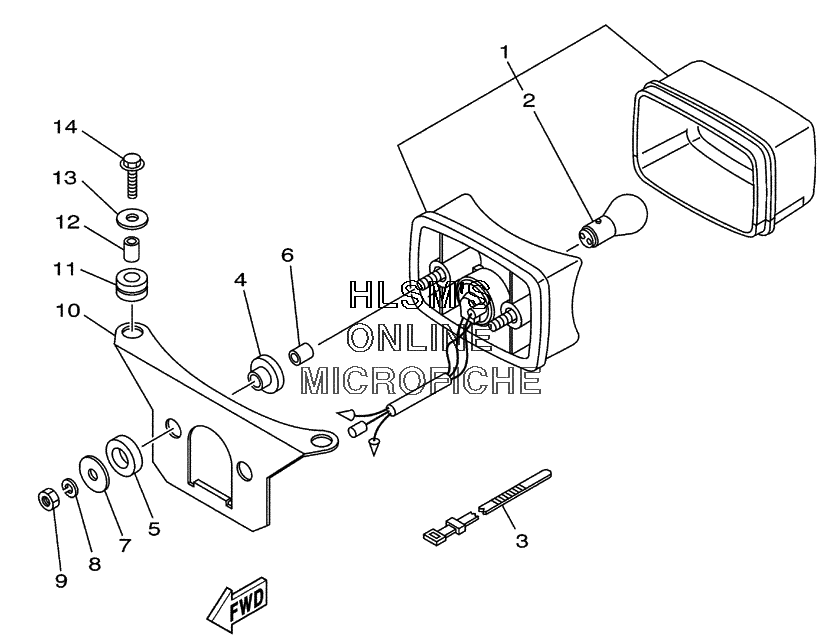

TAILLIGHT для Yamaha WARRIOR YFM350XR (5NF8) - 2003 года выпуска
-
№АртикулНазвание
-
13FA-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
3437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
490480-14088-00 GROMMETGROMMET
-
590202-14077-00 WASHER, PLATEWASHER, PLATE
-
690387-06595-00 COLLARCOLLAR
-
790201-06074-00 WASHER, PLATEWASHER, PLATE
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
995307-06600-00 NUTNUT
-
103FA-84702-10-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1190480-14555-00 GROMMETGROMMET
-
1290387-065L7-00 COLLARCOLLAR
-
1390201-06071-00 WASHER, PLATEWASHER, PLATE
-
1495807-06025-00 BOLT, FLANGEBOLT, FLANGE
