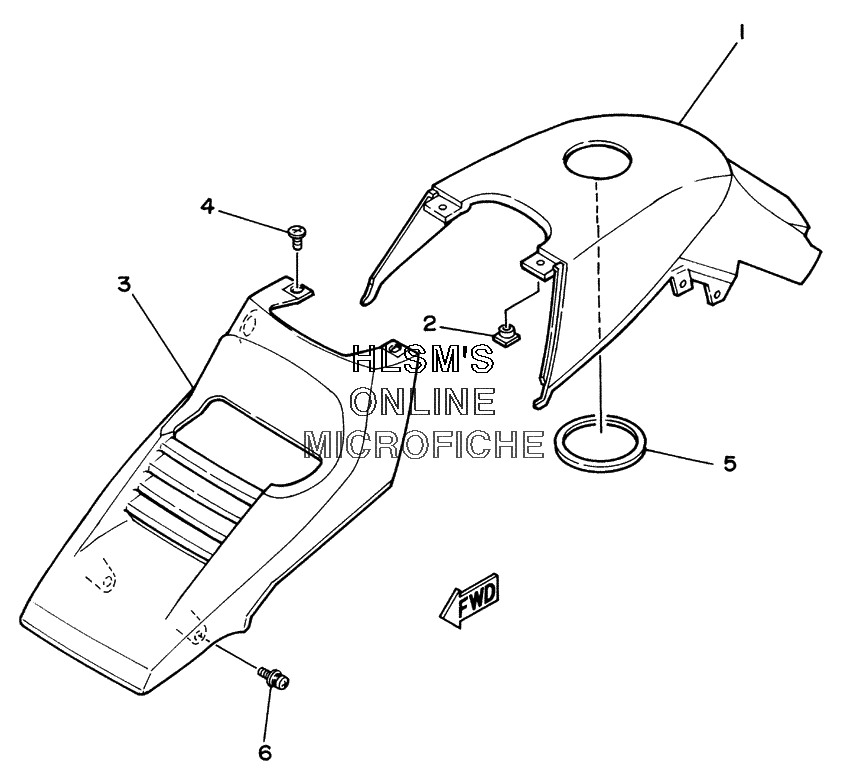

TOP COVER для Yamaha WARRIOR YFM350XR (5NF8) - 2003 года выпуска
-
№АртикулНазвание
-
11UY-2171A-10-00 COVER, TOP (OPT) FOR YAMAHA BLACK (YB)COVER, TOP (OPT) FOR YAMAHA BLACK (YB)
-
13GD-2171A-A0-00 COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)COVER, TOP (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
290183-05024-00 NUT, SPRINGNUT, SPRING
-
33GD-23391-70-00 PANEL, FRONT (OPT) FOR YAMAHA BLACK (YB)PANEL, FRONT (OPT) FOR YAMAHA BLACK (YB)
-
33GD-23391-B0-00 PANEL, FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBSE)PANEL, FRONT (OPT) FOR DEEP PURPLISH BLUE (DPBSE)
-
490110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
51UY-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
690159-06082-00 SCREW, WITH WASHERSCREW, WITH WASHER
