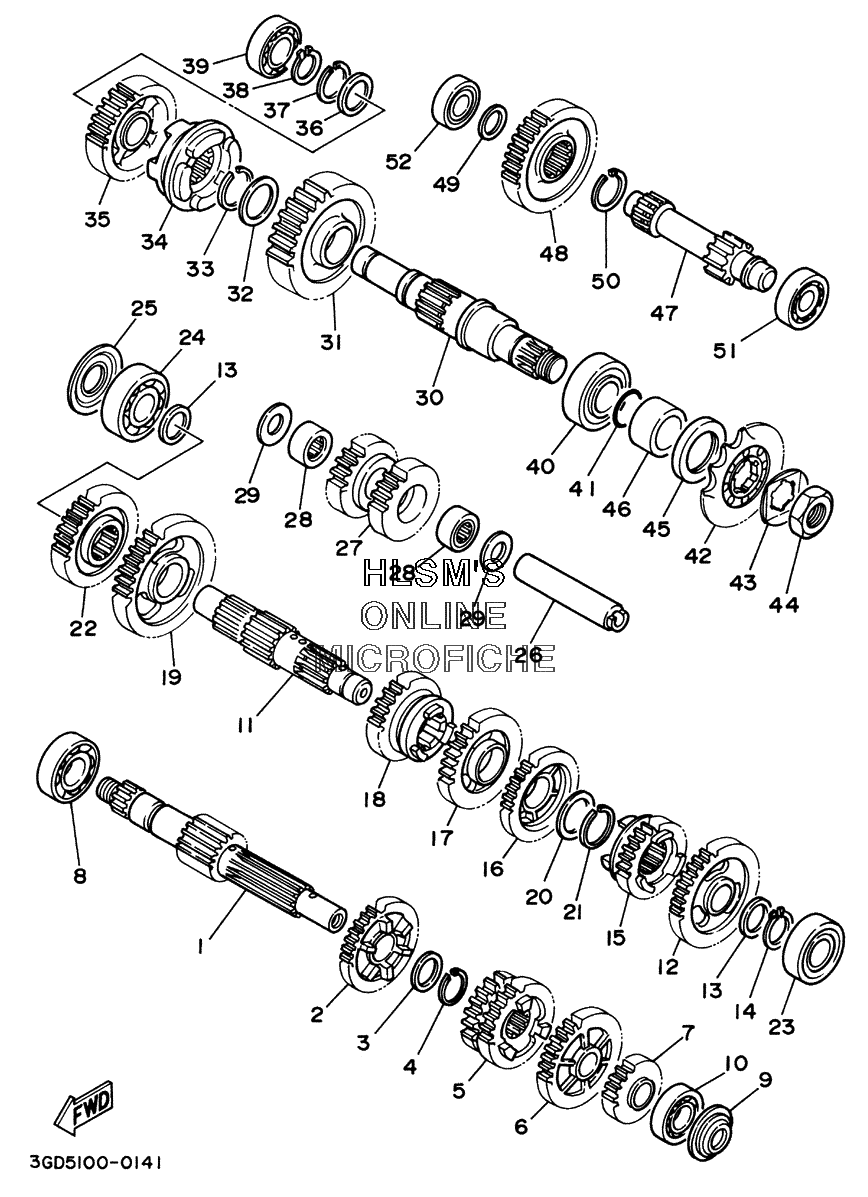

TRANSMISSION для Yamaha WARRIOR YFM350XR (5NF8) - 2003 года выпуска
-
№АртикулНазвание
-
11UY-17411-01-00 AXLE, MAINAXLE, MAIN
-
21UY-17151-00-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
390209-18208-00 WASHERWASHER
-
493410-22039-00 CIRCLIPCIRCLIP
-
51UY-17131-00-00 GEAR, 3RD PINION (23T/26T)GEAR, 3RD PINION (23T/26T)
-
61UY-17161-01-00 GEAR, 6TH PINION (29T)GEAR, 6TH PINION (29T)
-
71UY-17121-00-00 GEAR, 2ND PINION (20T)GEAR, 2ND PINION (20T)
-
893306-27202-00 BEARINGBEARING
-
993104-17094-00 OIL SEALOIL SEAL
-
1093306-20301-00 BEARINGBEARING
-
111UY-17421-01-00 AXLE, DRIVEAXLE, DRIVE
-
121UY-17221-00-00 GEAR, 2ND WHEEL (33T)GEAR, 2ND WHEEL (33T)
-
1390201-203E7-00 WASHER, PLATEWASHER, PLATE
-
1493410-20038-00 CIRCLIPCIRCLIP
-
151UY-17261-00-00 GEAR, 6TH WHEEL (23T)GEAR, 6TH WHEEL (23T)
-
161UY-17241-00-00 GEAR, 4TH WHEEL (27T)GEAR, 4TH WHEEL (27T)
-
171UY-17231-01-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
181UY-17251-00-00 GEAR, 5TH WHEEL (25T)GEAR, 5TH WHEEL (25T)
-
191UY-17211-00-00 GEAR, 1ST WHEEL (36T)GEAR, 1ST WHEEL (36T)
-
2090201-256E6-00 WASHER, PLATE (T=0.9)WASHER, PLATE (T=0.9)
-
2193440-25084-00 CIRCLIPCIRCLIP
-
221UY-17123-00-00 GEAR, HIGH PINION (27T)GEAR, HIGH PINION (27T)
-
2393306-20401-00 BEARING (B6204)BEARING (B6204)
-
2493306-30424-00 BEARING (B6304A3)BEARING (B6304A3)
-
2593104-20068-00 OIL SEALOIL SEAL
-
261UY-17432-01-00 AXLE, IDLEAXLE, IDLE
-
271UY-17223-01-00 GEAR, HIGH WHEEL (18T/20T)GEAR, HIGH WHEEL (18T/20T)
-
2893311-51554-00 BALL BEARINGBALL BEARING
-
2990201-150U6-00 WASHER, PLATEWASHER, PLATE
-
301UY-17523-00-00 SHAFTSHAFT
-
311UY-17253-00-00 GEAR, REVERSE WHEEL 2 (33T)GEAR, REVERSE WHEEL 2 (33T)
-
3290201-28665-00 WASHER, PLATEWASHER, PLATE
-
3393440-28062-00 CIRCLIPCIRCLIP
-
341UY-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
351UY-17582-00-00 GEAR, MIDDLE DRIVE (29T)GEAR, MIDDLE DRIVE (29T)
-
3690201-22793-00 WASHER, PLATEWASHER, PLATE
-
3793410-22039-00 CIRCLIPCIRCLIP
-
3893410-20038-00 CIRCLIPCIRCLIP
-
3993306-00431-00 BEARINGBEARING
-
4093306-20501-00 BEARING (B6205)BEARING (B6205)
-
4193210-22164-00 O-RINGO-RING
-
4293834-13030-00 SPROCKET,DRIVE 13T(23X1746130)SPROCKET,DRIVE 13T(23X1746130)
-
4390215-21239-00 WASHER, LOCKWASHER, LOCK
-
4490179-20255-00 NUTNUT
-
4593102-35393-00 OIL SEALOIL SEAL
-
4690387-257N4-00 COLLARCOLLAR
-
471UY-17431-00-00 AXLE, COUNTERAXLE, COUNTER
-
481UY-17243-00-00 GEAR, REVERSE WHEEL 1 (33T)GEAR, REVERSE WHEEL 1 (33T)
-
4990201-17255-00 WASHER, PLATEWASHER, PLATE
-
5093440-25084-00 CIRCLIPCIRCLIP
-
5193306-20301-00 BEARINGBEARING
-
5293306-00308-00 BEARING (B6003)BEARING (B6003)
