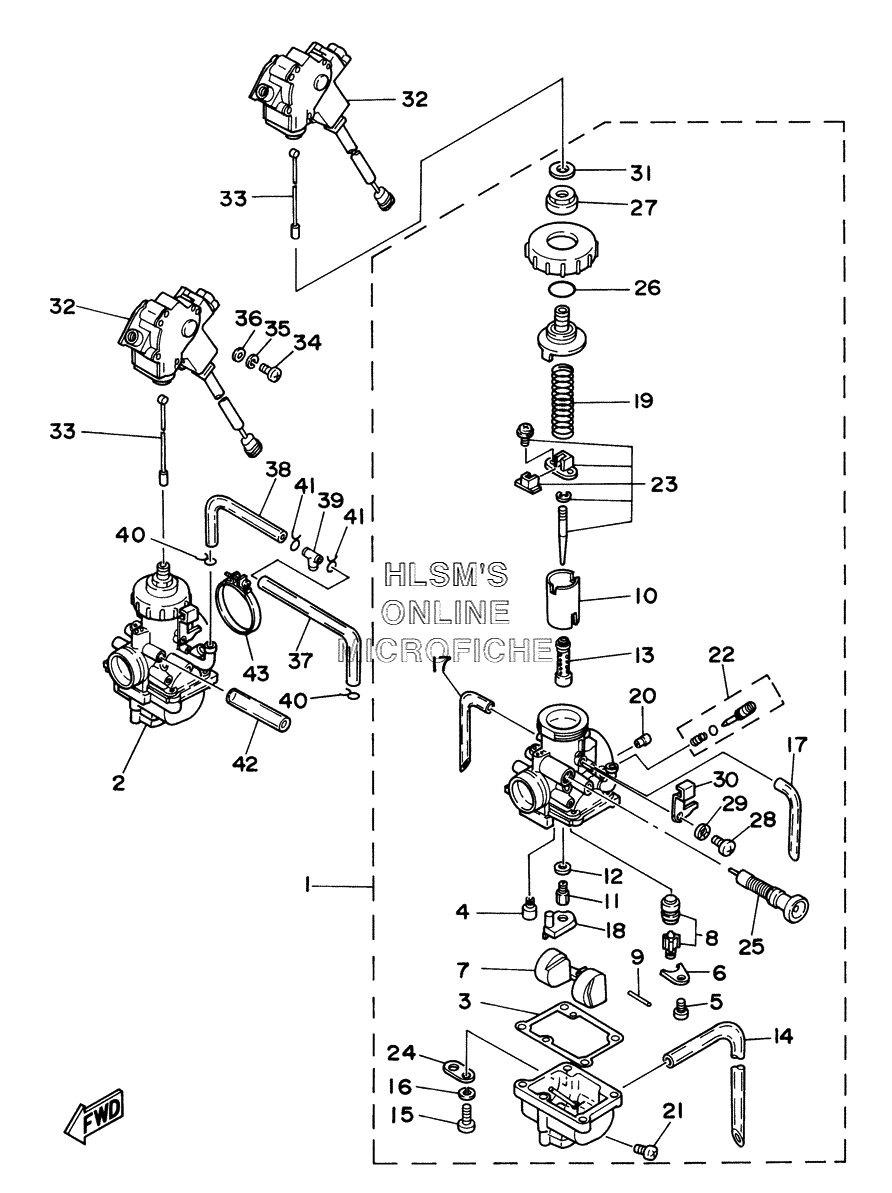

CARBURETOR для Yamaha BANSHEE LIMITED EDITION YFZ350LES - 2004 года выпуска
-
№АртикулНазвание
-
12GU-14101-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
22GU-14102-01-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
3304-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
4260-14142-25-00 ...JET, PILOT (# 25)...JET, PILOT (# 25)
-
598502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
62H0-14146-00-00 ...PLATE...PLATE
-
74L0-14185-00-00 ...FLOAT...FLOAT
-
81UA-14190-28-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
9537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
102GU-14113-20-00 ...VALVE, THROTTLE 2 (OPT FOR RIGHT)...VALVE, THROTTLE 2 (OPT FOR RIGHT)
-
102GU-14112-20-00 ...VALVE, THROTTLE 1 (OPT FOR LEFT)...VALVE, THROTTLE 1 (OPT FOR LEFT)
-
11137-14143-40-00 ...JET, MAIN (#200) (OPT)...JET, MAIN (#200) (OPT)
-
11137-14143-44-00 ...JET, MAIN (#220) (OPT)...JET, MAIN (#220) (OPT)
-
11137-14143-48-00 ...JET, MAIN (#240) (OPT)...JET, MAIN (#240) (OPT)
-
11137-14143-38-00 ...JET, MAIN (#190) (OPT)...JET, MAIN (#190) (OPT)
-
12137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
134L0-14141-38-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
142GU-14196-00-00 ...PIPE...PIPE
-
1598511-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1692990-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
174L0-14197-00-00 ...PIPE...PIPE
-
182GU-14153-00-00 ...RING...RING
-
192GU-14131-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
20239-14172-16-00 ...PILOT JET, AIR (1.6)...PILOT JET, AIR (1.6)
-
2112R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2210W-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
232GU-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
24500-14146-00-00 ...PLATE...PLATE
-
252GU-14171-00-00 ...PLUNGER, STARTER (LEFT)...PLUNGER, STARTER (LEFT)
-
26558-14147-00-00 ...O-RING...O-RING
-
272GU-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
2898501-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2992901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
302GU-14243-00-00 ...PLATE (OPT FOR LEFT)...PLATE (OPT FOR LEFT)
-
302GU-14146-00-00 ...PLATE (OPT FOR RIGHT)...PLATE (OPT FOR RIGHT)
-
312GU-14952-00-00 ...WASHER...WASHER
-
323GG-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
332GU-2633K-00-00 WIRE, INNER 1WIRE, INNER 1
-
3498507-03010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3592907-03100-00 WASHER, SPRINGWASHER, SPRING
-
3692907-03600-00 WASHERWASHER
-
374X7-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3848H-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3990413-08009-00 WAY 3WAY 3
-
4090467-10008-00 CLIPCLIP
-
4190467-11106-00 CLIPCLIP
-
4290445-09012-00 HOSE (L70)HOSE (L70)
-
4390460-49058-00 CLAMP, HOSECLAMP, HOSE
