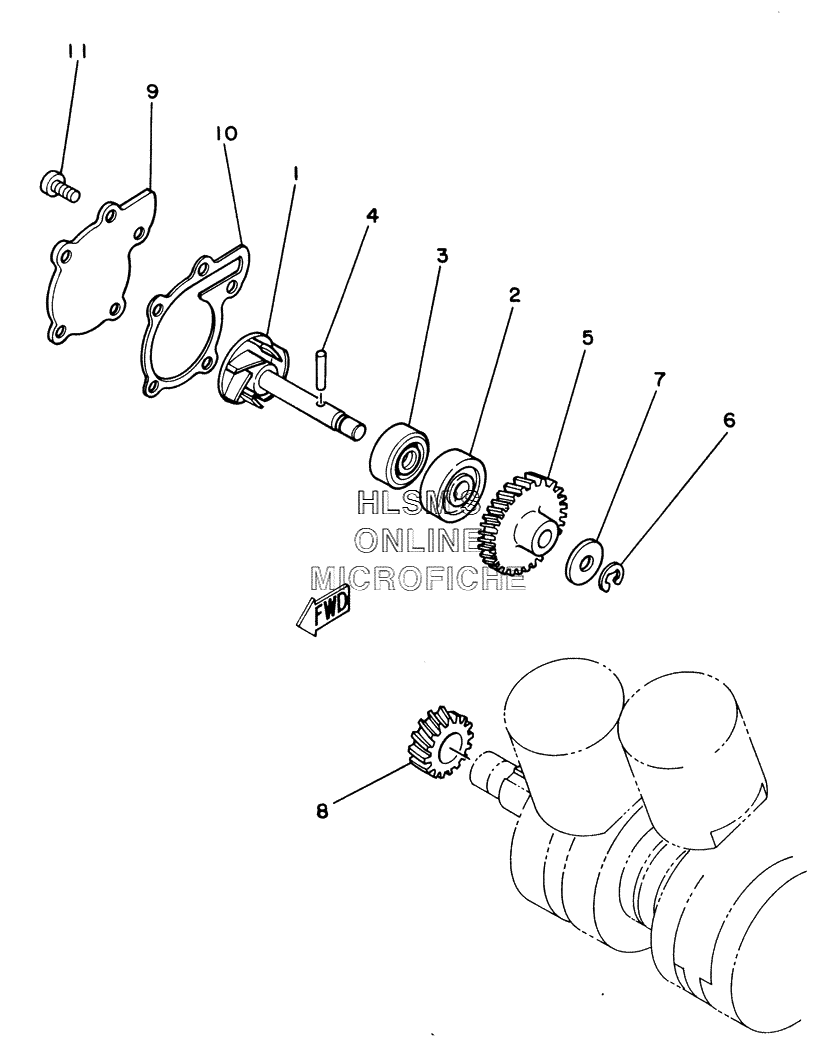

WATER PUMP ASSY для Yamaha BANSHEE LIMITED EDITION YFZ350LES - 2004 года выпуска
-
№АртикулНазвание
-
14L0-12450-01-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
293306-30002-00 BEARINGBEARING
-
393103-10147-00 OIL SEALOIL SEAL
-
493603-22028-00 PIN, DOWELPIN, DOWEL
-
54L0-12459-00-00 GEAR, IMPELLER SHAFTGEAR, IMPELLER SHAFT
-
699001-07600-00 CIRCLIPCIRCLIP
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
84L0-12436-00-00 GEAR, DRIVEGEAR, DRIVE
-
94L0-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
103GG-12428-01-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
1198507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
