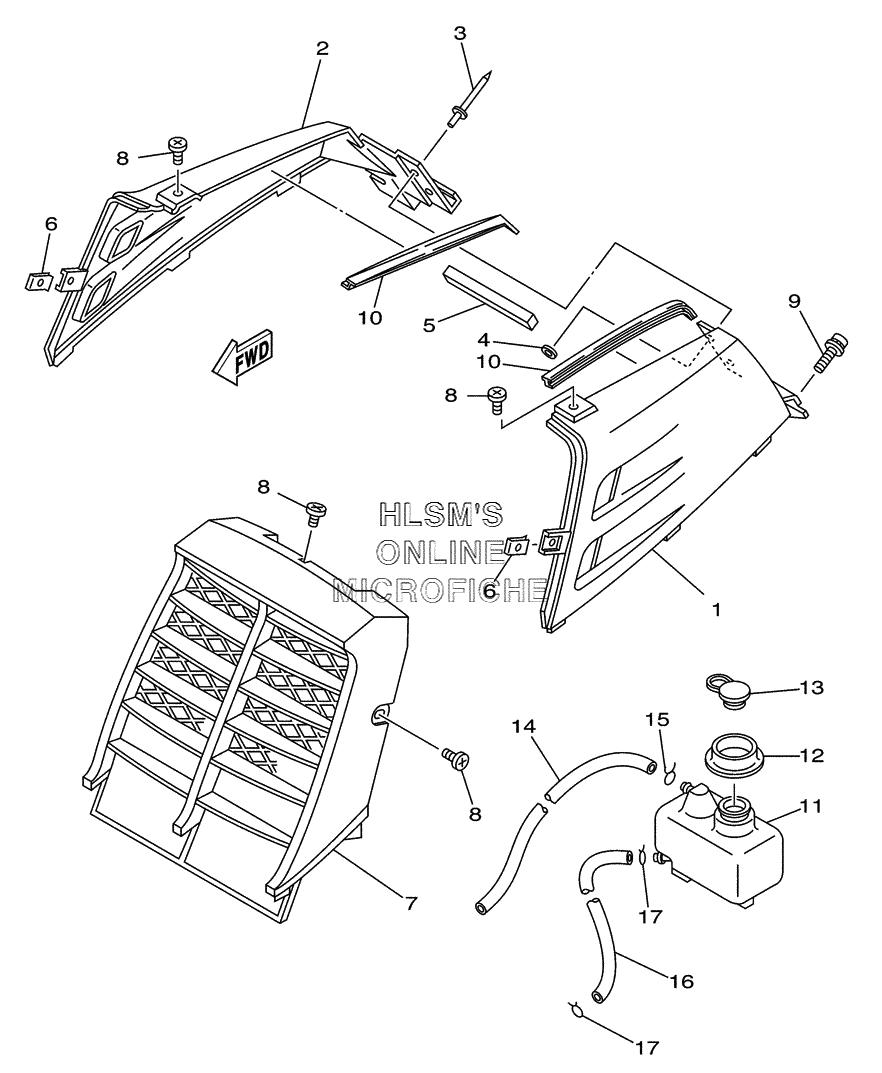

SIDE COVER для Yamaha BANSHEE LIMITED EDITION YFZ350LES - 2004 года выпуска
-
№АртикулНазвание
-
15FK-21711-C0-00 COVER, SIDE 1COVER, SIDE 1
-
25FK-21721-C0-00 COVER, SIDE 2COVER, SIDE 2
-
390267-40076-00 RIVET, BLINDRIVET, BLIND
-
490201-047A2-00 WASHER, PLATEWASHER, PLATE
-
52GU-21747-00-00 DAMPERDAMPER
-
690183-05024-00 NUT, SPRINGNUT, SPRING
-
75FK-23391-C0-00 PANEL, FRONTPANEL, FRONT
-
890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
990159-06082-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
102GU-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
112GU-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1290480-48399-00 GROMMETGROMMET
-
1310V-21875-00-00 CAPCAP
-
1490445-084J0-00 HOSE (L1500)HOSE (L1500)
-
1590467-08075-00 CLIPCLIP
-
1690445-090F7-00 HOSE (L1150)HOSE (L1150)
-
1790467-08003-00 CLIPCLIP
