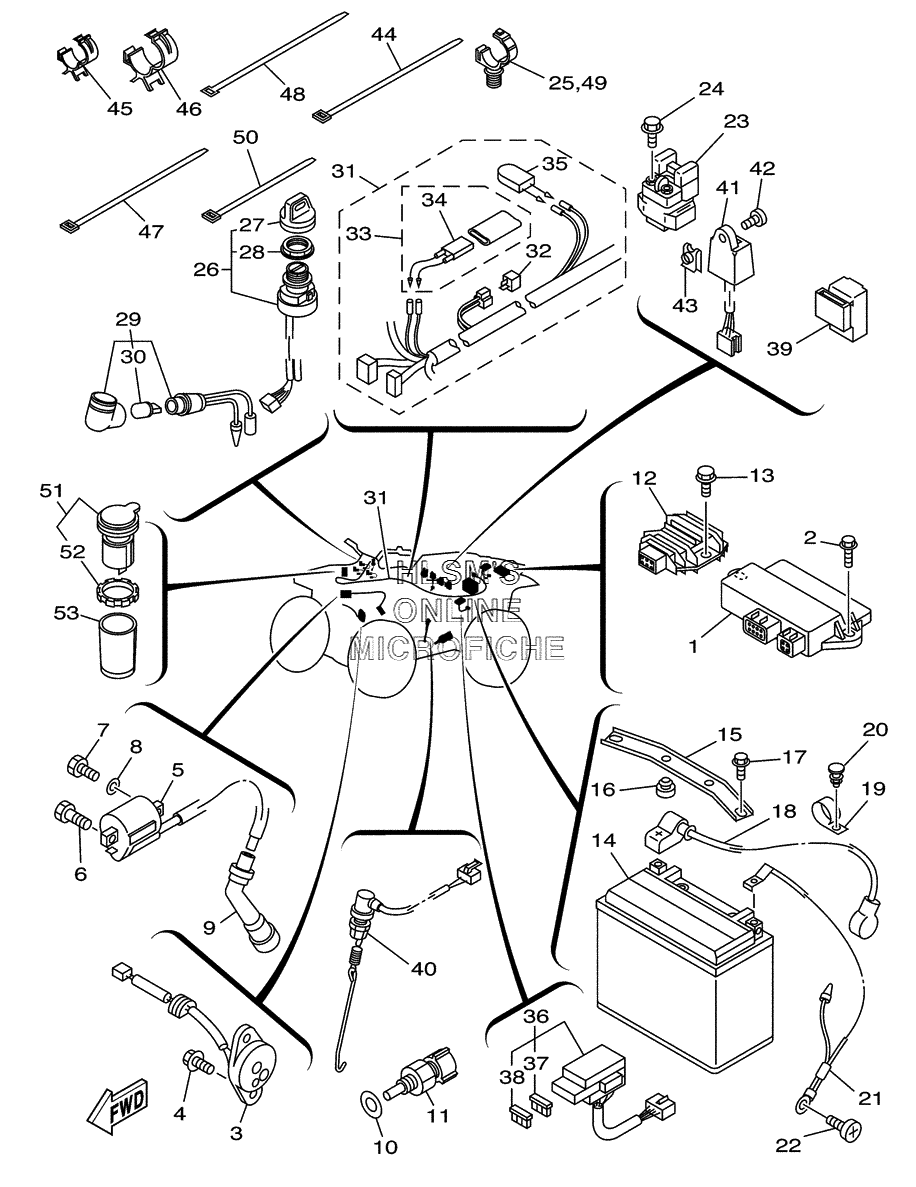

ELECTRICAL для Yamaha BIG BEAR 400 YFM400NS - 2004 года выпуска
-
№АртикулНазвание
-
15FU-85540-20-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34KB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55FU-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
690109-06873-00 BOLTBOLT
-
797007-06020-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
9371-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1090201-12172-00 WASHER, PLATEWASHER, PLATE
-
114GB-83591-10-00 THERMO UNITTHERMO UNIT
-
125GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
145FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
155FU-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
1622W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1795807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1990464-12801-00 CLAMPCLAMP
-
2090338-05829-00 PLUGPLUG
-
215FU-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
229770P-60416-00 SCREW, TAPPINGSCREW, TAPPING
-
234SV-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
249502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2590464-12830-00 CLAMPCLAMP
-
264SH-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
273HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
283HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
294KB-83530-30-00 PILOT LIGHT ASSY (RED)PILOT LIGHT ASSY (RED)
-
305GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
315GW-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
323WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
334GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
344GB-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
355FU-82560-10-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
365FU-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
3742X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
3836Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
3929U-81950-93-00 RELAY ASSYRELAY ASSY
-
405FU-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
414SH-86510-10-00 MOTOR CONTROL UNIT ASSYMOTOR CONTROL UNIT ASSY
-
4298907-06016-00 SCREW, BINDSCREW, BIND
-
4390183-06053-00 NUT, SPRINGNUT, SPRING
-
4490464-40825-00 CLAMPCLAMP
-
4590464-20835-00 CLAMPCLAMP
-
4690464-25843-00 CLAMPCLAMP
-
4790464-32800-00 CLAMPCLAMP
-
4890464-48837-00 CLAMPCLAMP
-
4990464-12830-00 CLAMPCLAMP
-
5090464-31827-00 CLAMPCLAMP
-
515FU-H1920-00-00 TERMINAL ASSYTERMINAL ASSY
-
525FU-H191B-00-00 ...NUT...NUT
-
535FU-H2599-00-00 COVER, CONNECTERCOVER, CONNECTER
