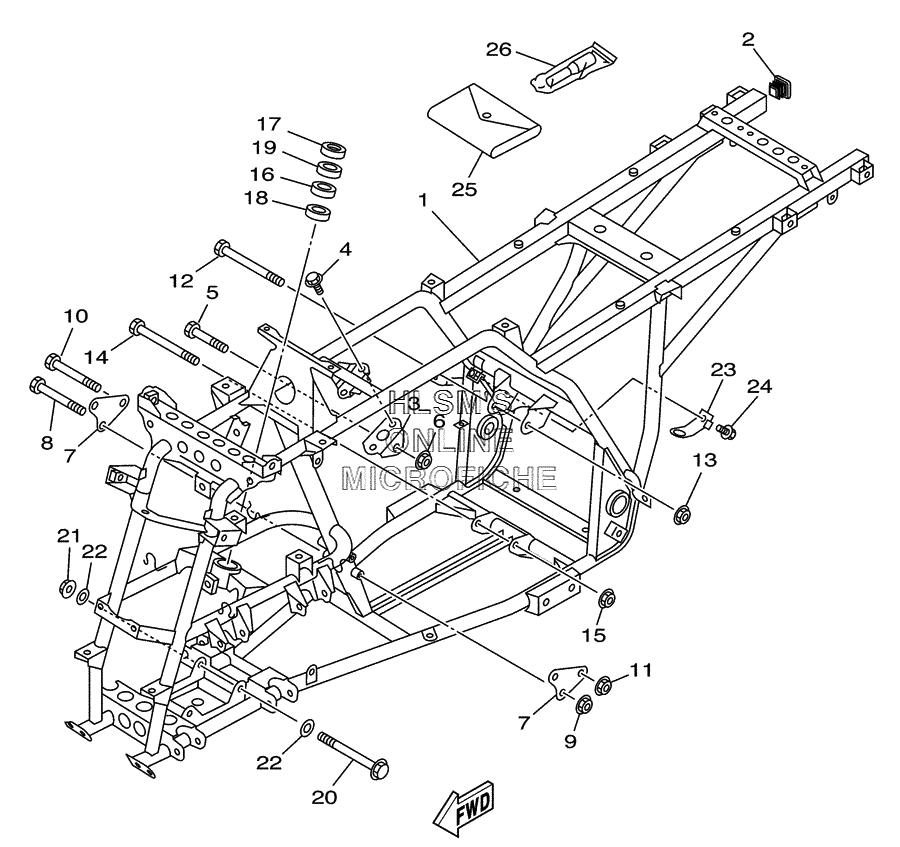

FRAME для Yamaha BIG BEAR 400 YFM400NS - 2004 года выпуска
-
№АртикулНазвание
-
15FU-F1110-10-00 FRAME COMP.FRAME COMP.
-
25FU-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
35FU-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
49581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
59581P-08055-00 BOLT, FLANGEBOLT, FLANGE
-
69560P-08200-00 NUTNUT
-
75FU-F1316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
89581P-08085-00 BOLT, FLANGEBOLT, FLANGE
-
99560P-08200-00 NUTNUT
-
1090105-108A7-00 BOLT, FLANGEBOLT, FLANGE
-
1195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1290105-108A8-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1490105-108A8-00 BOLT, FLANGEBOLT, FLANGE
-
1595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1693306-203YB-00 BEARINGBEARING
-
1793102-25081-00 OIL SEALOIL SEAL
-
1893102-25099-00 OIL SEALOIL SEAL
-
192GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2090105-108A9-00 BOLT, FLANGEBOLT, FLANGE
-
2195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2290201-101J1-00 WASHER, PLATEWASHER, PLATE
-
235FU-F1441-10-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
249582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
255ND-F8100-00-00 TOOL KITTOOL KIT
-
261NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
