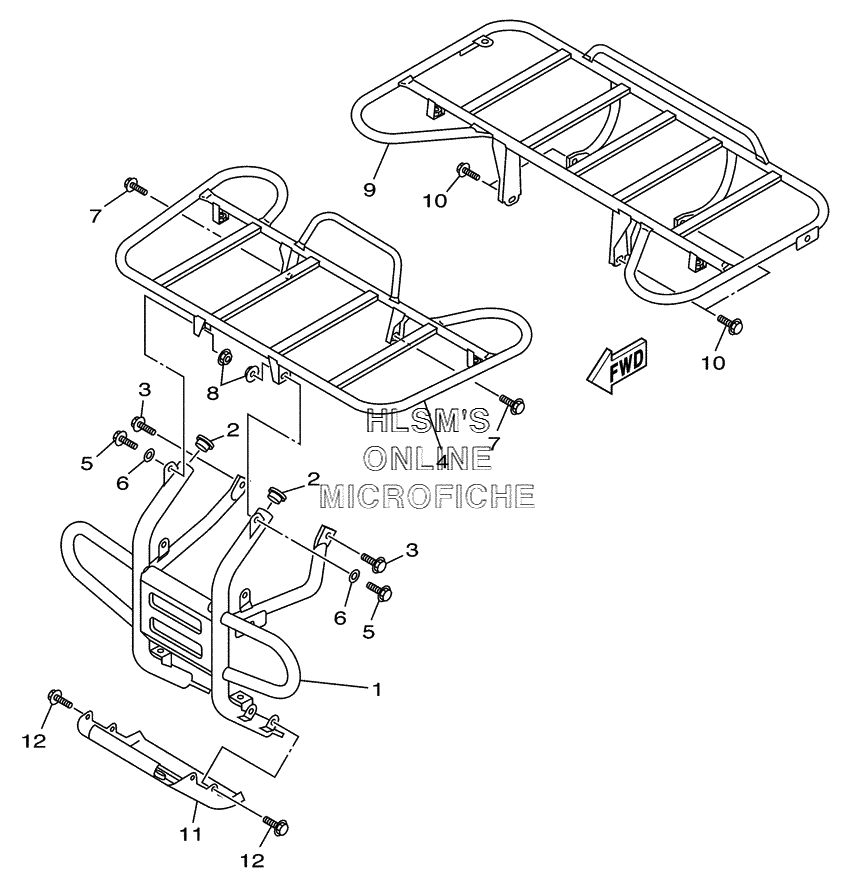

RACK AND BUMPER для Yamaha BIG BEAR 400 YFM400NS - 2004 года выпуска
-
№АртикулНазвание
-
15FU-F845N-20-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25FU-F8415-00-00 DAMPER 1DAMPER 1
-
39581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
45FU-F4841-30-00 CARRIER, FRONTCARRIER, FRONT
-
59582P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
690201-068R3-00 WASHER, PLATEWASHER, PLATE
-
79581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
95FU-F4842-20-00 CARRIER, REARCARRIER, REAR
-
109581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
115FU-F842M-10-00 COVER 1COVER 1
-
1290119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
