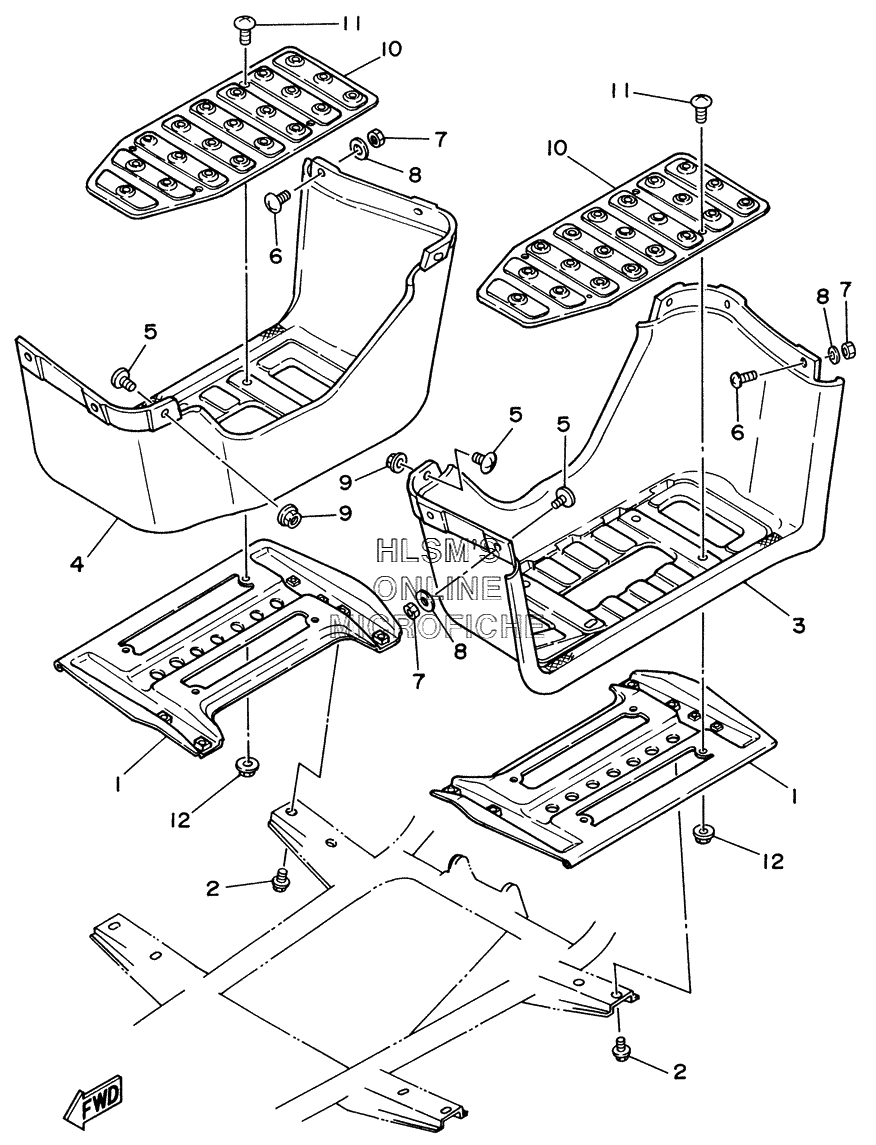

FOOTREST для Yamaha BREEZE YFA1S - 2004 года выпуска
-
№АртикулНазвание
-
13FA-27411-10-00 FOOTREST 1FOOTREST 1
-
295817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
33FA-27453-30-00 COVER 1COVER 1
-
43FA-27463-30-00 COVER 2COVER 2
-
590154-05005-00 SCREW, BINDINGSCREW, BINDING
-
690154-05052-00 SCREW, BINDINGSCREW, BINDING
-
795707-05300-00 NUT, FLANGENUT, FLANGE
-
890201-05029-00 WASHER, PLATEWASHER, PLATE
-
995707-05600-00 NUT, FLANGENUT, FLANGE
-
103FA-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
1190154-05004-00 SCREW, BINDINGSCREW, BINDING
-
1295707-05600-00 NUT, FLANGENUT, FLANGE
