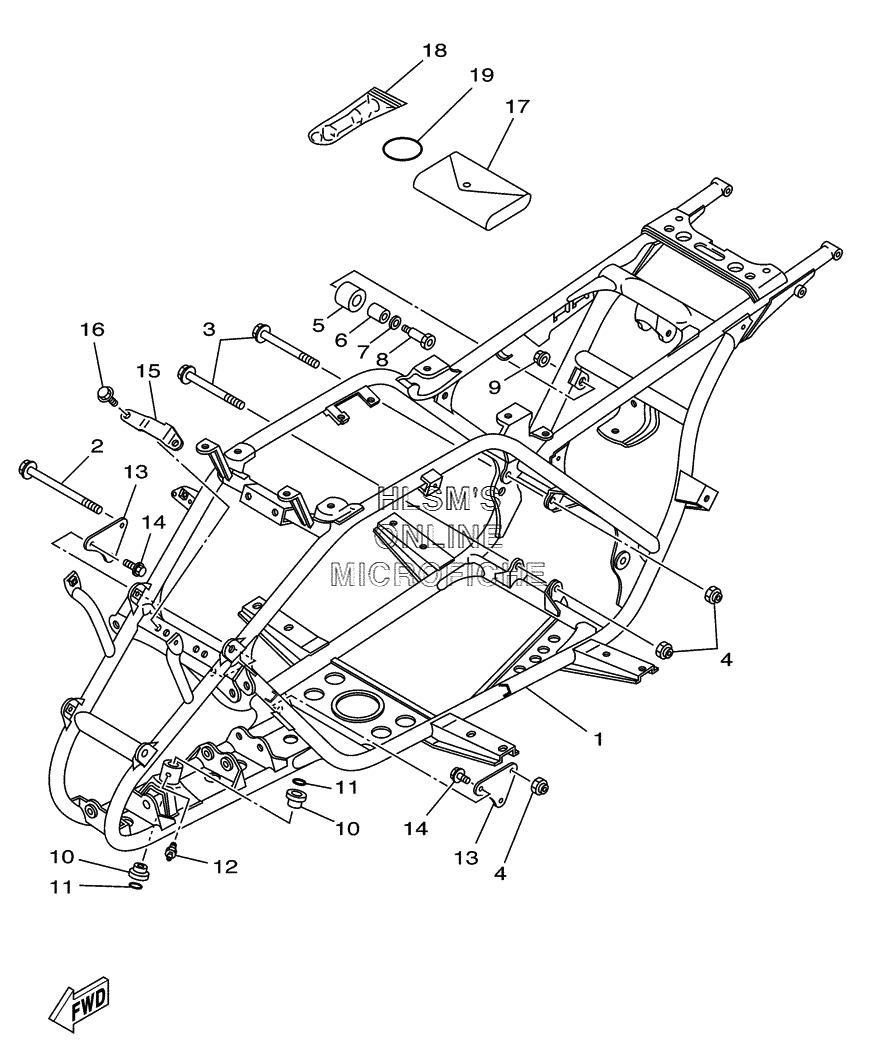

FRAME для Yamaha BREEZE YFA1S - 2004 года выпуска
-
№АртикулНазвание
-
15VJ-21110-00-00 FRAME COMP.FRAME COMP.
-
290105-10183-00 BOLT, FLANGEBOLT, FLANGE
-
390105-10409-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
510V-22178-00-00 TENSIONERTENSIONER
-
64V4-22184-00-00 BUSHBUSH
-
790201-13409-00 WASHER, PLATEWASHER, PLATE
-
890109-08705-00 BOLTBOLT
-
990185-08097-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090381-15040-00 BUSH, SOLIDBUSH, SOLID
-
1193210-15414-00 O-RINGO-RING
-
1293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
133FA-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
1495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
153FA-2115K-00-00 BRACKET 1BRACKET 1
-
1695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
173GB-28100-00-00 TOOL KITTOOL KIT
-
181NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
1993210-41041-00 O-RINGO-RING
