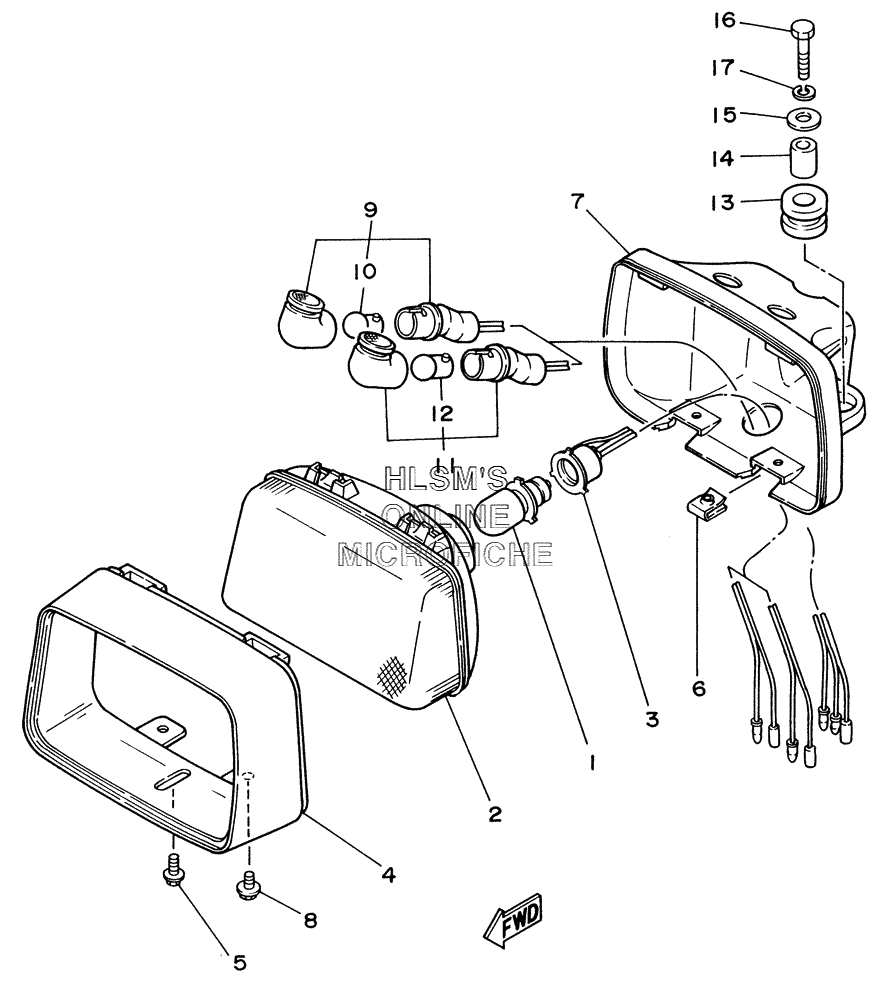

HEADLIGHT для Yamaha BREEZE YFA1S - 2004 года выпуска
-
№АртикулНазвание
-
1102-84314-00-XX BULB (12V-25/25W)BULB (12V-25/25W)
-
23FA-84320-00-00 LENS ASSYLENS ASSY
-
33FA-84312-00-00 HOLDER, SOCKETHOLDER, SOCKET
-
43FA-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
53FA-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
63FA-84326-00-00 NUTNUT
-
73FA-84311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
83FA-84325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
93FA-83530-20-00 PILOT LIGHT ASSY (RED)PILOT LIGHT ASSY (RED)
-
10123-83516-21-XX ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
113FA-83530-30-00 PILOT LIGHT ASSY (GREEN)PILOT LIGHT ASSY (GREEN)
-
12123-83516-21-XX ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
1390480-18290-00 GROMMETGROMMET
-
1490387-06553-00 COLLARCOLLAR
-
1590201-06072-00 WASHER, PLATEWASHER, PLATE
-
1697027-06025-00 BOLTBOLT
-
1792907-06100-00 WASHER, SPRINGWASHER, SPRING
