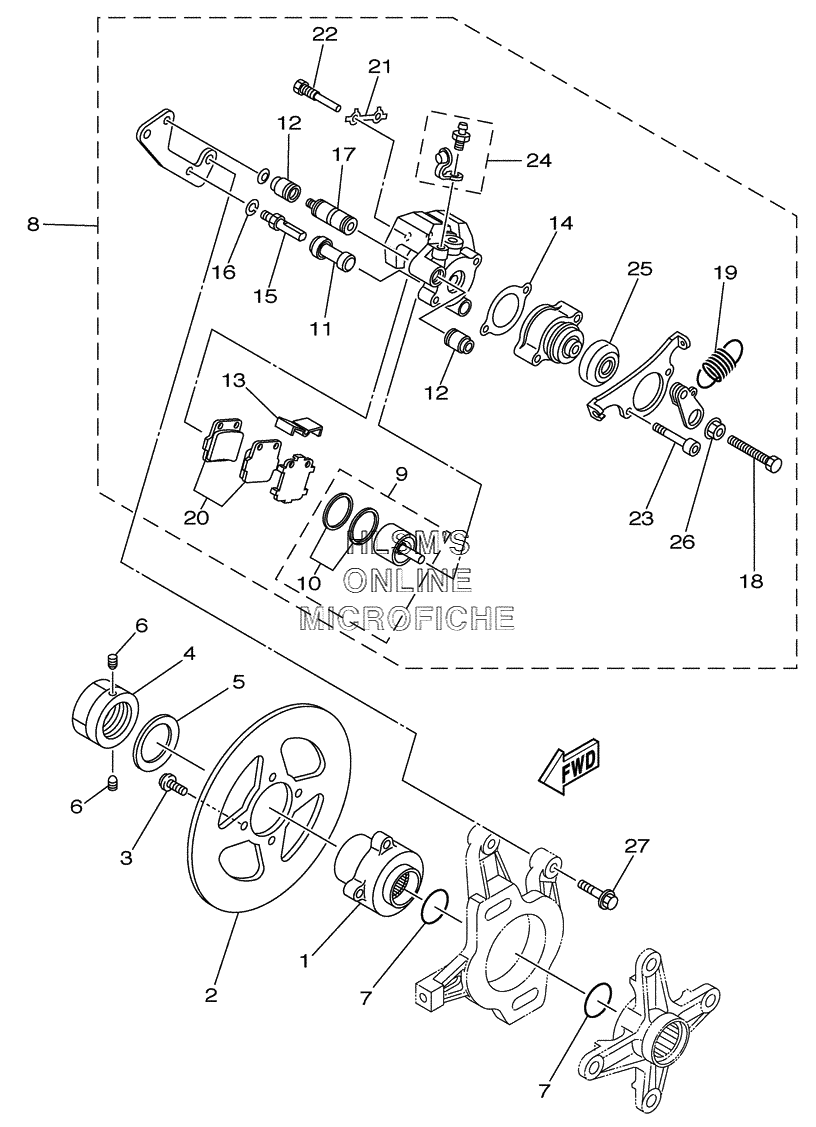

BRAKE - REAR CALIPER для Yamaha YFZ450 LIMITED EDITION YFZ450LES - 2004 года выпуска
-
№АртикулНазвание
-
15TG-25712-00-00 BRACKET, DISCBRACKET, DISC
-
25TG-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
490170-36003-00 NUTNUT
-
590208-37001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
690113-06055-00 BOLT, SETBOLT, SET
-
793210-36769-00 O-RINGO-RING
-
85TG-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
95LP-W0057-50-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
105LP-W0047-50-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
111UY-25937-51-00 ...BOOT 2...BOOT 2
-
121UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
131UY-25919-51-00 ...SUPPORT, PAD...SUPPORT, PAD
-
141UY-25975-51-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
151UY-25926-51-00 ...BOLT...BOLT
-
161UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
171UY-25914-51-00 ...PIN, SLIDE...PIN, SLIDE
-
181UY-25972-51-00 ...ADJUST BOLT...ADJUST BOLT
-
195TG-25977-50-00 ...SPRING, RETURN...SPRING, RETURN
-
205LP-W0046-50-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
211UY-25933-51-00 ...WASHER, PAD PIN...WASHER, PAD PIN
-
221UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
235KE-25821-00-00 ...BOLT 1...BOLT 1
-
241UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
251UY-25974-51-00 ...BOOT...BOOT
-
261UY-25973-51-00 ...NUT...NUT
-
2790105-08440-00 BOLT, FLANGEBOLT, FLANGE
