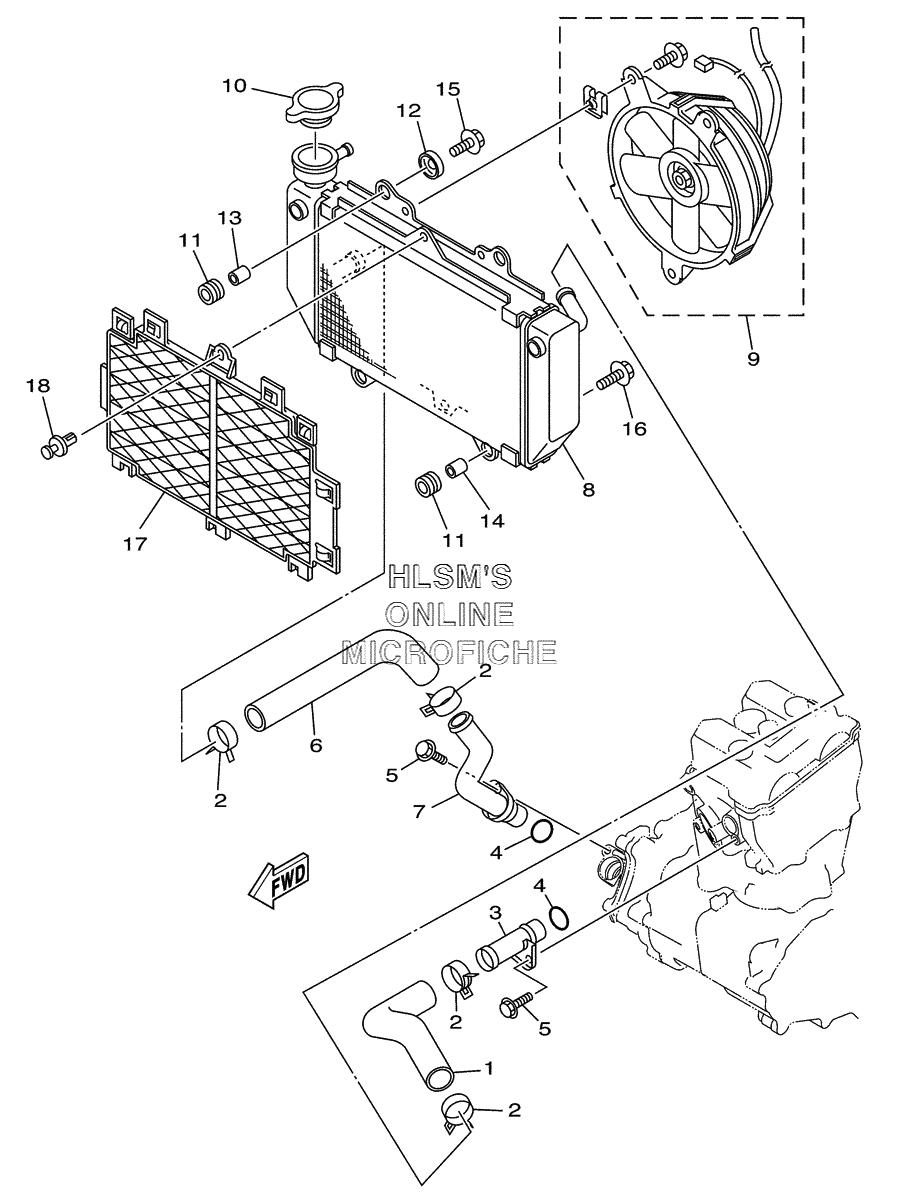

RADIATOR ASSY для Yamaha YFZ450 LIMITED EDITION YFZ450LES - 2004 года выпуска
-
№АртикулНазвание
-
15TG-12576-00-00 HOSE 1HOSE 1
-
290467-23109-00 CLIPCLIP
-
35TG-12481-00-00 PIPE 1PIPE 1
-
493210-16500-00 O-RINGO-RING
-
595027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65TG-12577-00-00 HOSE 2HOSE 2
-
75TG-12482-00-00 PIPE 2PIPE 2
-
85TG-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
95TG-12405-00-00 BLOWER ASSYBLOWER ASSY
-
105SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
1190480-15235-00 GROMMETGROMMET
-
1290209-06174-00 WASHERWASHER
-
1390387-060A7-00 COLLARCOLLAR
-
1490387-0714B-00 COLLARCOLLAR
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
175TG-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
1890269-07076-00 RIVETRIVET
