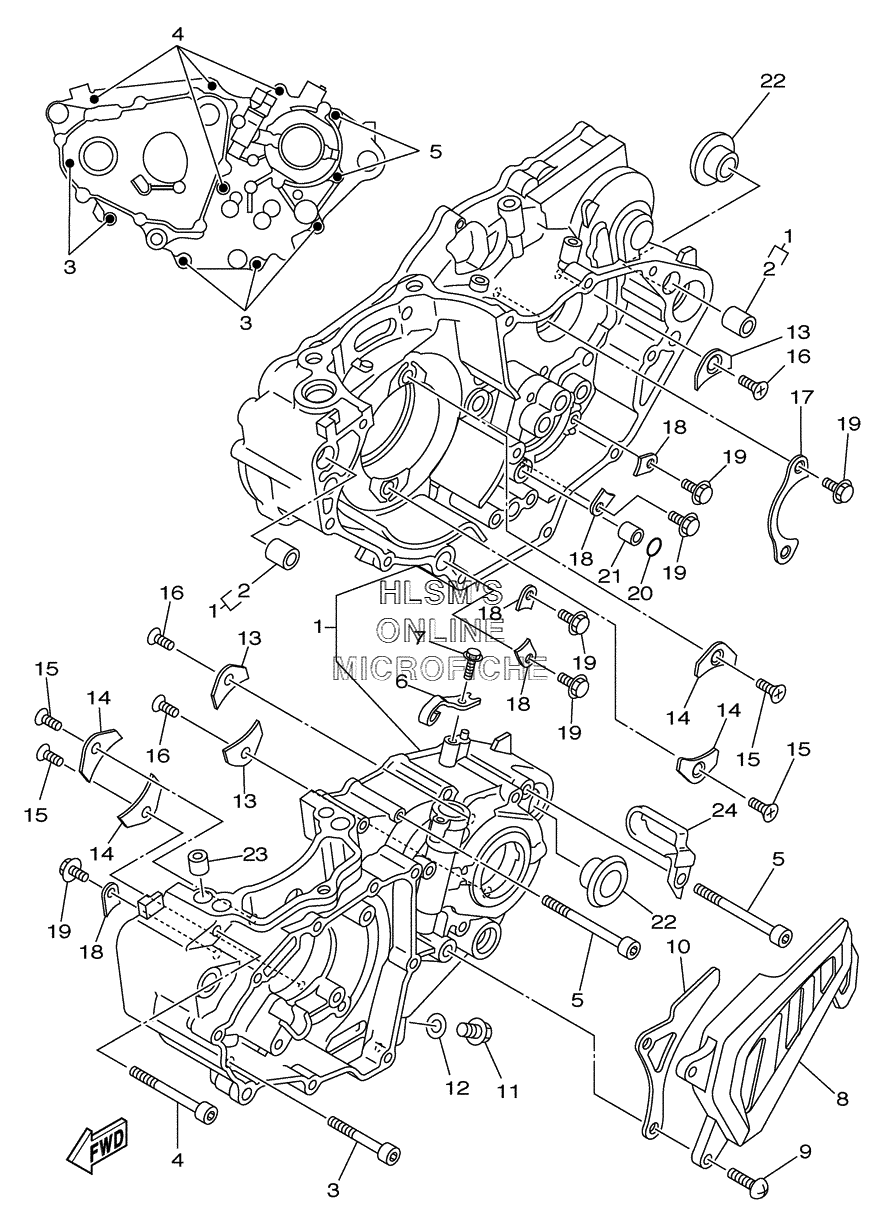

CRANKCASE для Yamaha YFZ450 LIMITED EDITION YFZ450LES - 2004 года выпуска
-
№АртикулНазвание
-
15TG-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-14016-00 ...PIN, DOWEL...PIN, DOWEL
-
391317-06050-00 BOLTBOLT
-
491317-06060-00 BOLTBOLT
-
591317-06075-00 BOLTBOLT
-
65TG-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
795027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
85TA-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
998507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105TA-17466-00-00 GUIDE, CHAINGUIDE, CHAIN
-
1195027-10016-00 BOLT, FLANGEBOLT, FLANGE
-
1290430-10148-00 GASKETGASKET
-
134JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
145BE-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1590149-06126-00 SCREWSCREW
-
1690149-06326-00 SCREWSCREW
-
174L0-17471-00-00 PLATE, COVERPLATE, COVER
-
185DH-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1990105-06553-00 BOLT, FLANGEBOLT, FLANGE
-
2093210-10197-00 O-RINGO-RING
-
2199530-10114-00 PIN, DOWELPIN, DOWEL
-
2290387-164N2-00 COLLARCOLLAR
-
2399530-10116-00 PIN, DOWELPIN, DOWEL
-
2490461-10003-00 CLAMPCLAMP
