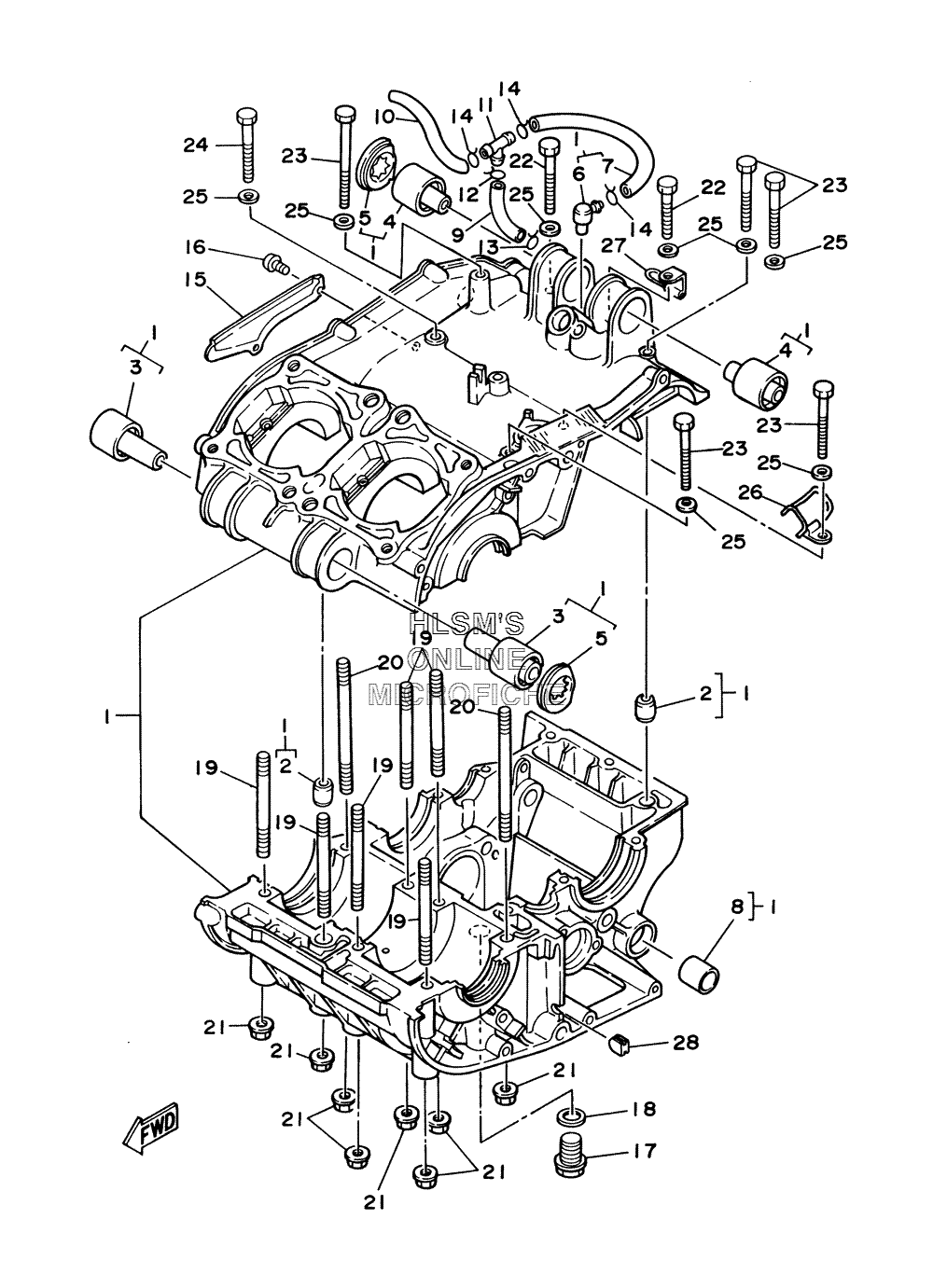

CRANKCASE для Yamaha BANSHEE SE YFZ350SET - 2005 года выпуска
-
№АртикулНазвание
-
12GU-15100-01-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299510-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
32GU-15316-00-00 ...DAMPER, ENGINE MOUNT 1...DAMPER, ENGINE MOUNT 1
-
42GU-15326-00-00 ...DAMPER, ENGINE MOUNT 2...DAMPER, ENGINE MOUNT 2
-
52GU-15328-00-00 ...SPACER, DAMPER...SPACER, DAMPER
-
6120-15371-00-00 ...BREATHER...BREATHER
-
790445-09109-00 ...HOSE...HOSE
-
890383-12022-00 ...BUSH, FORMED...BUSH, FORMED
-
990445-081F1-00 HOSEHOSE
-
1090445-09123-00 HOSEHOSE
-
1190413-05014-00 WAY 3WAY 3
-
1290467-08021-00 CLIP, SCISSORCLIP, SCISSOR
-
1390467-07093-00 CLIP, SCISSORCLIP, SCISSOR
-
1490467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
15278-15492-01-00 COVERCOVER
-
1698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1790340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1890430-14043-00 GASKETGASKET
-
1990116-08064-00 BOLT, STUDBOLT, STUD
-
2090116-08232-00 BOLT, STUDBOLT, STUD
-
2195707-08500-00 NUT, FLANGENUT, FLANGE
-
2297017-06045-00 BOLTBOLT
-
2397017-06060-00 BOLTBOLT
-
2497017-06090-00 BOLTBOLT
-
2592907-06200-00 WASHERWASHER
-
2690462-16130-00 CLAMPCLAMP
-
2790465-06094-00 CLAMPCLAMP
-
2890338-06190-00 PLUGPLUG
